PPCM Precision Panel (Continued)
IR Outputs
These connections route IR to the “Room” IR punch-downs. IR “1” sends IR to Room 1,
IR “2” sends IR to Room 2, etc. The IR Output ports of the PPCM connect to the IR Output
ports of the System Controller using mono 3.5mm cables. See Figure 5-3 below.
Use Cat5 to extend the IR signals to emitters connected to PPRM panels located in zones.
IR can also be routed directly to IR controlled devices using emitters or hardwired
connections.

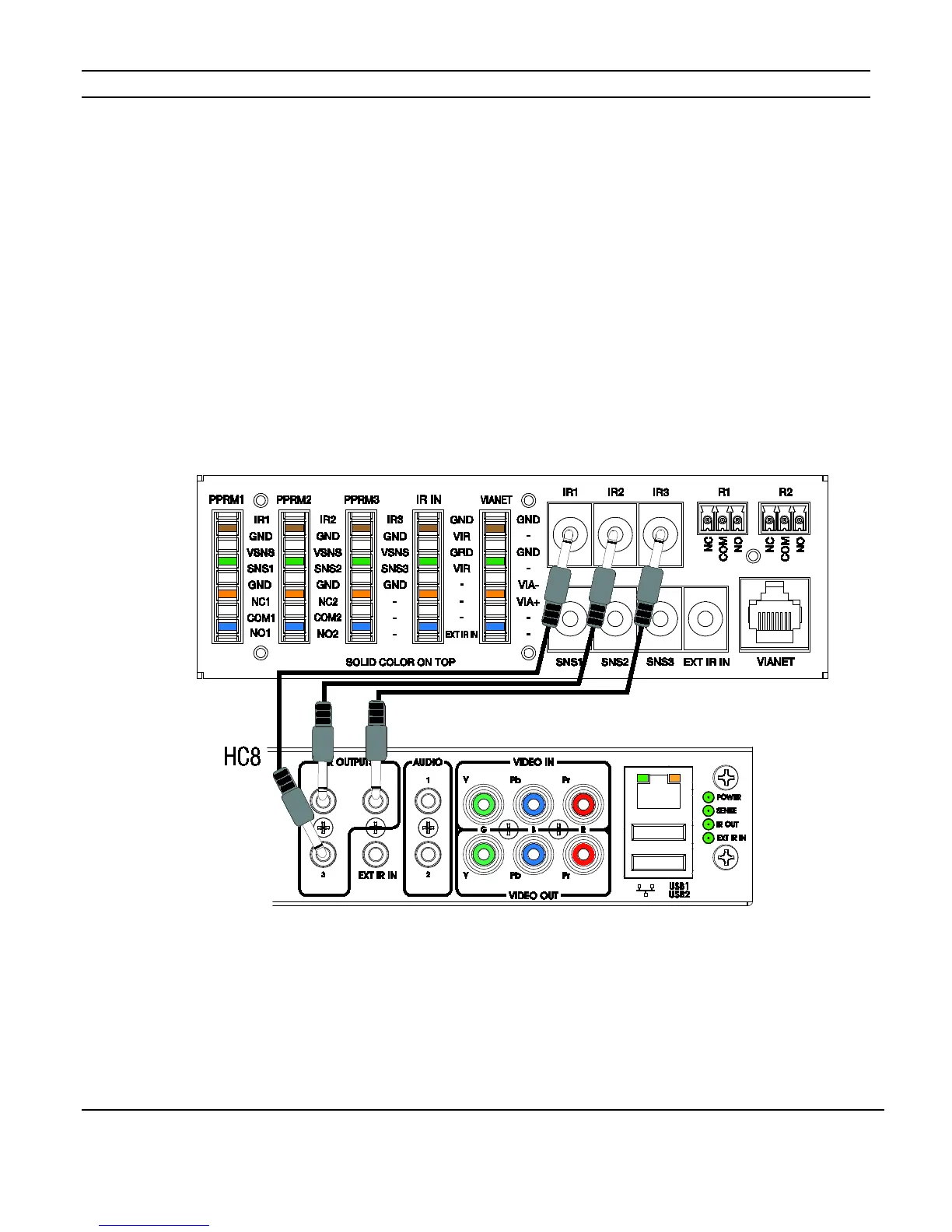

Figure 5-3: 3.5mm IR Connections
