ELAN HC4/HC8 INSTALLATION MANUAL
© ELAN 2010 | All rights reserved.
Page 41
PPIR Precision Panel
The PPIR provides a connection point for IR receivers located in a zone and the RJ-45
connection can be used for zone located serial controlled devices or a network connection,
as needed. The screw down terminals on the reverse of the PPIR provide a connection
point for remotely located IR sensors.
Use Cat5 to connect the “Ext IR IN” punch-down on the rear of the PPIR to the EXT IR IN
connection of the PPCM. Use Cat5 from the “RJ-45” punch-down of the PPIR to a serial
port connection on the HC4/HC8 or network switch. See Figure 5-7.
Optionally, a PPIR may be connected to a PPVN located at the head end as shown in Figure
5-11 on page 45.

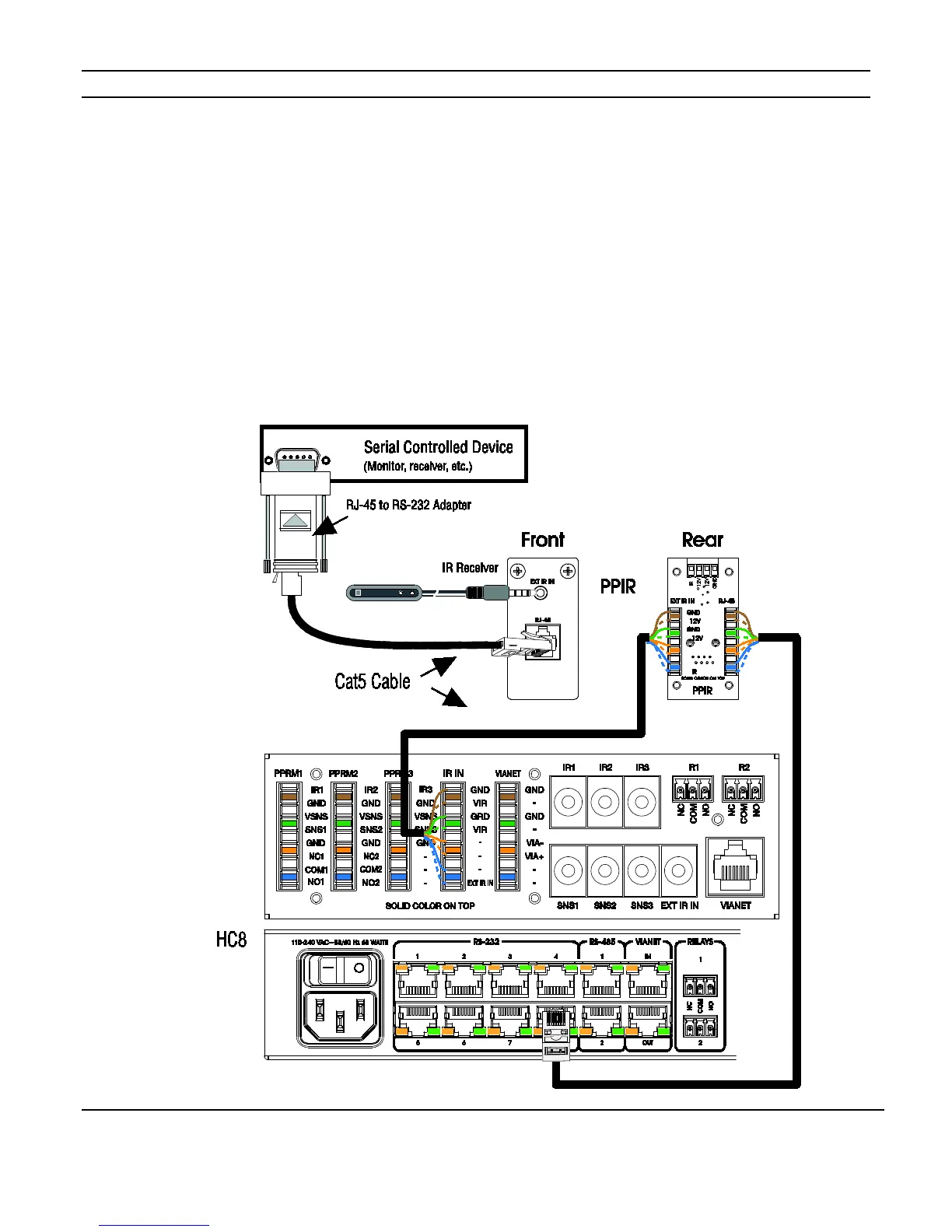

Figure 5-7: PPIR Connection
