PPRM Precision Panel
The PPRM provides connections for IR output, Sense input, Relay output and has an RJ-45
connection that may be used for RS-232 controlled devices or as an Ethernet jack. Figure
5-9 shows a typical application and connections from the PPRM to the PPCM and the
System Controller.

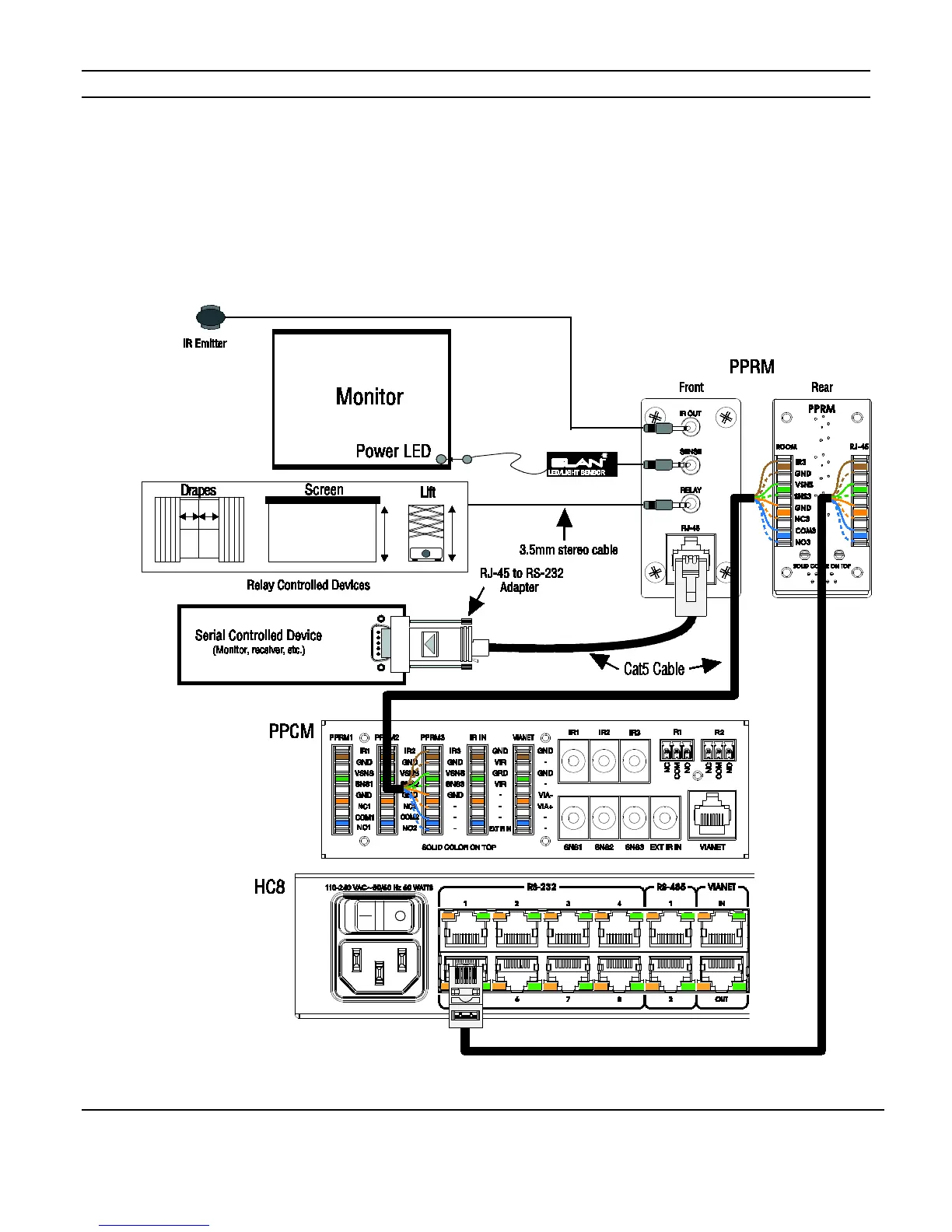

Figure 5-9: PPRM Connections
