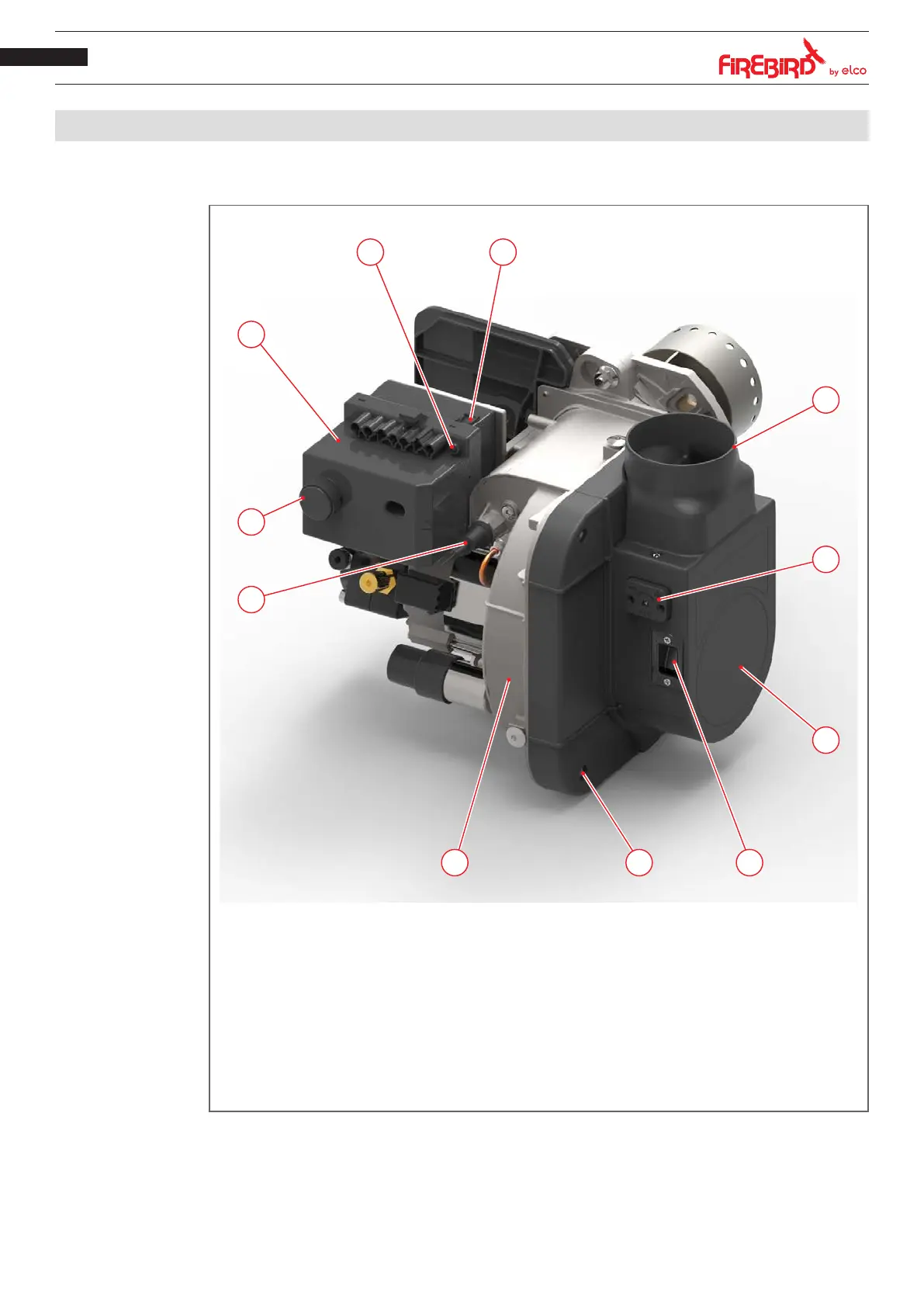

2.4 Structure
2.4.1 Structure of the burner
11
10
5
4
3
78
9
6
21
1 Power indication LED
2 Connection PLUG-IN between equip-
ment and ignition transformer
3 Snorkel
4 Air setting
5 Air intake
6 Air valve indicator
7 Fastening screws for equipment plate
8 Housing for internal rotor
9 PEC
10 Reset button
11 Control box
Fig. 2
