2.5 Control box
The EBR-M1 control box, controls and monitors the forced draught burner. The microprocessor-
controlled program sequence ensures maximum stability of time periods, regardless of uctuations
in the power supply or ambient temperature.
The design of the control box protects it from the effects of ame outs. Whenever the supply
voltage drops below its rated minimum level (170 ± 8 V), the control box shuts down - even in the
absence of a fault signal.
The control box switches itself back on again once the voltage has exceeded the 190 ± 8 V.

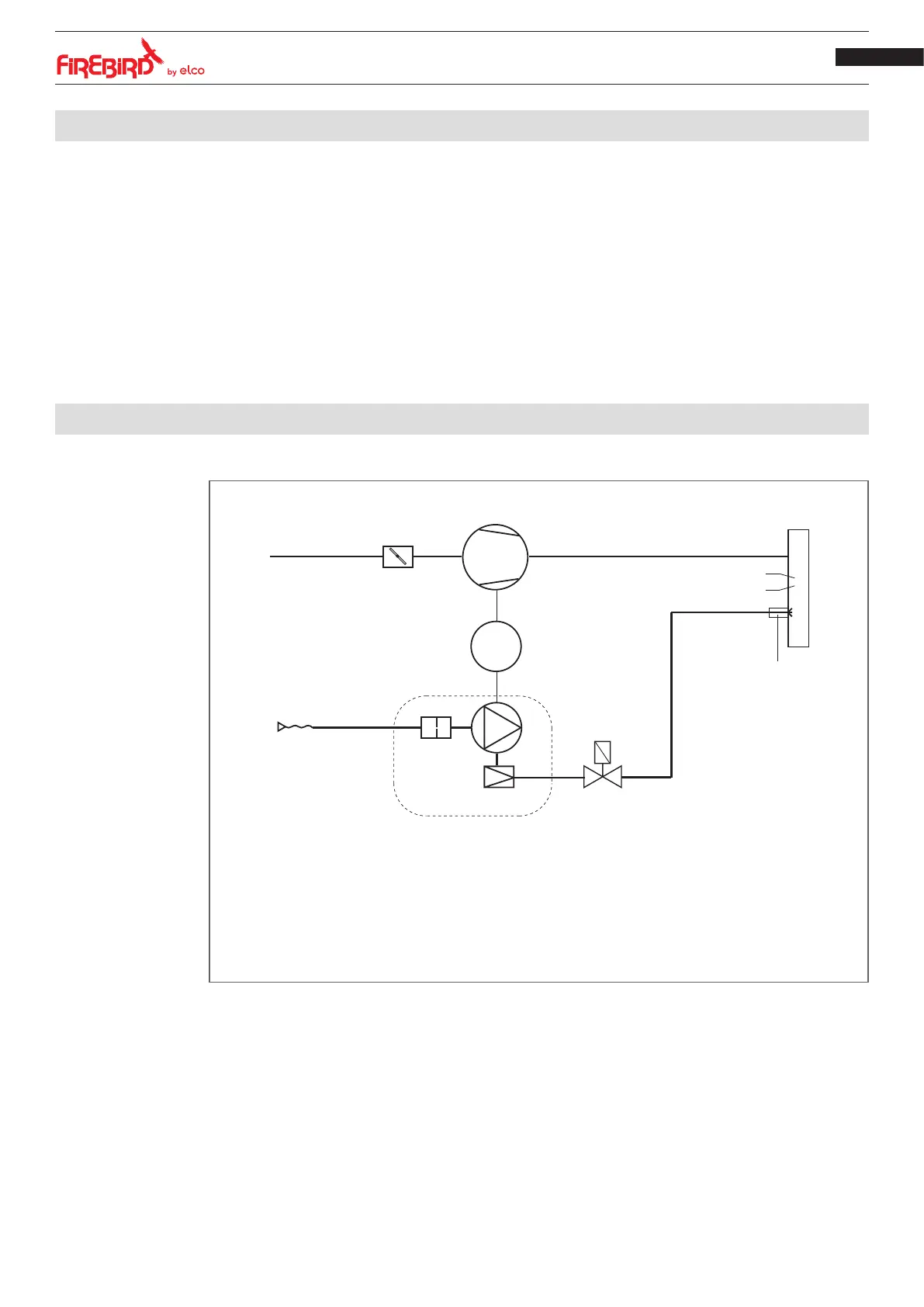

2.6 Operating logic
M
M1
118
103
101
T1
104
102
106
105
Y1
M1 Burner motor
T1 Ignition transformer
Y1 Solenoid valve
101 Fan
102 Oil pump
103 Air ap
104 Oil pressure regulator
105 Flexible oil pipe
106 Filter
118 Nozzle
Fig. 5
2.6.1 Operating function
– If heat is requested by the heating controls, the control box starts the program sequence.
– The motor starts, the ignition transformer is switched on and the preventilation period of 20 s
commences.
– During the preventilation period, the furnace is monitored for ame signals.
– At the end of the preventilation period, the fuel-oil solenoid valve opens and the burner starts.
– The ignition transformer remains switched off while the burner is in operation.
