elco Firebird FB 2 K LN User Manual

INSTALLATION
31/64
EN
4.8.1 Electrical connection to the boiler
Burner
FB 2 K LN leaves the factory congured for connection to a 7 pin electrical cable.
An adaptor cable kit from 7 pins to 5 pins is also supplied and factory mounted.

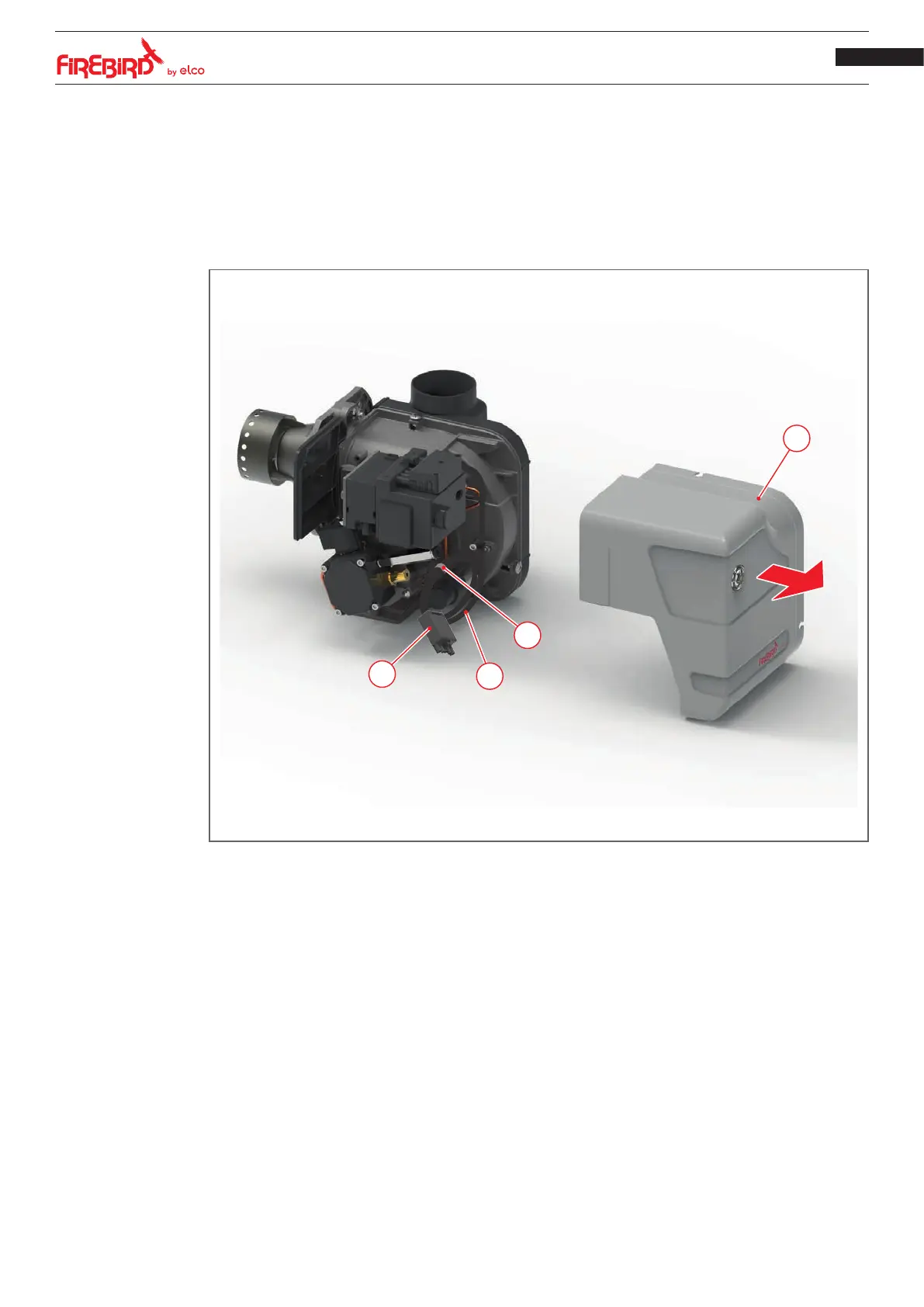

Proceed as follows to connect the burner to the boiler:
– remove the burner cover (1) as described in paragraph “4.6 Removing and tting the burner
cover” on page 24
– cut the band (2) and unwind the cable (3)
1
2
3
4
Fig. 26
– ret the burner cover (1), inverting the procedure above
– connect the 5-pin plug (4) to the boiler.
