elco Firebird FB 2 K LN - Mounting the Burner

INSTALLATION
22/64
EN

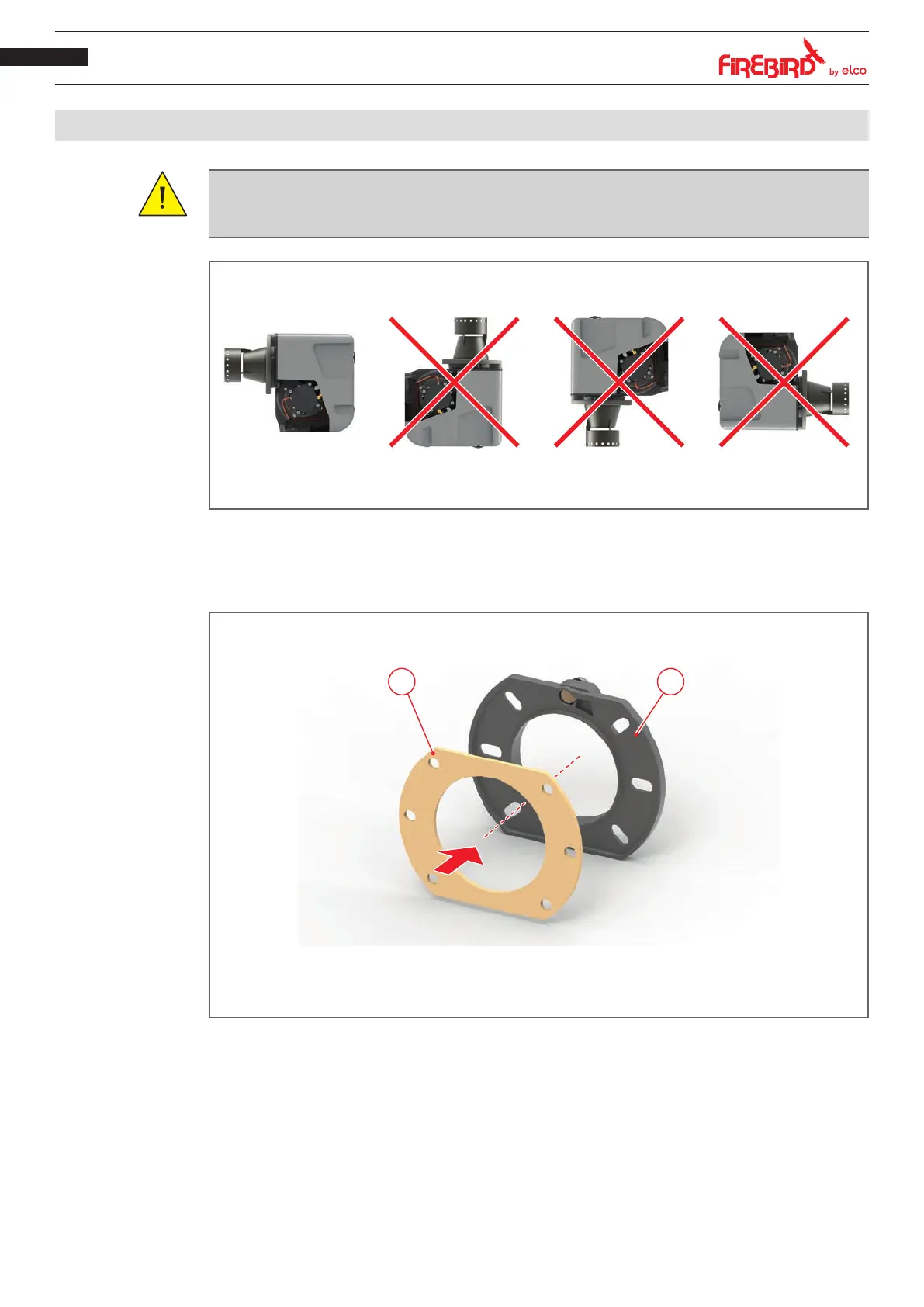

4.5 Burner assembly
CAUTION
Install the burner on the boiler according to the installation position shown in “Fig. 12”.
Installation 2,3 and 4 are forbidden for safety reason.
OK
21 3 4
Fig. 12
The burner is secured to the boiler using the connection ange supplied with the burner.
Follow the instructions below:
– couple the gasket (2) supplied with the connection ange (1).
2 1
Fig. 13
CAUTION
