elco Firebird FB 2 K LN - Hydraulic Diagram; Oil Pump

INSTALLATION
26/64
EN

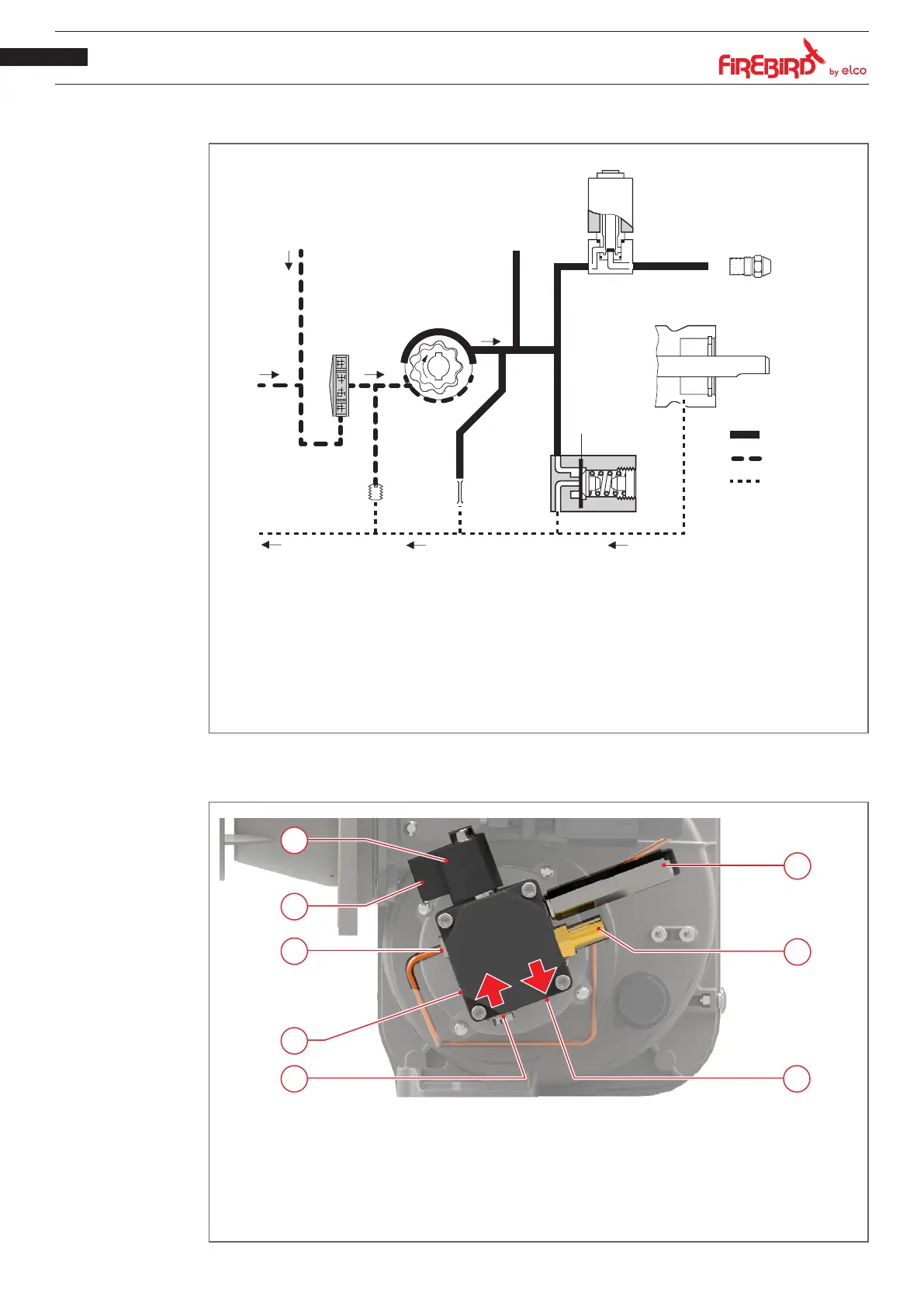

4.7.1 Hydraulic diagram
Suction
Pressure
Return
V
S
R
P
H
C
A O
P1
D
T
NC
E
A Bypass screw
D Diaphragm
E Nozzle outlet
H Filter
NC Valve
O Constriction
P Pressure gauge port
P1 Pressure adjustment
R Return outlet
S Suction inlet
T Pressure regulator
V Vacuum gauge port
Fig. 18
4.7.2 Oil pump
2
4
1
8
7
65
3
1 Fuel-oil solenoid valve
2 Solenoid valve electrical connection
3 Fuel delivery pipe
4 Vacuum port pressure gauge connection
5 Suction connection
6 Return connection
7 Oil pressure regulator
8 Oil pressure gauge connection
Fig. 19
