TECHNICAL DATA
17/64
EN

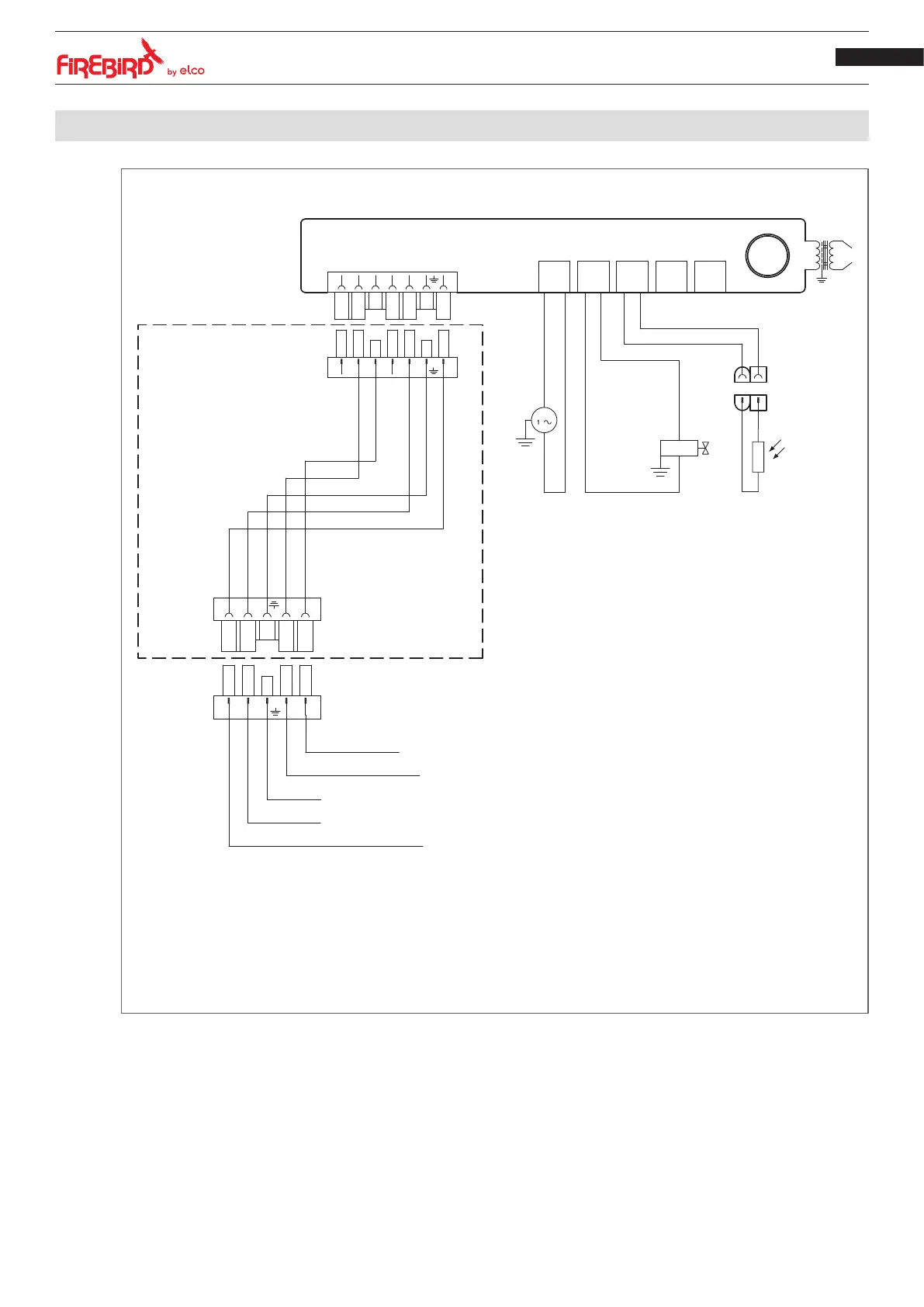

3.3 Electrical diagram
PERMANENT LIVE (230V-50Hz)
CONNECTION KIT
CONTROL BOX EBR-M1 20-30
TV
MV
YVg
B
NEUTRAL
EARTH
BURNER LOCK OUT
SWITCH LIVE
B4 S3 T2 T1 L1N
B4 S3 T2 T1 L1N
M
L3 L2 L1N
L3 L2 L1N
B
Photo-resistor
MV
Fan motor
TV
Ignition transformer
YVg
Oil solenoid valve
Fig. 9
