elco Firebird FB 2 K LN - Routine Burner Servicing

MAINTENANCE
47/64
EN
To facilitate maintenance operations, secure the burner to the boiler by inserting the fastening
screw (11) into the hole (12) on the burner base. Use one of the three square grooves on the
burner base to secure the burner, which should be rotated to the best position for the maintenance
operation to the carried out.
BA C
11
12
B
A C

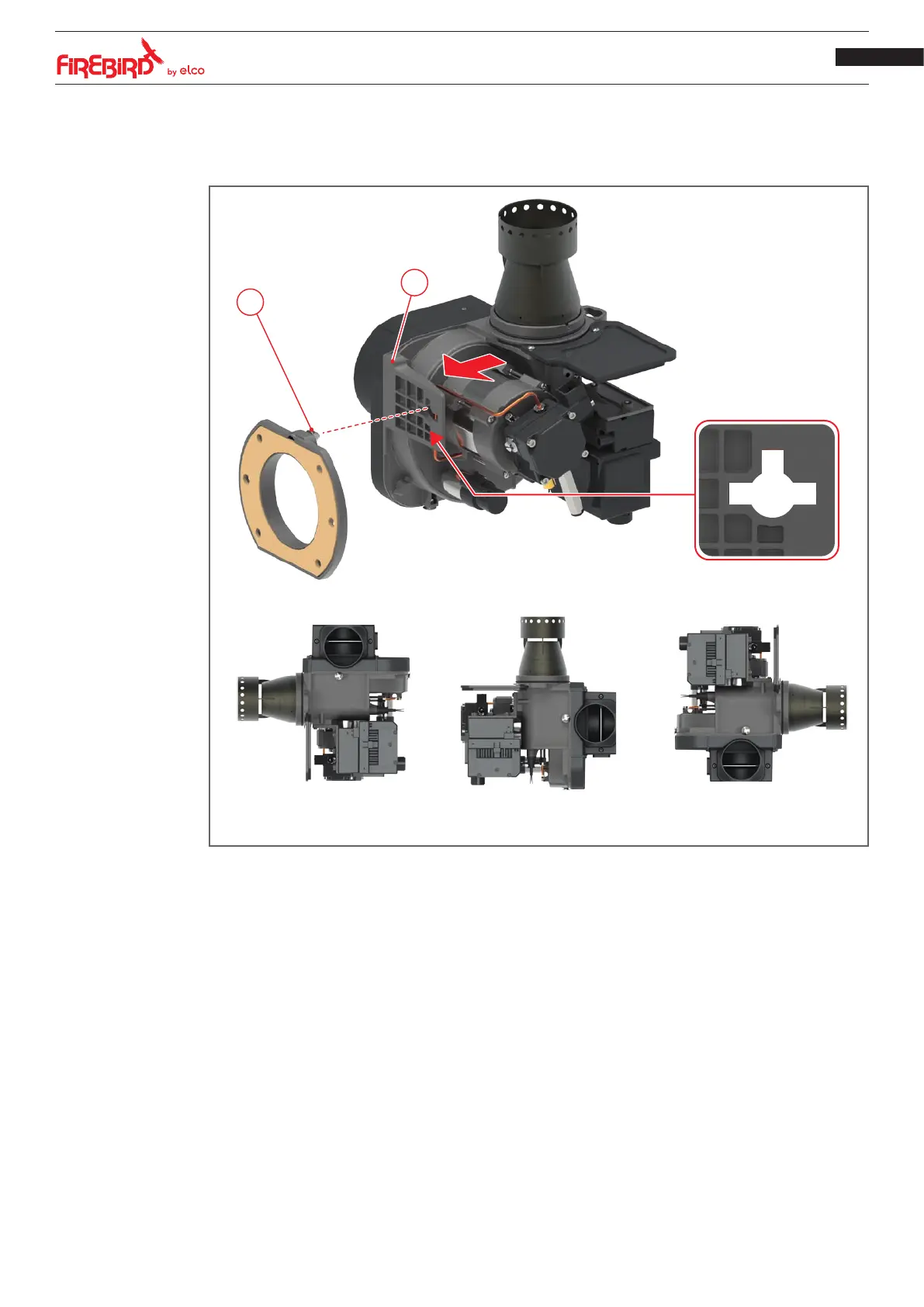

Fig. 43
Position A:
– inspection and cleaning of the internal rotor.
Position B:
– inspection of the combustion head
– inspection and maintenance of the nozzle
– inspection and maintenance of the electrode group.
Position C:
– inspection and maintenance of the pump
– inspection and maintenance of the coil
– inspection and maintenance of the capacitor.
