WORKING WITH VISCOMETER DATA
R

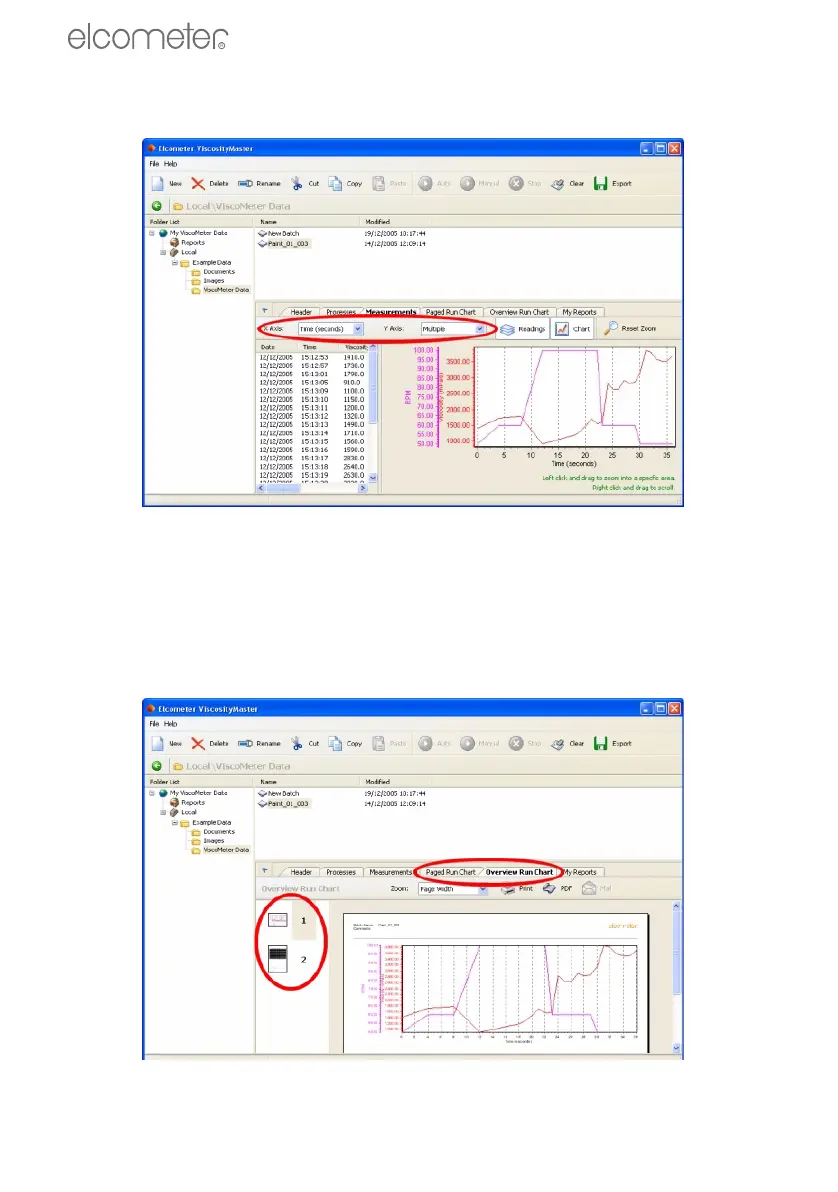

4. Adjust the contents of the chart using the X axis and Y axis drop down lists.
5. To zoom in to an area on the chart, use your mouse to left click and drag. To reset the zoom
click on the Reset Zoom button.
To scroll the chart, use your mouse to right click and drag
To view standard reports for a batch:
1. In the Explorer Window, navigate to the folder where your data is stored.
2. In the List Window, click on the batch or batches you want to view. To select more than one
batch, hold down the ‘Ctrl’ key and click on the batches required.
3. In the Report Window, click on the tab required: Paged Run Chart, Overview Run Chart.
4. Click on a thumbnail of a report on the left side of the Report Window to view an individual
page of the report. Use the Zoom pull-down list to adjust the size of the report on the screen.
2300_TMA_0377_00_01.book Page 42 Thursday, March 29, 2007 1:32 PM
