eldoLED LINEARdrive User Manual

15

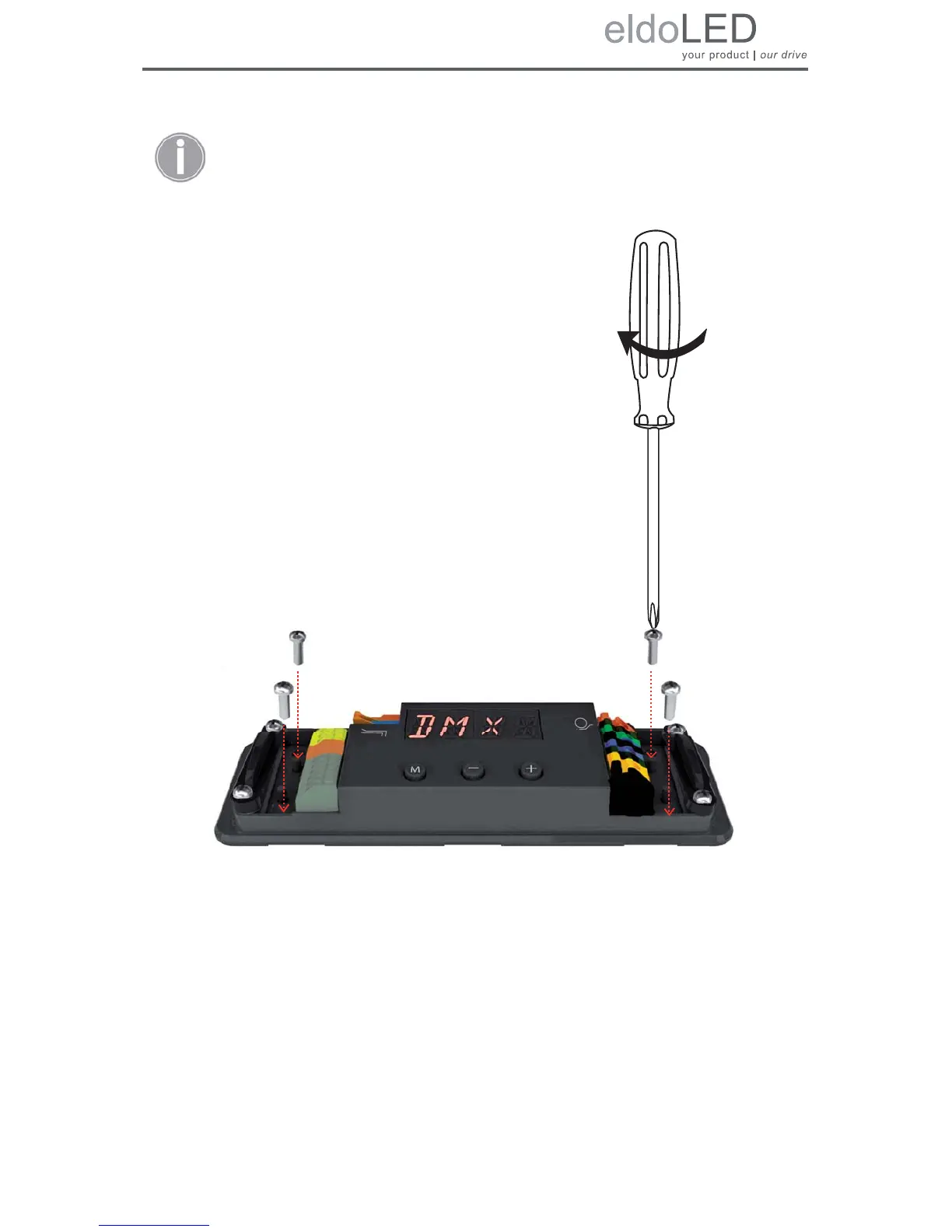

Figure 2.3: Fastening the mounting screws
It is recommended to mount eldoLED products in accordance with the IPC-
A-620 standards.
LINEARdrive 720D
Ext in +
Ext in
DMX in +
DMX in -
DMX in shield
LedSync out +
LedSync out -
LedSync shield
-
DALI out -
DALI out +
DALI in -
DALI in +
TC
Group 1
Group 1 GND
Group 2 -
Group 2 GND
Group 3 -
Group 4 GND
Group 4 -
Group 3 GND
12-28V / 24A Direct voltage controlled LED driver
