3.3.1.5 Connecting LED groups
Connect the leads of your LED groups
• to the LED supply and Group x connectors on the LINEARdrive 180’s right side
• to the Group x and Group x GND connectors on the LINEARdrive 720’s right side

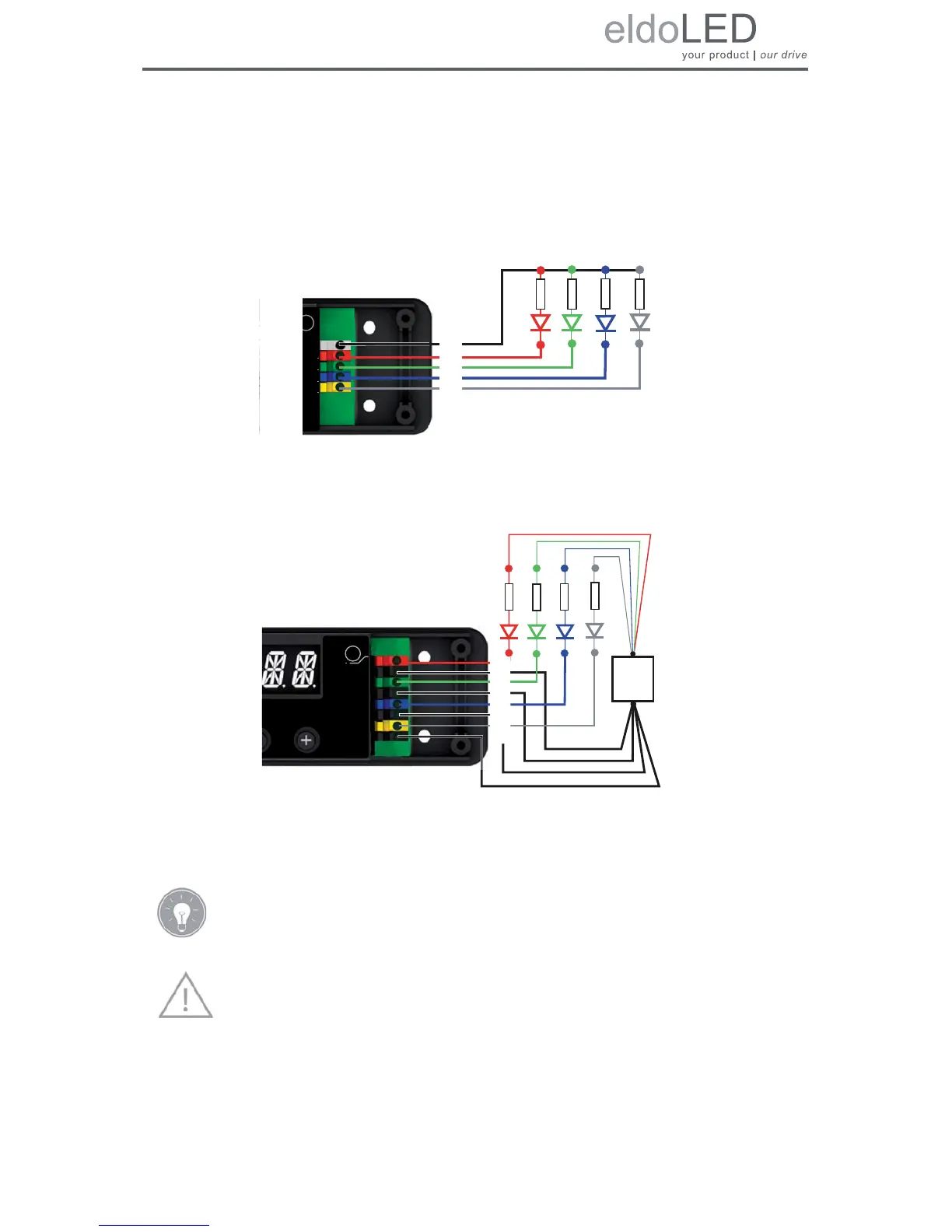

Figure 3.5: Connecting LED groups on LINEARdrive 180
Figure 3.6: Connecting LED groups on LINEARdrive 720
Go to www.ledcode.com to get a free wiring diagram for your LED applica-
tion.
The length of the wires between the LINEARdrive and the light engine (the
LEDs) should not exceed 3m. Beyond this length, the resolution and contrast
rate cannot be guaranteed.
