34
RGBW / RGBA
RGBW: 4 DMX channels are used for four LED groups: one channel for red LEDs, one
for green LEDs, one for blue LEDs and one for white LEDs.
RGBA: 4 DMX channels are used for four LED groups: one channel for red LEDs, one
for green LEDs, one for blue LEDs and one for amber LEDs.

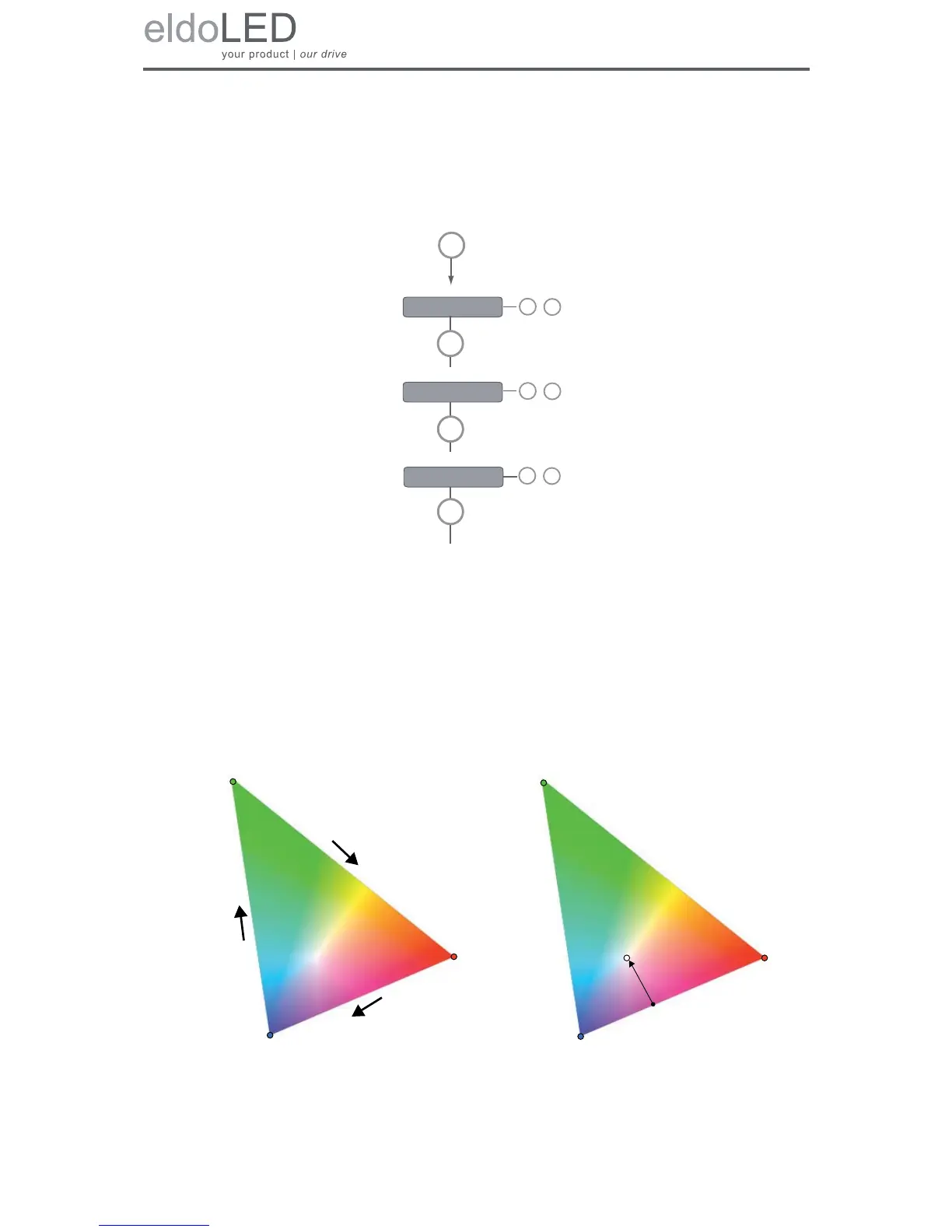

Figure 4.11: COLR settings for RGBW or RGBA
HUE lets you set the colour: By pressing + or - you actually ‘walk’ along the sides of
the colour triangle shown below, which is based on the CIE diagram. By pressing M
you confirm the colour of your choice. Then, WHITE lets you add white or amber (you
‘walk’ towards the white center of the colour triangle). Finally, INT lets you set the in-
tensity of the light output.
Figure 4.12: Setting the colour (left) and adding white or amber (right)
M
HUE
M
HUE
White
WHIT
M
M
+
-
/
Intensity
0...255
INT
display off
+
-
/
0...1535
+
-
/
0...255
Green
Red
Blue
White
Green
Red
Blue
