RGB / RRGB / RGGB
RGB: 3 DMX channels are used for three LED groups: one channel for red LEDs, one
for green LEDs and one for blue LEDs.
RRGB: 3 DMX channels are used for four LED groups: two channels for red LEDs,
one for green LEDs and one for blue LEDs.
RGGB: 3 DMX channels are used for four LED groups: one channel for red LEDs, two
for green LEDs and one for blue LEDs.

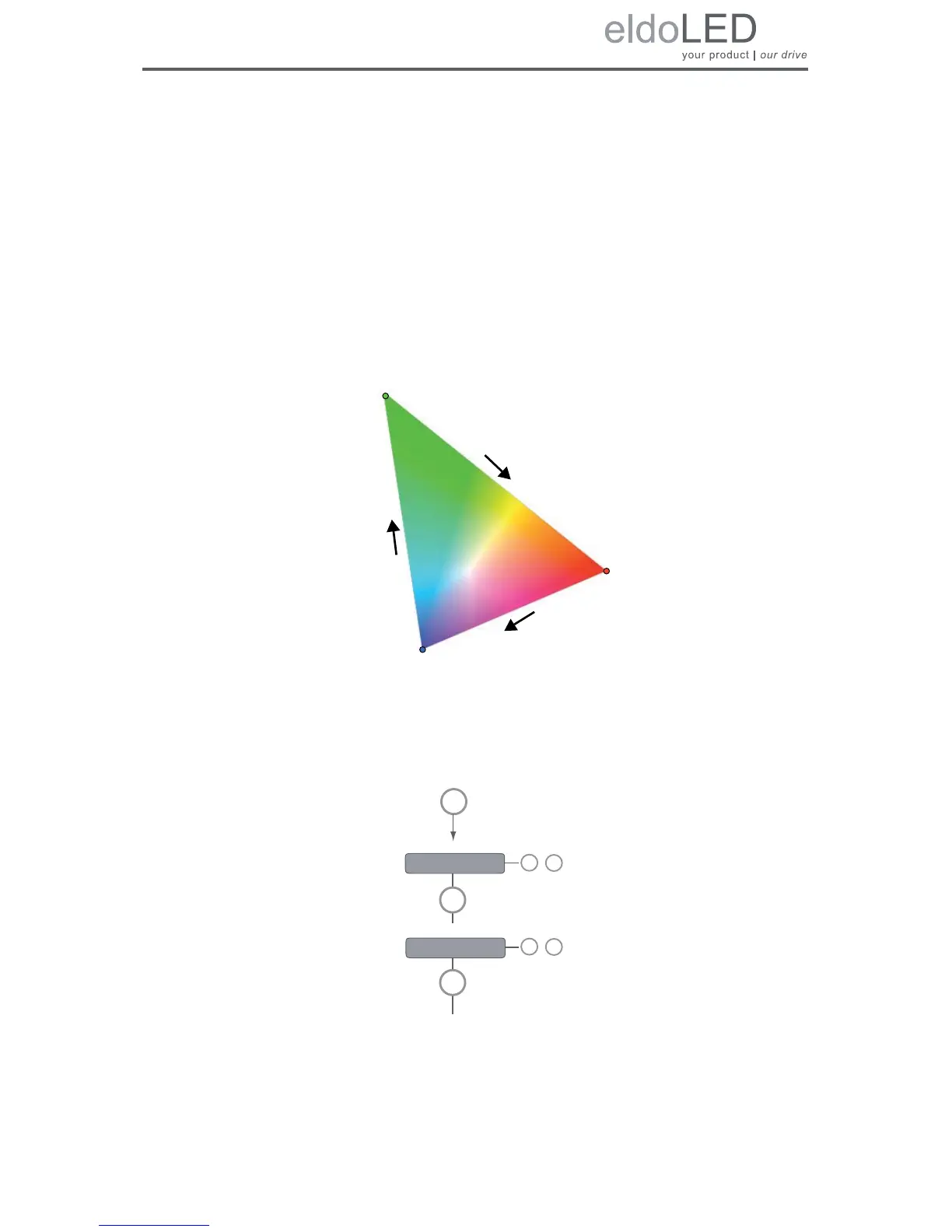

HUE lets you set the colour: By pressing + or - you actually ‘walk’ along the sides of
the colour triangle shown below, which is based on the CIE diagram. By pressing M
you confirm the colour of your choice. Then, INT lets you set the brightness of the cho-
sen colour.
Figure 4.9: Setting the colour
Figure 4.10: COLR settings for RGB, RRGB or RGGB
