CCWW or CWWW
CCWW: one DMX channel is used for two LED groups with the same colour and one
DMX channel is used for two LED groups consisting of white LEDs only.
CWWW: one DMX channel is used for one LED group and one DMX channel is used
for three LED groups consisting of white LEDs only.

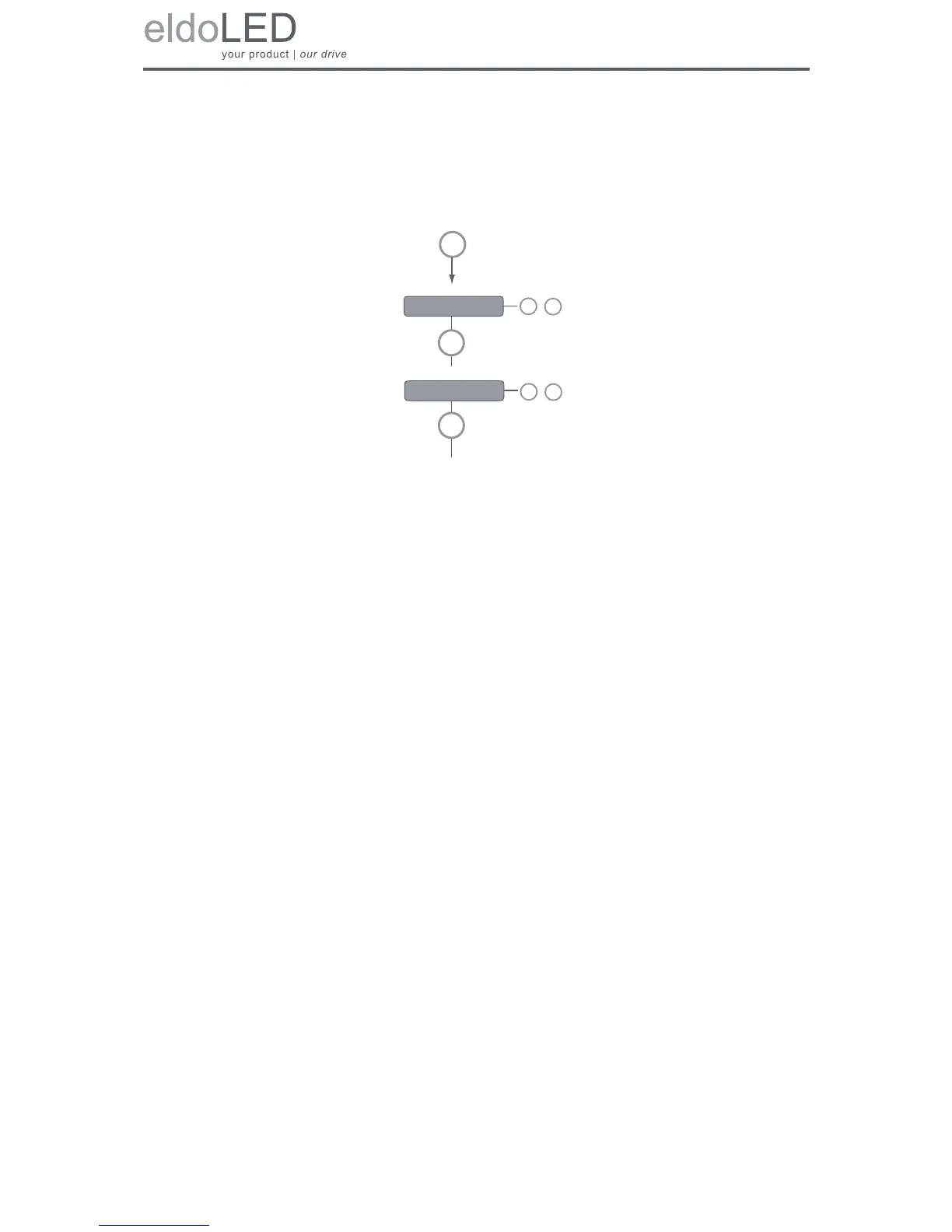

Figure 4.8: COLR settings for CCWW or CWWW
CW lets you set the proportion of colour to white, and INT (intensity) lets you set the
intensity of the light output: 255 is full on, 0 is off.
0...1023
M
display off
CW
M
M
0...255
+
-
/
+
-
/
Intensity
Color / white
INT
