4 Configuring the driver/controller
Configure the driver/controller over its intuitive, 3-button user interface with display. The easy-
to-navigate menu allows you to set parameters such as number of LED groups, DMX or DALI
network settings for networked mode and show/colour/dim values for standalone operation.
You can also lock the driver’s configuration and perform a test run of the connected LED
groups.
This chapter explains how to work with the menu buttons and display, and lists the various
menu items and selectable values.
4.1 Working with the menu buttons and display
The driver/controller features three menu buttons (M, - and +) with which you can navigate the
configuration menu. The display above the menu buttons shows the menu item names and val-
ues that can be selected for every item.
In order to prevent an unlocked driver/controller’s configuration from being accidentally
changed by objects touching the menu buttons, the menu buttons are sunk into the cover.
For easy access to the buttons when you are doing a complete configuration, it is recommend-
ed to remove the cover. If you only need to change one setting, such as changing a colour or
show sequence, you can leave the cover on and press the menu buttons using a pen.

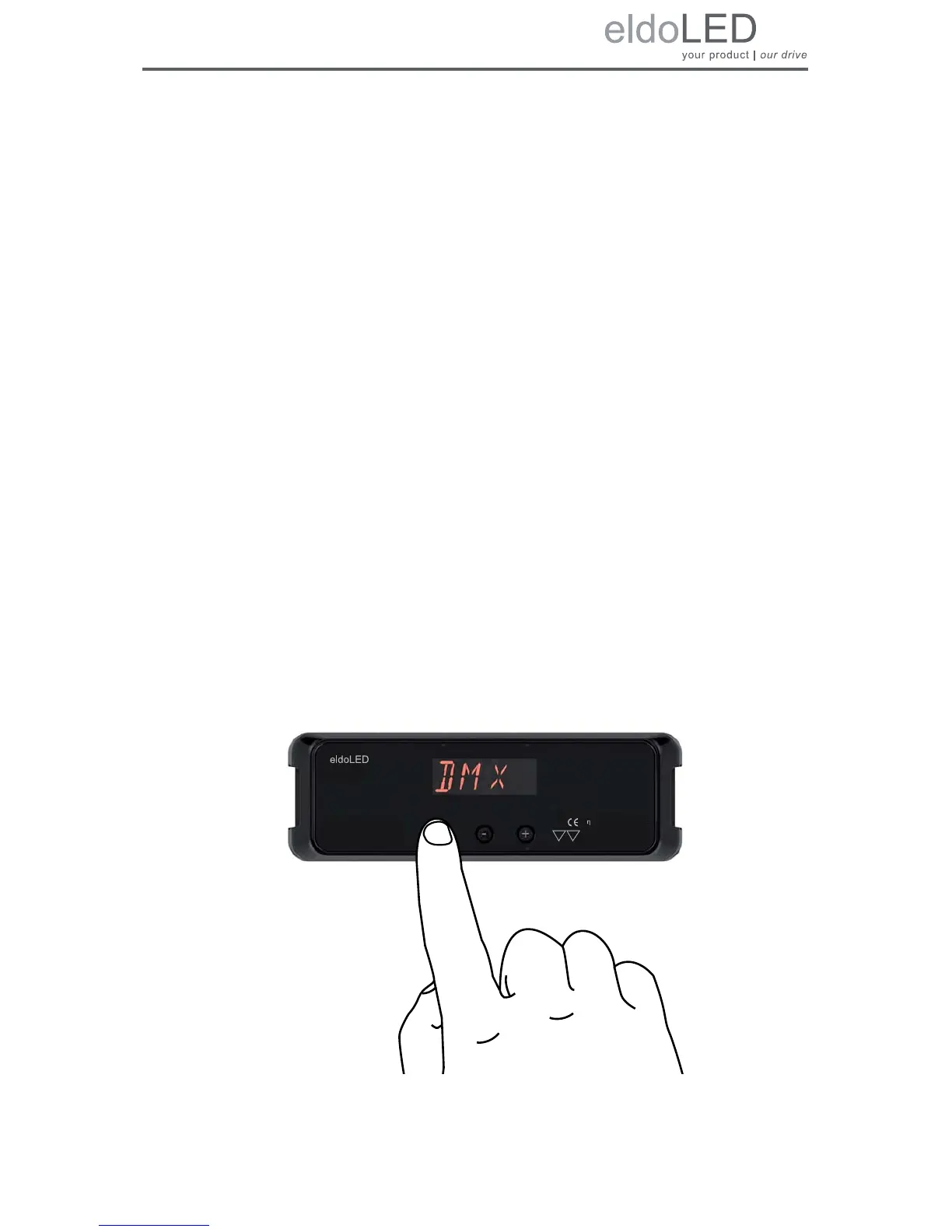

Figure 4.1: Intuitive user interface
