4.2.2 Configuring LED groups
In the SETUP menu, you can configure the LED groups and an external input device.

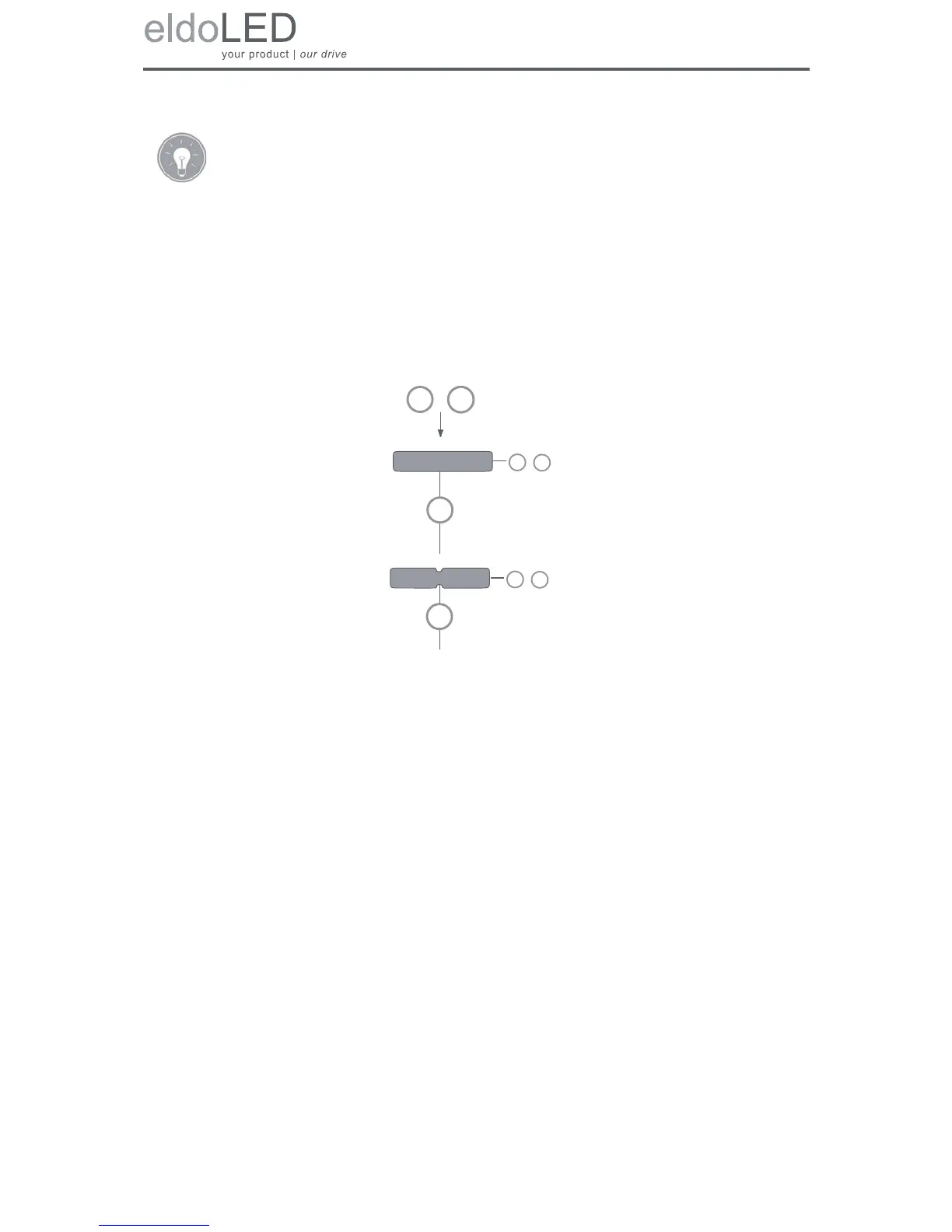

Figure 4.3: Configuring the LED groups
After you have confirmed COLR MODE as the mode of operation, it is rec-
ommended to set the LED groups via the SETUP menu first, before entering
the COLR menu to set the colour of your choice.
For information on how to configure the LED groups, see 4.2.2 “Configuring
LED groups” .
RGB
RGBW
RGBA
RRGB
RGGB
CCWW
CWWW
1-1L
2-2L
3-3L
4-4L
2-4L
1-4L
M
M
+
+
-
/
LED groups
LED
+
OFF
POTM
10V
SWIT
display off
M
+
-
/
External input
EXT INP
