41
A Specifications
Electrical data
Current:
LINEARdrive 180: up to 6A (1.5A per channel)
LINEARdrive 720: up to 24A (6A per channel)
Power output:
LINEARdrive 180: up to 180 watts
LINEARdrive 720: up to 720 watts
Operating supply voltage range: 12V-28V DC
Processor: eldoLED FluxLogic 850 Series
Independent LED groups: up to 4
Reverse polarity protection
Certifications
CE: IEC 61347, EN 55015, IEC 61003, EN 61547
Dimensions
LxWxH: 153 mm x 50 mm x 23 mm / 6.02” x 1.97” x 0.91”

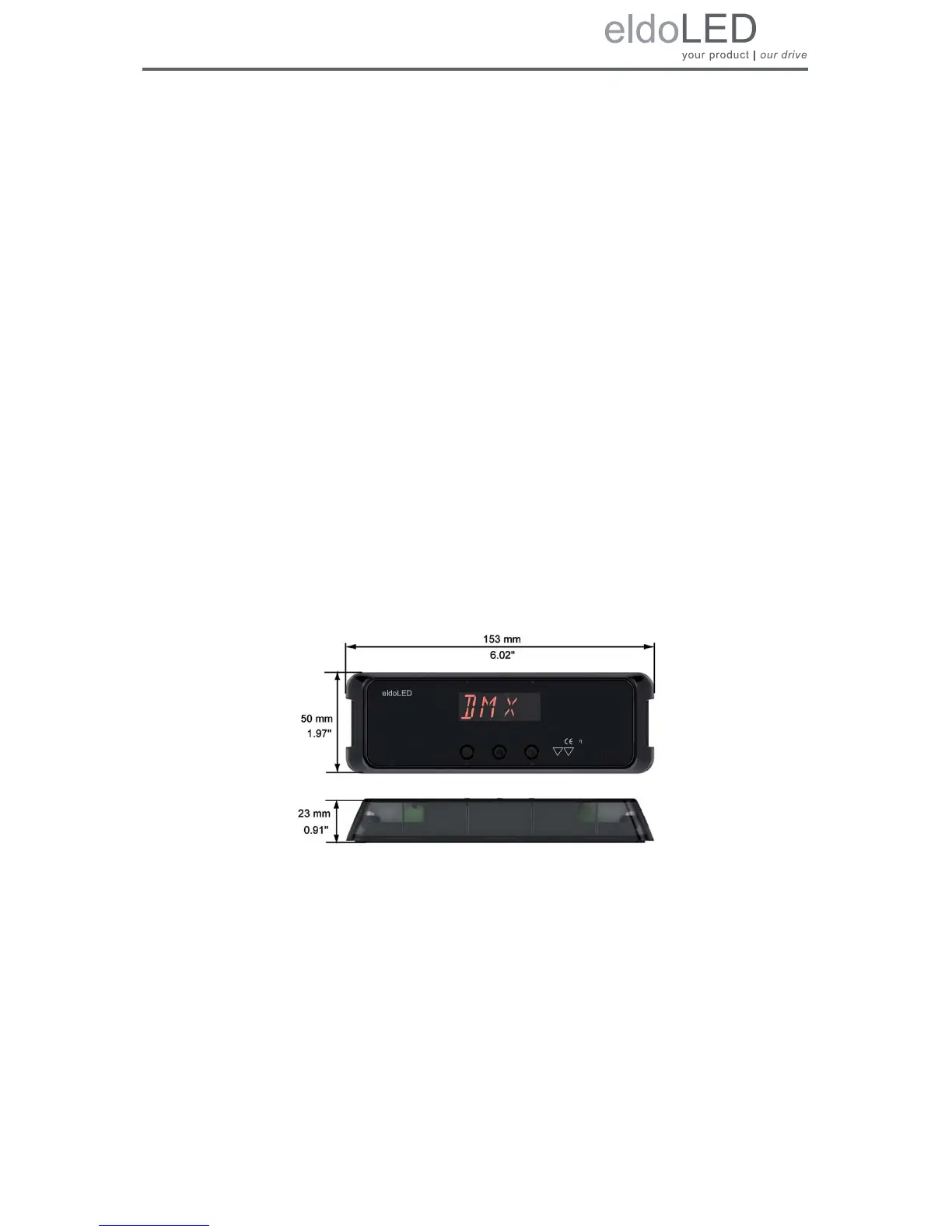

Figure A.1: The LINEARdrive’s dimensions
Dynamic effects
Hydradrive Algorithm Based Modulation
Control of channel 1 (R), 2 (G), 3 (B) and 4 (W/A):
0 - 100% in 15-bit set point resolution
Contrast ratio: up to 2,000:1
LINEARdrive
Intelligent LED Driver/Controller
IEC61347
EN55015, IEC61003, EN61547
130M
SELV-equivalent
: 99% typ
t
a
: -20°C to + 50°C
: +65°C
Tc
