Environmental ratings
•T
a
range: from -20°C to +50°C (from -4°F to +122°F)
•T
c
max: 65°C (149°F)
•T
heatsink
max: 60°C (140°F)
• Relative humidity: non-condensing
Mechanical dimensions

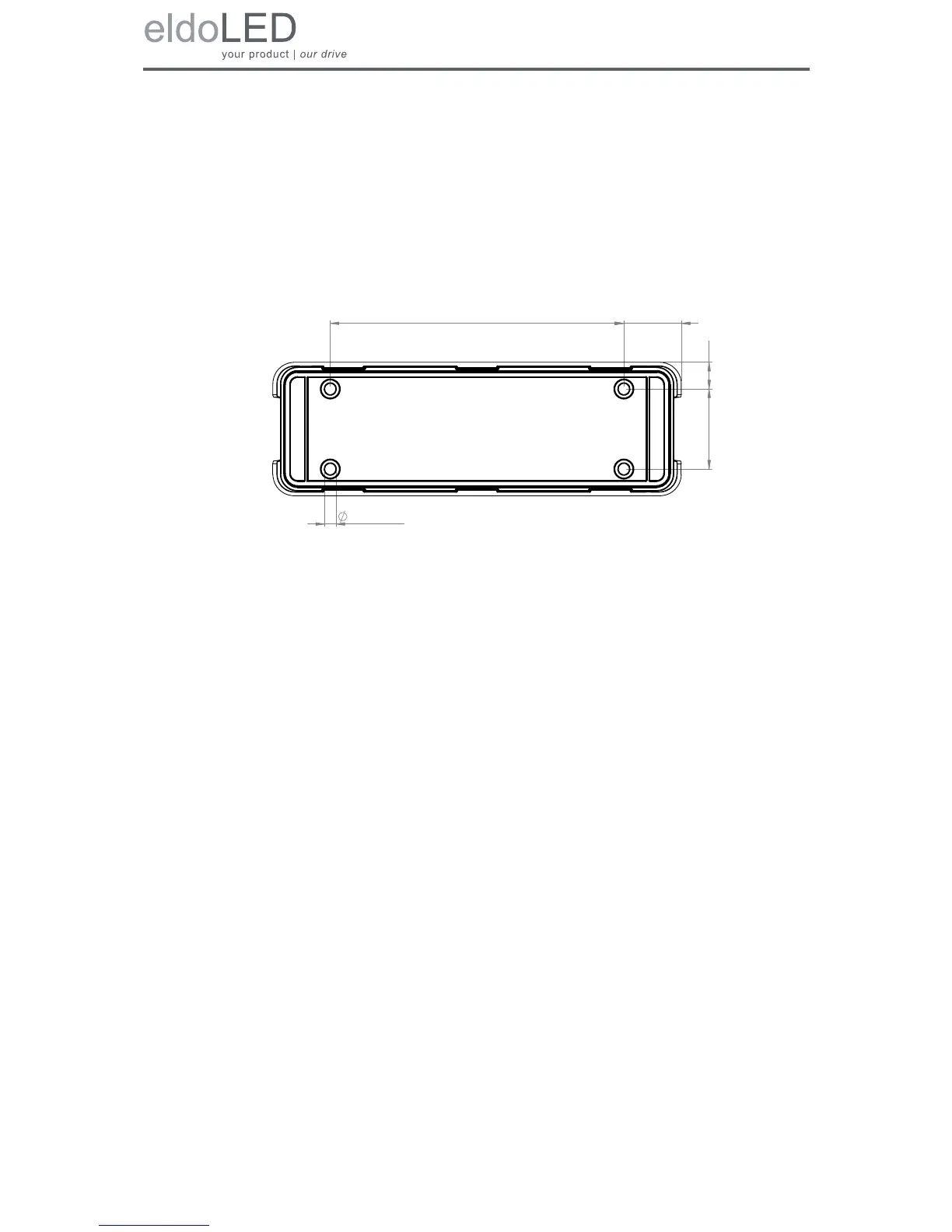

• The illustration below shows the mechanical dimensions in mm:
Figure A.2: LINEARdrive’s mechanical dimensions
Mounting data
• Mounting orientation: any
• Mounting holes: suited for M4 screws (4)
Network control
• Network input: USITT DMX512A, LedSync or DALI (DALI only on LINEARdrive 720)
• Network output: LedSync, DALI (DALI only on LINEARdrive 720)
• Network input/output: based on RS485 specification
• DMX/LedSync-in update rate: 8ms
• Network resolution: 8 or 16 bit, configurable over menu buttons
• Network channels used by driver in 8-bit resolution: 4
• Network channels used by driver in 16-bit resolution: 8
• Communication: bidirectional for driver configuration and temperature read-out
• Configuration: via menu buttons and display or via TOOLbox and freely available PC
software
ShowMaster
• Nine standard shows or up to 20 customer-defined shows set at factory
• User-defined shows (ShowMaster): up to 20 shows, via TOOLbox and PC software
• Show selection: via menu buttons
110
4.2 (4x)
21.5
1030
