Spring cage connectors LINEARdrive 180
• VDC: + and - (2)
• EXT in: + and - (2) for 10kOhm potentiometer, 0-10V or show switch
• DMX in: +, - and shield (3)
• LedSync thru: +, - and shield (3)
• LED groups and LED supply: group 1 through 4 and LED ground (5)
Spring cage connectors LINEARdrive 720
• VDC: + and - (2)
• EXT in: + and - (2) for 10kOhm potentiometer, 0-10V or show switch
• DALI in: + and - (2)
• DALI out: + and - (2)
• DMX in: +, - and shield (3)
• LedSync out: +, - and shield (3)
• LED groups: GND and - for group 1 through 4 (8)

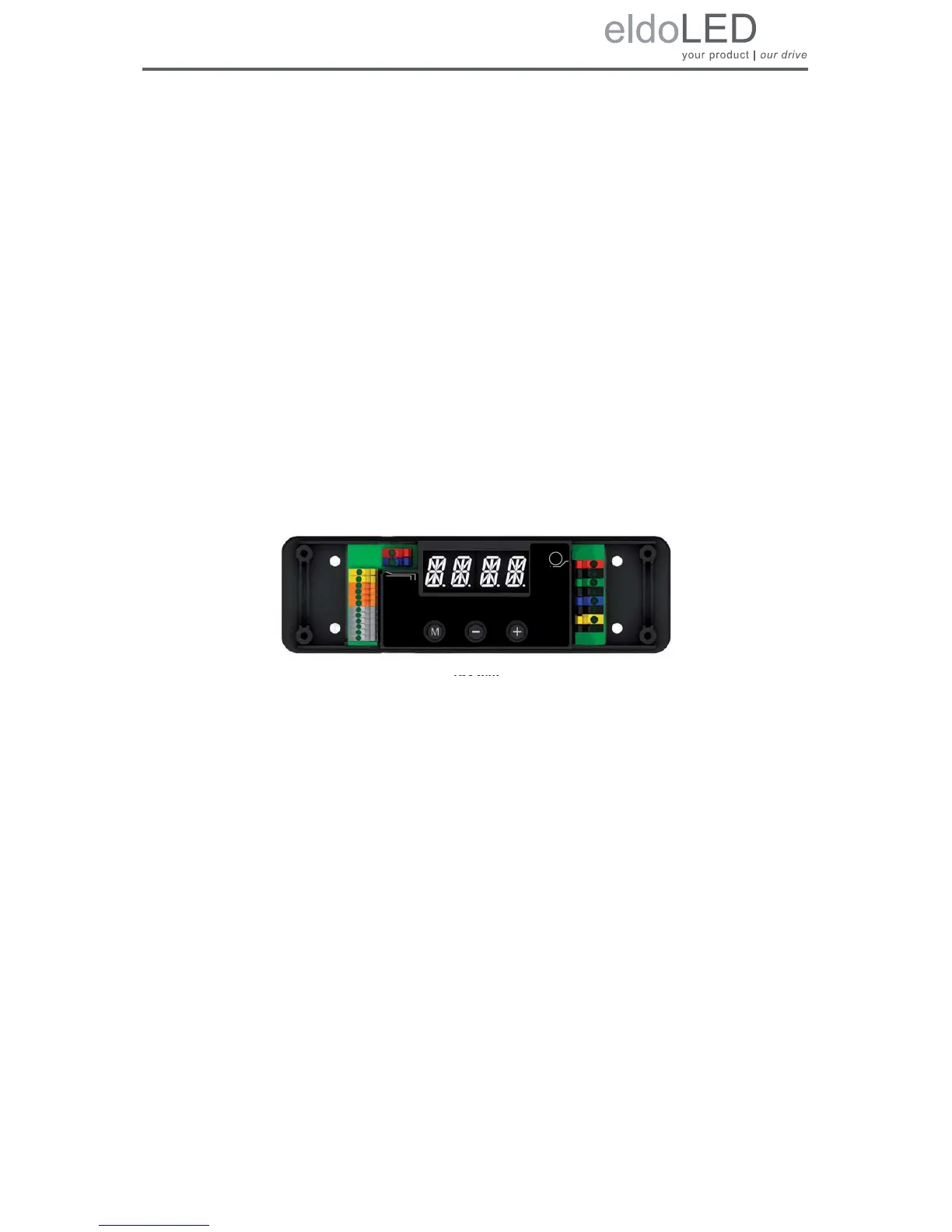

Figure A.3: Clearly marked connectors
Thermal data
• Cooling: passive (integrated heat spreader). Dual heat spreader on LINEARdrive 720
ensures ease of mounting onto required heat sink.
• Required heat sink for LINEARdrive 720: heat sink must be able to dissipate 10% of
the power consumed by the connected LED engine. For example, if the connected
LEDs consume a total of 90W, the driver/controller requires a 9W heat sink.
• Built-in protection against overheating of driver/controller
User interface
• Menu buttons: M, - and + (3)
• Display: segmented (4x16)
• Modes: colour/show/DMX/DALI mode (DALI on LINEARdrive720 only)
• Features: setup, lock, reset
TC
Group 1
LINEARdrive 720D
Group 1 GND
Group 2 -
Group 2 GND
Group 3 -
Group 4 GND
Group 4 -
Group 3 GND
Ext in +
Ext in
DMX in +
DMX in -
DMX in shield
LedSync out +
LedSync out -
LedSync shield
-
DALI out -
DALI out +
DALI in -
DALI in +
12-28V / 24A Direct voltage controlled LED driver
