30
4.2.3 Configuring the operation mode ‘COLR’
In COLR mode, you can set your LED application’s colour for standalone (i.e. non networked)
operation. To change the COLR settings:
1. Press M to enter the COLR menu. Your options in the COLR menu depend on the way
you have configured your LED groups in the SETUP menu. Below you will find the
COLR menu options for the corresponding LED group configurations.
1-1L and 1-4L
1-1L: one DMX channel is used for one LED group (group 1). The other LED group
connectors are disabled.
1-4L: one DMX channel is used for four LED groups. This means that all four groups
have light output.
INT (intensity) lets you set the intensity of the light output: 255 is full on, 0 is off.

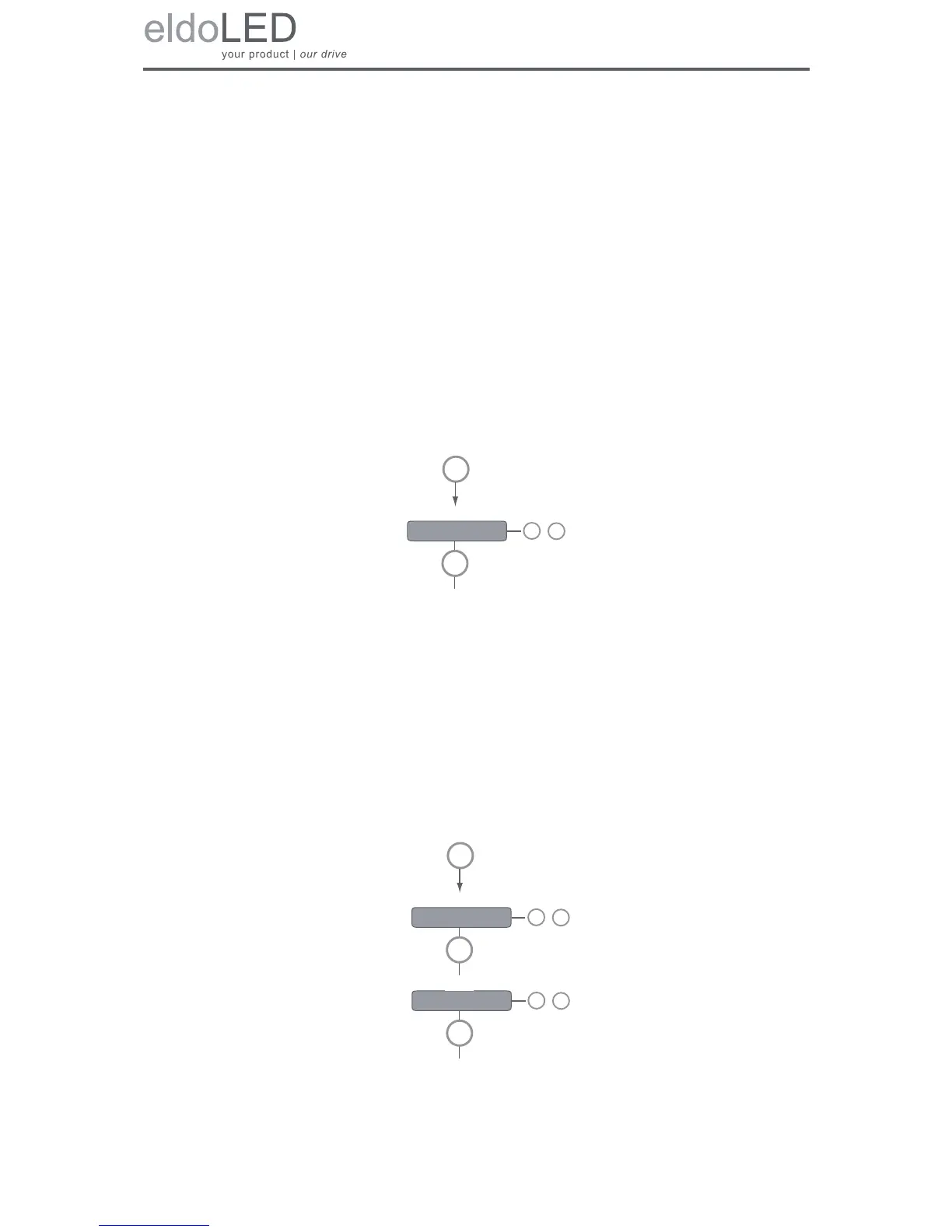

Figure 4.4: COLR settings for 1-1L and 1-4L
2-2L and 2-4L
2-2L: two DMX channels are used for two LED groups, the group 1 and group 2 con-
nector. Group 3 and 4 are disabled.
2-4L: two DMX channels are used for four LED groups, one for group 1 and 2, the oth-
er for group 3 and 4.
INT (intensity) lets you set the intensity of the light output of each channel: 255 is full
on, 0 is off.
Figure 4.5: COLR settings for 2-2L and 2-4L
