4.2.4 Configuring the operation mode ‘SHOW’
Your driver/controller comes with 9 default or a number of custom show sequences. Your LED
application can run these show sequences
• when the LED application is not part of a network (standalone operation).
• when no DMX signal is received over the network
In SHOW mode, you can choose a show sequence and set this sequence’s speed and intensity
i.e. brightness.
To change the SHOW settings:
1. Press M to enter the SHOW menu.

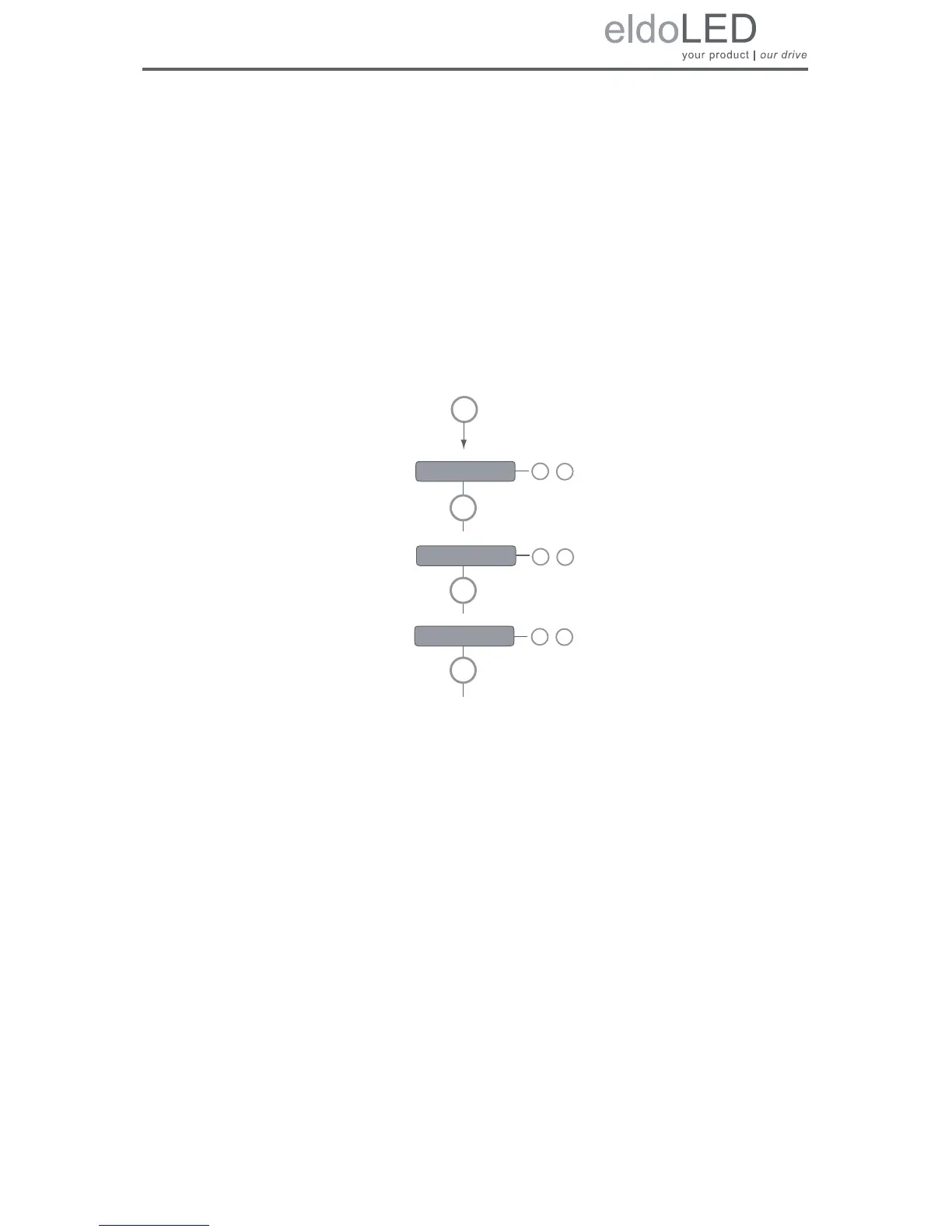

Figure 4.13: Configuring show settings
a. SHOW allows you to select a different show sequence. LINEARdrive can con-
tain up to 20 show sequences. Show sequences can be uploaded to the driver/
controller at the factory, or with a TOOLbox and freely available PC software
(downloadable at www.eldoled.com/software). The latter also let you create
and manage your own show sequences.
b. SPD (speed) allows you to change the speed of the selected show sequence.
Possible range is -99 through 99, with 0 representing the show sequence’s de-
fault speed, -99 twice as slow and 99 twice as fast.
c. INT (intensity) allows you to change the intensity of the selected show se-
quence. Possible range is 0 (off) through 255 (full on).
2. When a changed menu option is saved, the next menu option is automatically dis-
played on the display.
When you’ve reached the last menu option and press M, the display turns off. The dis-
play also turns off after 8 seconds of inactivity. To enter the Show menu again after the
display has turned off, repeat the aforementioned sequence.
