Installation Information
2-11
Reversing Door
Preparing to Reverse Door Swing
1. Be sure you have adequate swing area before
reversing door.
2. You will need a screw driver with a #2 square bit.
3. Protect flat work surface, such as top of washer or
floor near washer, with a soft cloth or towel.
4. Be sure washer is unplugged from power
source.
Removing Trim Ring
1. Open the door to a 90 degree angle.
2. Remove and save the trim plug and long, course-
thread, panhead screw. (See Figure 2-8)
3. Close the door.
4. Rotate the door trim approximately ¾” counter-
clockwise and pull it away from the front of the door.
(See Figure 2-9)
Removing Door from Hinge
1. Reopen door to 90 degree angle.
2. Remove 4 long, course-thread, counter-sunk hinge
screws from door. (See Figure 2-10)
3. While supporting the weight of the door with both
hands, separate the door from the hinge.
(See Figure 2-11)
4. Gently place the door face down on a flat, covered
work surface.

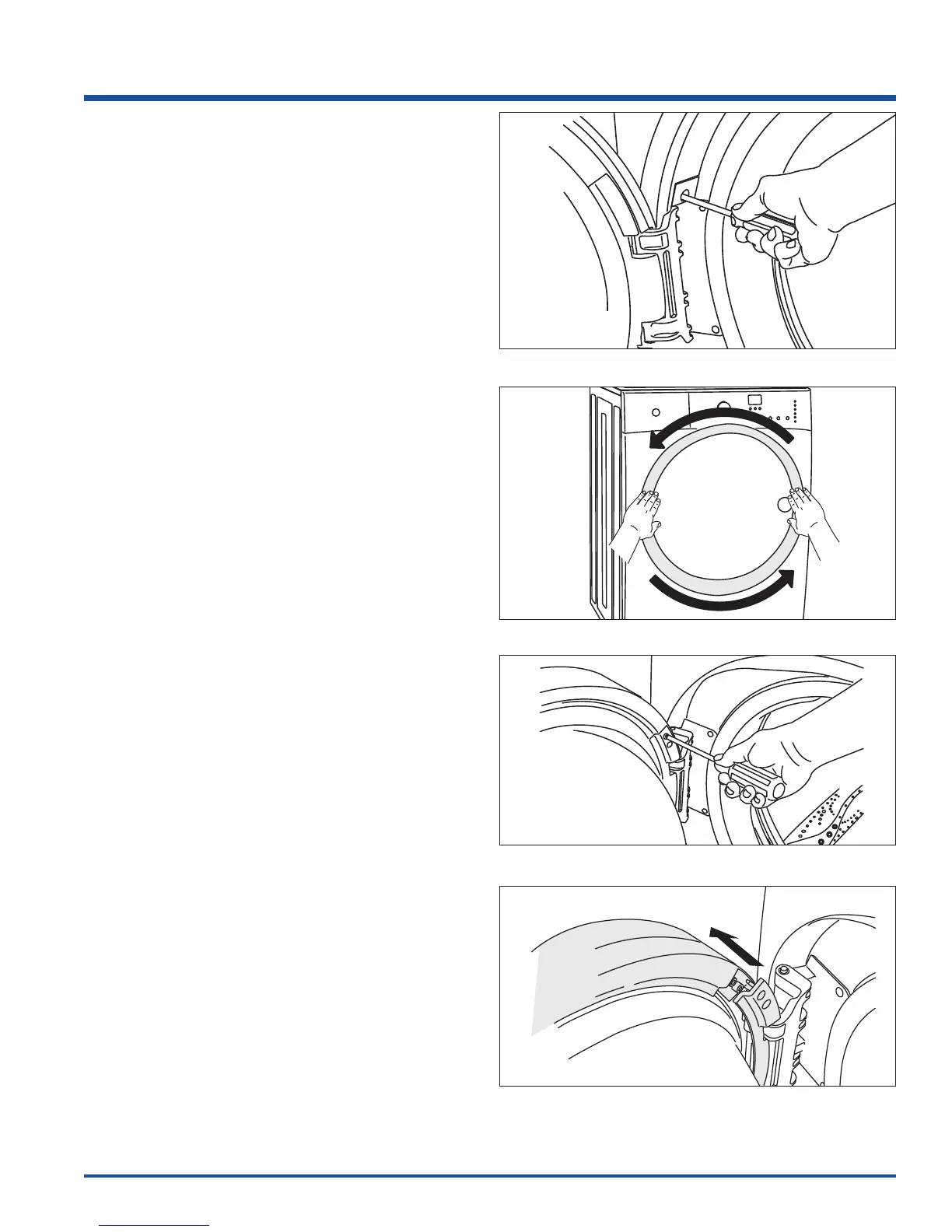

Figure 2-8.
Figure 2-9.
Figure 2-10.
Figure 2-11.
