Removing Hinge from Front Panel
1. With the hinge in open position, remove 2 short,
course-thread, panhead screws on hinge plate.
(See Figure 2-12)
2. Remove 3 short, fine-thread, counter-sunk screws in
hinge side. (See Figure 2-13)
3. Slide the hinge toward the center of the front panel,
and then pivot the hinge inward while slowly pulling
it away from the front panel to expose the attached
harness.
4. Lift up on the tab and the release harness from the
retainer, allowing the harness to lay outside the front
panel. (See Figure 2-14)
Removing Door Lock from Front Panel
1. Remove 2 short, course-thread, panhead screws
from the door lock. (See Figure 2-15)
2. Slide the lock toward the outer edge of the front
panel. Pivot the lock slightly outward while slowly
pulling it through opening to expose the attached
harness. (See Figure 2-16)
3. Release the harness from the terminal with the
small lever on back of the lock. Separate the
harness from the lock, allowing the harness to lay
outside the front panel. (See Figure 2-17)

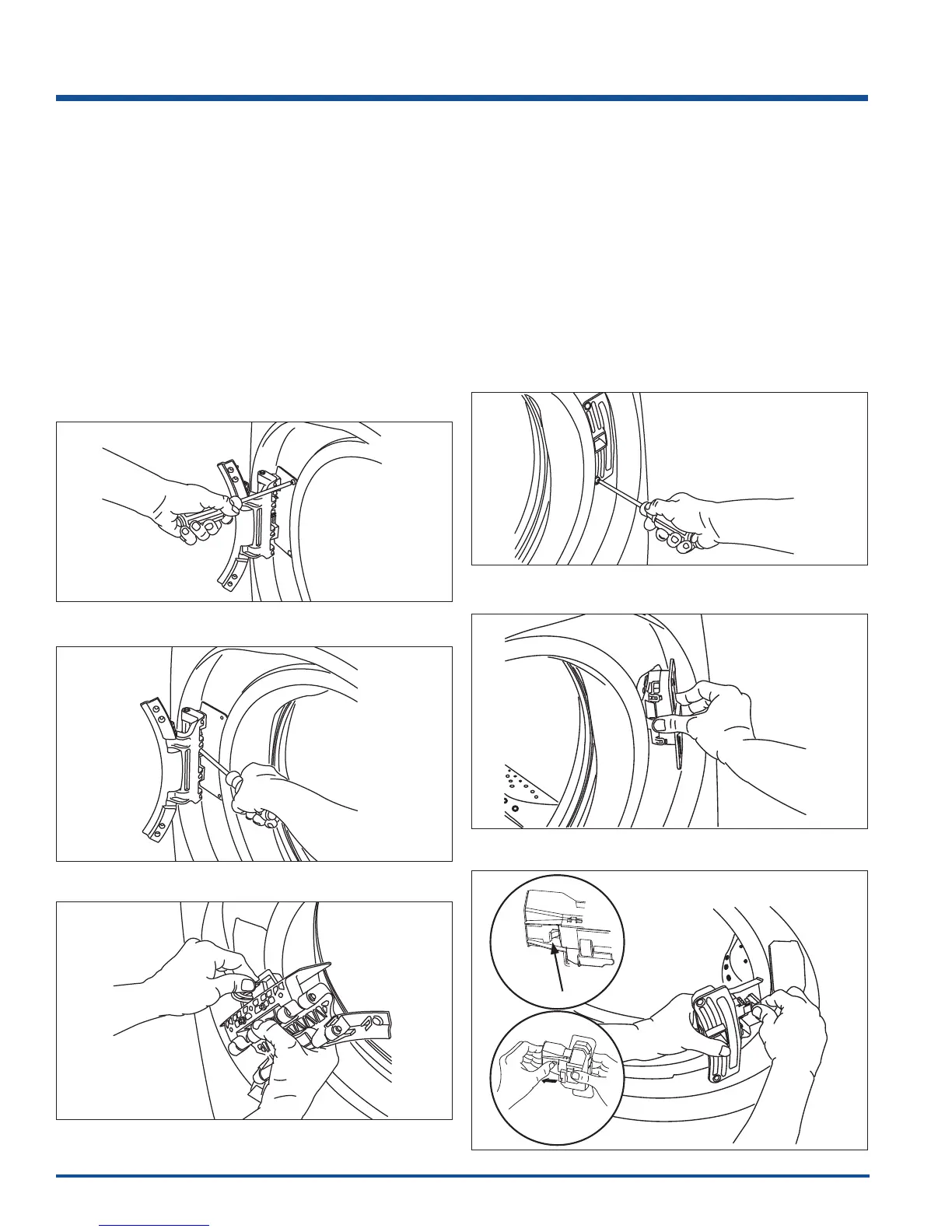

Figure 2-12.
Figure 2-13.
Figure 2-14.
Figure 2-15.
Figure 2-16.
Figure 2-17.
