Installation Information
2-20

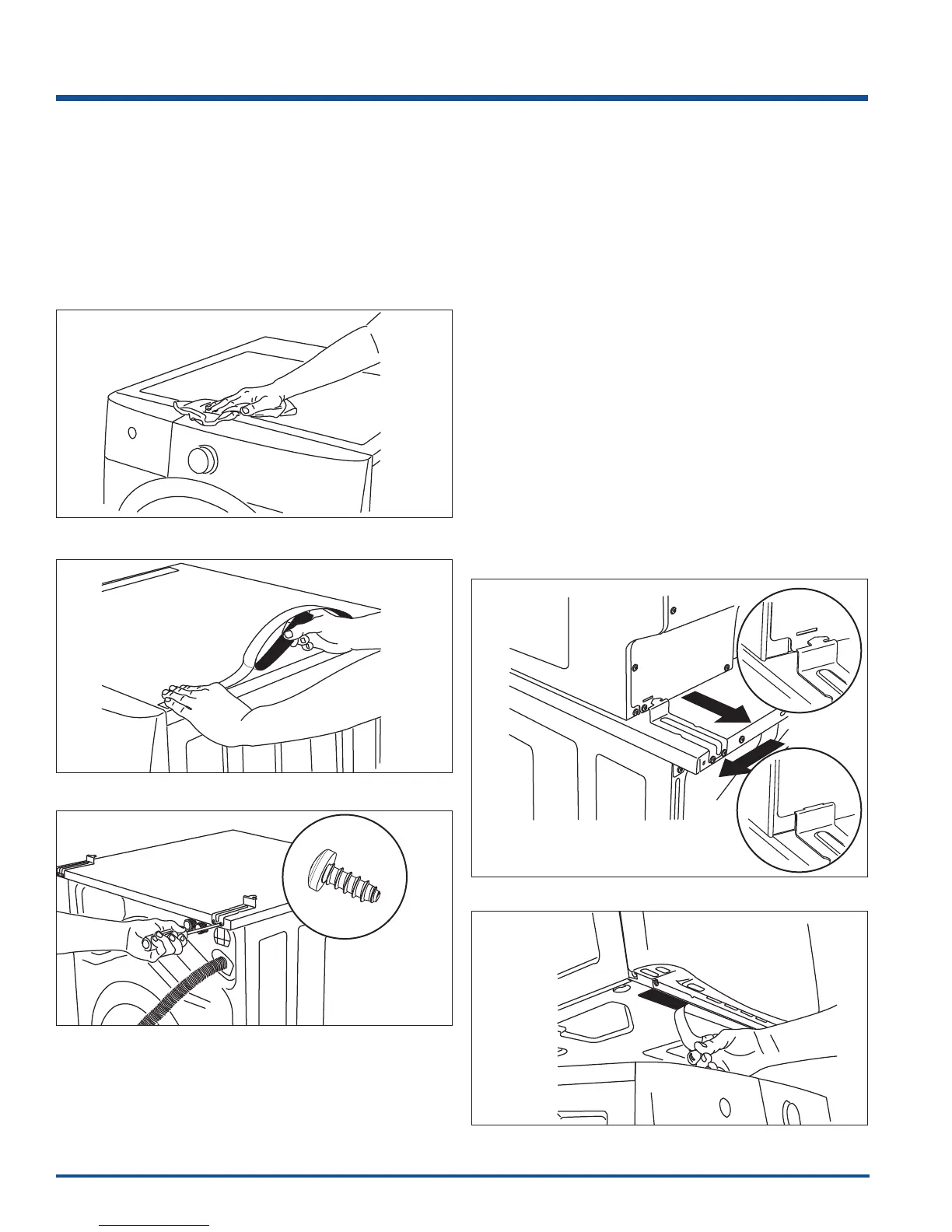

Preparing Washer for Stacking
1. Wipe front portion of top with isopropyl alcohol
and a clean cloth. (See Figure 2-43)
2. Carefully remove BLUE backing from clear self
adhesive strips. Apply to each side edge of the
washer top. (See Figure 2-44)
3. Attach each rear bracket to washer top with two #10
screws. (See Figure 2-45)
Stacking Dryer
1. When washer is within 4 feet of its final installation
site, electrical and water connections have been
completed, and washer is level, have two or more
people lift dryer onto washer.
2. Hold the front of the dryer up slightly carefully slide
the dryer back.
3. Slide hook tabs on rear brackets into slots in back
sheet of dryer. Dryer will be approximately ¼” left
of center. Continue sliding dryer back until tabs are
fully engaged. (See Figure 2-46)
4. Slide dryer approximately ¼” to the right, centering
it on washer and hooking rear bracket tabs into slots
on back.
5. Lift front of dryer and remove RED backing from
adhesive strip on front bracket. (See Figure 2-47)
6. Gently lower dryer to adhere front bracket to washer
top. Align dryer side panel to washer side panel as
you lower dryer.
7. Refer to installation instructions to connect dryer
venting, power and accessories.
Figure 2-43.
Figure 2-44.
Figure 2-45.
Figure 2-46.
Figure 2-47.
