Installation Information
2-13

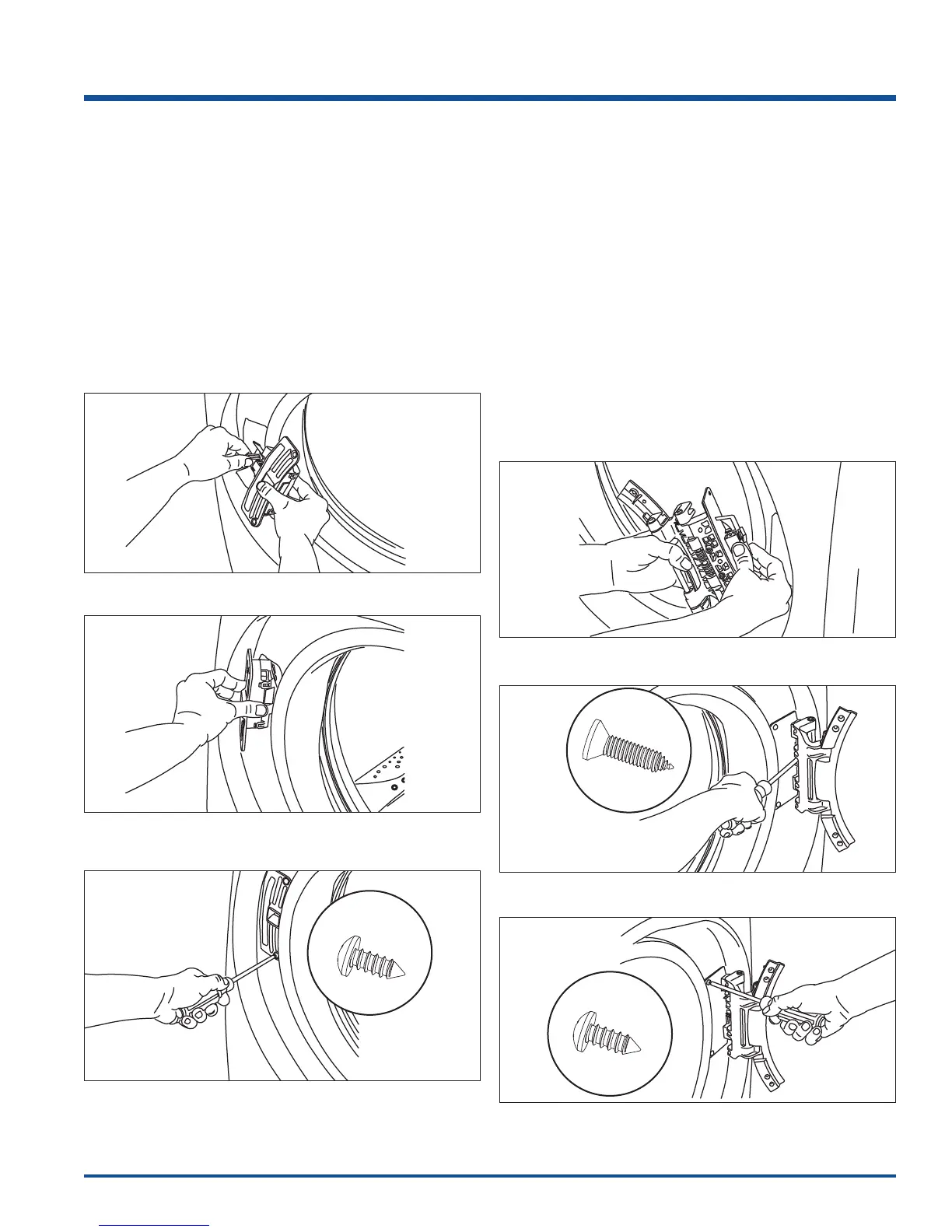

Reattaching Door Lock to Front Panel
1. Rotate the door lock and move it to the opposite
opening.
2. Connect the harness to the door lock by inserting it
in the terminal and firmly pushing it in place.
(See Figure 2-18)
3. Insert the harness connection through the front panel
first, and then pivot the lock until it is flush. Slide the
lock toward the center of the front panel until the
screw holes line up. (See Figure 2-19)
4. Secure the lock with 2 short, course-thread, panhead
screws. (See Figure 2-20)
Reattaching Hinge to Front Panel
1. Rotate the hinge and move it to the opposite
opening.
2. Connect the harness to the hinge retainer by
inserting it in the retention terminal and gently
pushing until you hear the fastening tab click.
(See Figure 2-21)
3. Gently pull on the harness to be sure it is secure.
4. Use the side locating pins to align the hinge and
install 1 short, fine-thread, counter-sunk screw in the
center hole of hinge side. (See Figure 2-22)
5. Install the other 2 short, fine-thread, counter sunk
screws in upper and lower holes of hinge side.
6. Install 2 short, course-thread, panhead screws
through hinge plate. (See Figure 2-23)
Figure 2-18.
Figure 2-21.
Figure 2-22.
Figure 2-23.
Figure 2-20.
Figure 2-19.
