4-3
Component Teardown
Striker Plate Removal
The striker plate is secured with two long coarse thread
screws to the inner face of the door assembly. The
striker assembly is secured to the striker plate with two
shorter countersunk screws. The striker assembly may
be removed without removing the striker plate.
To remove the striker plate:
1. Using a #2 square bit screwdriver, remove the two
long, course thread, countersunk screws.
(See Figure 4-5)
2. Tilt and pull forward to remove.
3. Using a #2 square bit screwdriver, remove the two
countersunk screws securing the striker assembly to
the striker plate. (See Figure 4-5)
Inner Door Glass Removal
The inner door glass is secured with screws that pass
through two retaining covers that are mounted to the
inner door assembly.
To remove the inner door glass:
1. Remove door assembly from unit.
2. Remove the striker plate.
3. Using a #2 square bit screwdriver, extract the screws
from the two retaining covers and pull from door
assembly. (See Figure 4-6)
4. Lift the inner door glass from door assembly.
Latch Indicator Removal
The latch indicator is secured by retaining latches to the
interior of the door assembly.
To remove the latch indicator:
1. Remove door assembly from unit.
2. Remove the striker plate.
3. Grasp the indicator on the latch side between finger
and thumb and rock it upward, pivoting away from
the center of the glass. (See Figure 4-7)
4. Gently push the indicator toward the center of the
lens to release the tab.
5. Rock the tab upward. (See Figure 4-8)
6. Pull the indicator out and remove from unit.
(See Figure 4-8)

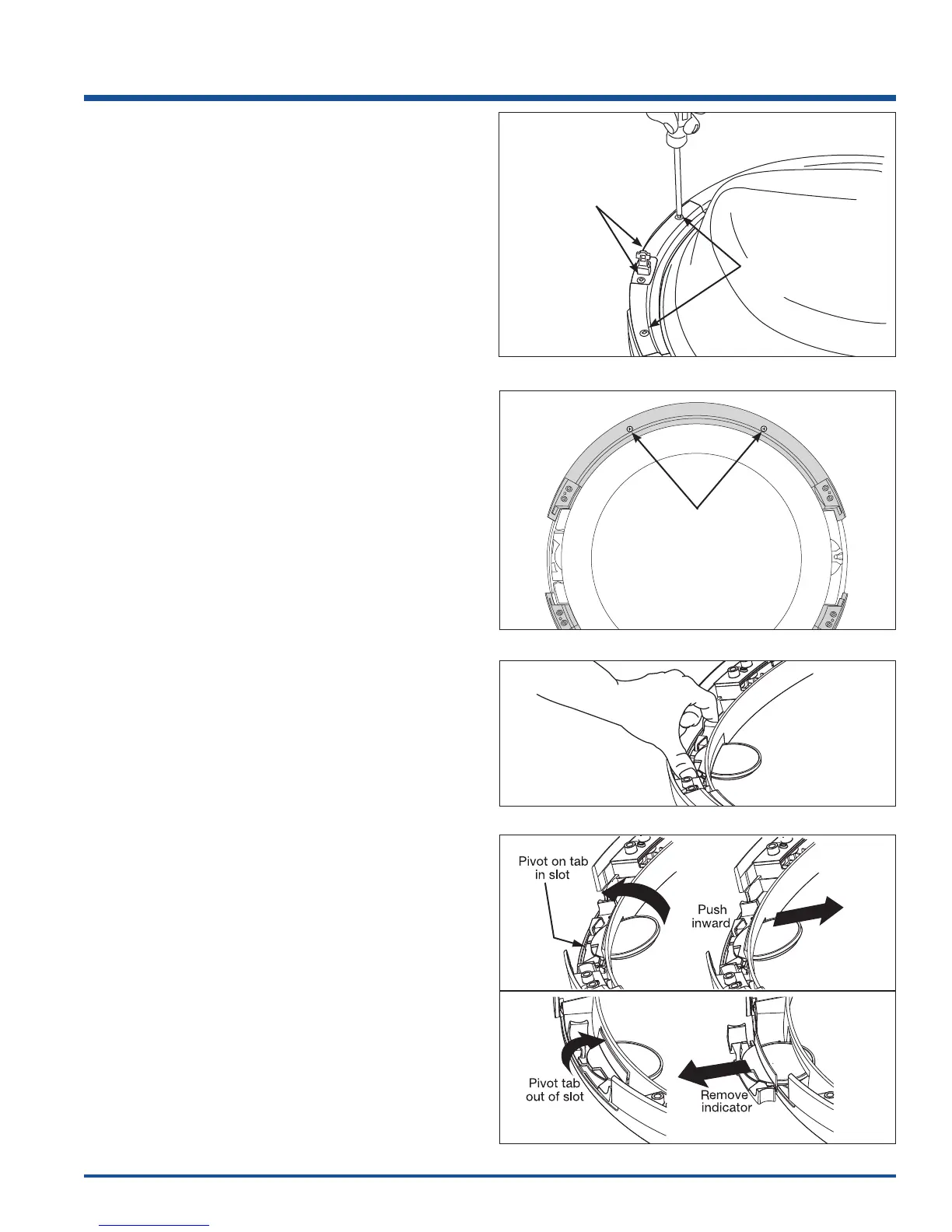

Figure 4-5.
Figure 4-6.
Figure 4-7.
Figure 4-8.
Striker Plate
Screws
Screws
Striker Assy.
Screws
