Installation Information
2-16
Reattaching Door Assembly
1. Open the hinge to a 90 degree angle.
2. Install the door onto the hinge locating pins.
(See Figure 2-34)
3. Secure the door with 4 long, course-thread,
counter-sunk screws. (See Figure 2-35)
4. Close the door and test the operation of the latch.
Reattaching Striker Plate
1. Rotate the striker plate and move it to the opposite
side of door above the indicator.
2. Reattach with 2 long, course-thread, counter-sunk
screws. (See Figure 2-32)
Reinserting Hole Plug
1. Rotate the hole plug and move it to the opposite hole
in the door.
2. Grasp the hole plug between finger and thumb and
insert the tab into the retaining slot.
(See Figure 2-33)
3. Pivot the hole plug downward toward the center of
the glass until it is in place.

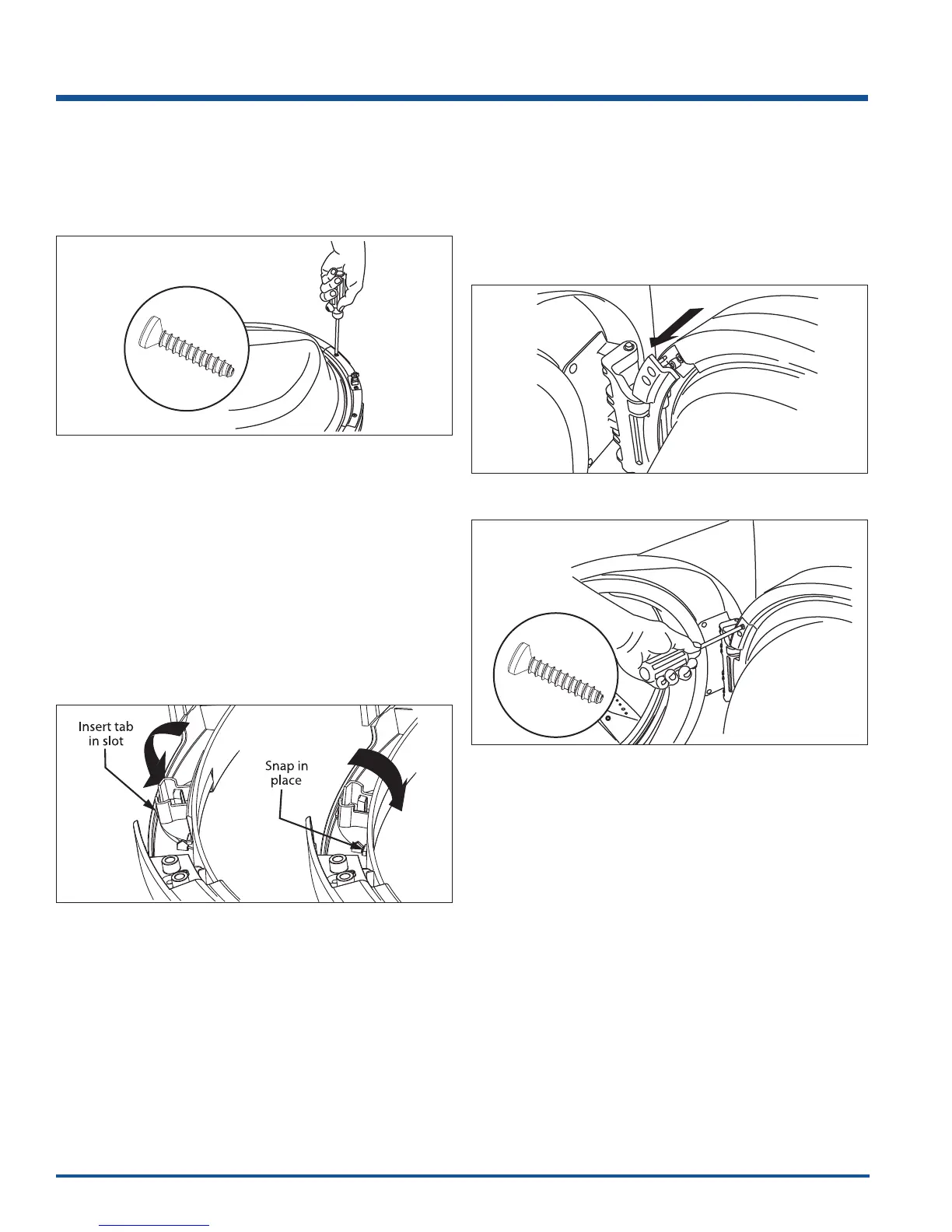

Figure 2-32.
Figure 2-34.
Figure 2-33.
Figure 2-35.
