Component Teardown
4-4
Outer Door Glass Removal
The outer door glass is secured with retaining latches to
the door assembly.
To remove the outer door glass:
1. Remove door assembly from unit.
2. Remove the striker plate.
3. Remove retaining covers.
4. Release the retaining latches around the door
assembly that secure the outer door glass to
the door assembly. (See Figure 4-9)
Door Hinge Removal
The door hinge is secured with screws to the unit frame.
To remove the door hinge:
1. Remove door assembly from unit.
2. Using a #2 square bit screwdriver, with the
hinge in open position, extract two short,
course thread, panhead screws on hinge plate.
(See Figure 4-10)
3. Using a #2 square bit screwdriver, extract 3
short, fine thread, countersunk screws in hinge
side. (See Figure 4-11)
4. Slide the hinge toward the center of the front
panel, and then pivot the hinge inward while
slowly pulling it away from the front panel to
expose the attached harness.
5. Lift up on the tab and the release harness
from the retainer, allowing the harness to lay
outside the front panel. (See Figure 4-12)

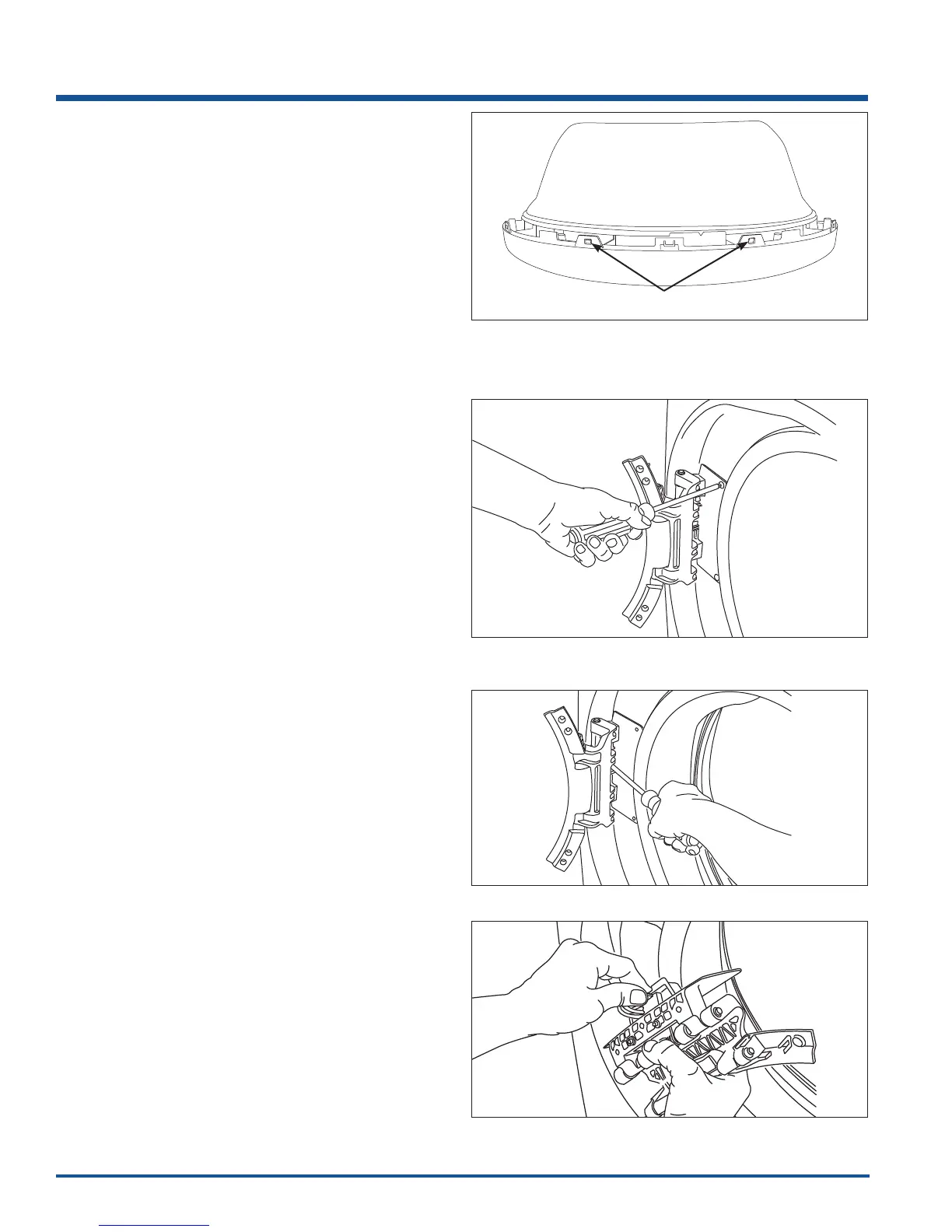

Figure 4-9.
Figure 4-10.
Figure 4-11.
Figure 4-12.
Retaining Latches
