4-21
Component Teardown
Tub Assembly Removal (continued)

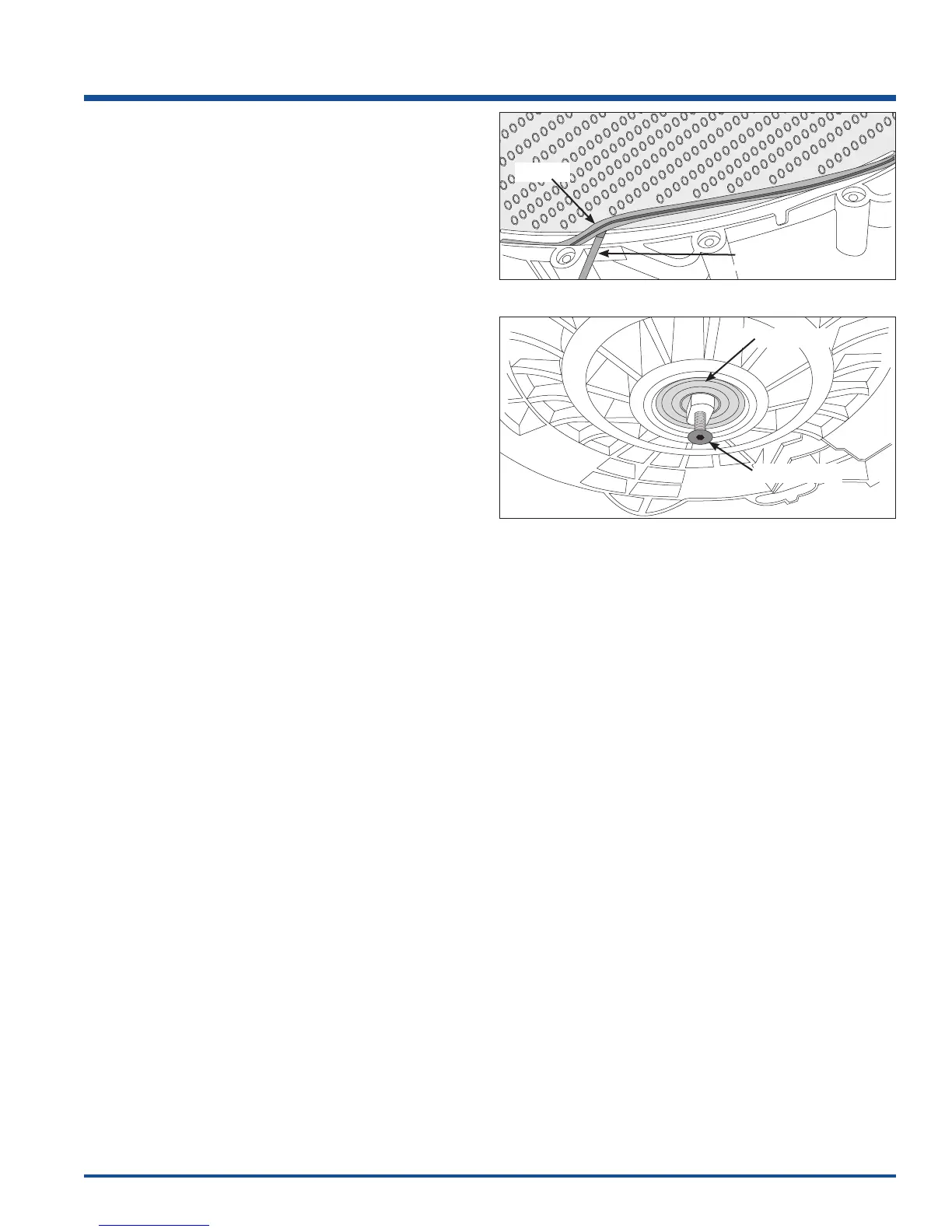

14. The seal between the (2) tub halves is placed in the
groove of the rear half and can be lifted out with a
flat bladed screwdriver. (See Figure 4-60)
15. To remove the spin basket, set the back half of the
outer tub on its side, reinstall the screw that holds
the large pulley on and tap the inner tub out with a
rubber hammer. (See Figure 4-61)
NOTE: The bearings, water seal and seal between
the two tubs come as part of the rear half of the outer
tub. If the water seal or bearings fail, inspect and if
necessary dress the shaft of the spin basket with a file.
With some failures, it may be necessary to replace the
spin basket.
Figure 4-60.
Figure 4-61.
Screwdriver
Seal
Pulley Screw
Bearing
