3.4 Engine and System Functions:
The left side of the display area provides up to seven digital instruments or annunciators (such as Canopy, Baggage
Door, Landing Lights, Rotating Beacon, etc.). The right side of the display area provides up to four horizontal strip
gauges with digital displays. All of these instruments may be configured with various functions or annunciators.
3.5 Anunciators:
The top right portion of the System Screen provides fourteen installer-defined annunciators and the center right
portion of the screen provides nine Main Engine Screen annunciators. All of these annunciators are the same as
shown on the Main Engine Screen. If any function or annunciator goes into the red or yellow, the appropriate
display will blink. In this way the pilot is alerted of a potential problem and should view the appropriate screen for
further information. Annunciator operation was covered in a previous section of this manual.
3.6 Five Digital Instruments:
The bottom right portion of the System Screen provides up to five primary functions from the Main Engine Screen.
If any function goes into the red or yellow, the appropriate display will blink. In this way the pilot is alerted of a
potential problem and should view the Main Engine Screen for further information.

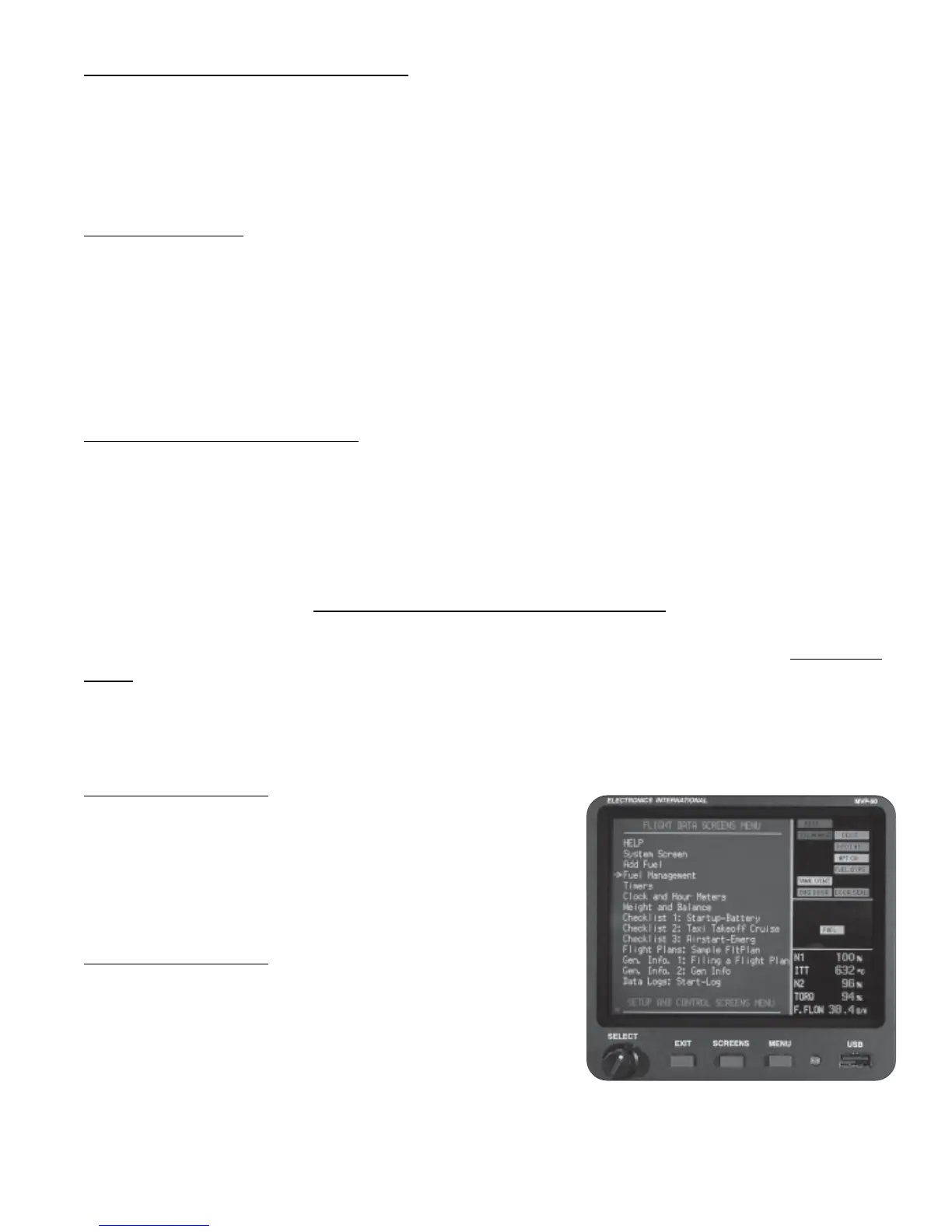

4.0 Flight Data Screen Menu:
A menu of the Flight Data Screens may be found by pressing the “Menu” button when displaying the Main Engine
Screen. When the Flight Data Screen Menu or any Flight Data Screen is being displayed all annunciators and five
Main Engine Screen functions will be displayed to the right of the Flight Data Screen. The operation of each Flight
Data Screen is described below.
4.1 “Help” Screen:
The Help screen provides an overview of the MVP operation. This
screen can be helpful when first learning the basic operation of the
MVP.
4.2 System Screen:
The System Screen may be selected from the Flight Data Screens
Menu. Operation of this screen has been previously described in
section 3.0 of this manual.
