Eliwell Memory 1000 - Mechanical Assembly

9MA10011 41/52

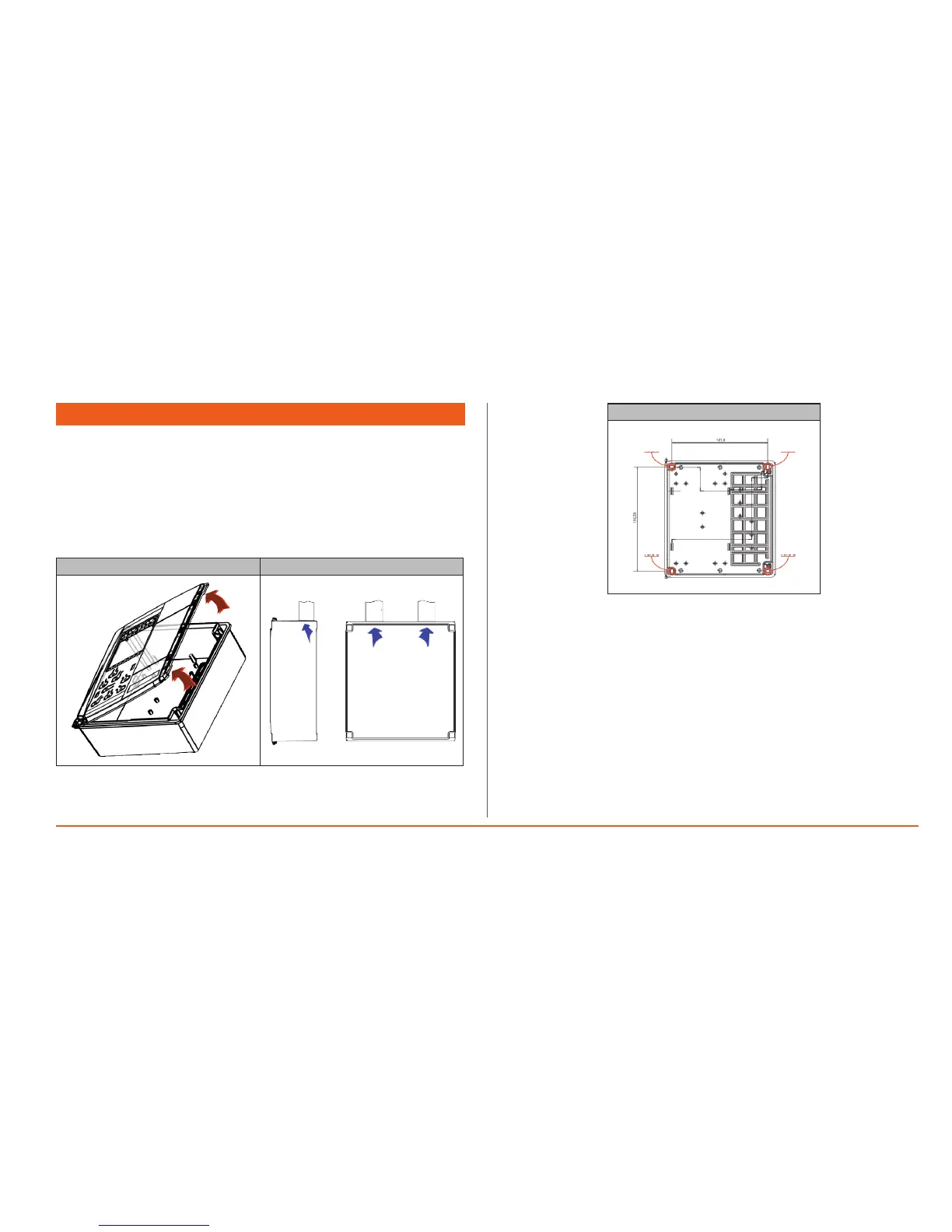

10. MECHANICAL ASSEMBLY
Memory1000 was designed for wall or panel-mounting (supportbrackets not
supplied).
Removethescrewcapsontherightsideofthedoor,pressinglightlyonthepoints
indicatedbythearrowsinFigure1.Takeoutthescrewsandopenthedoor.Drill
holesinthe backplate atthetopor bottom topassthewires through. Seethe
exampleinfigure2:
Fig. 1 Fig. 2
Screwthebackplatetothewallusing4screws(notsupplied)tomatchtheholes
illustratedinfigure3.
Fig. 3
Shut the door by securing it with 2 screws (provided). Replace the screw caps
removedearlierfromthedoor(seepoint1).
LOW HIGH
Drill holes in
these points
Hole A Hole B
Hole C Hole D
