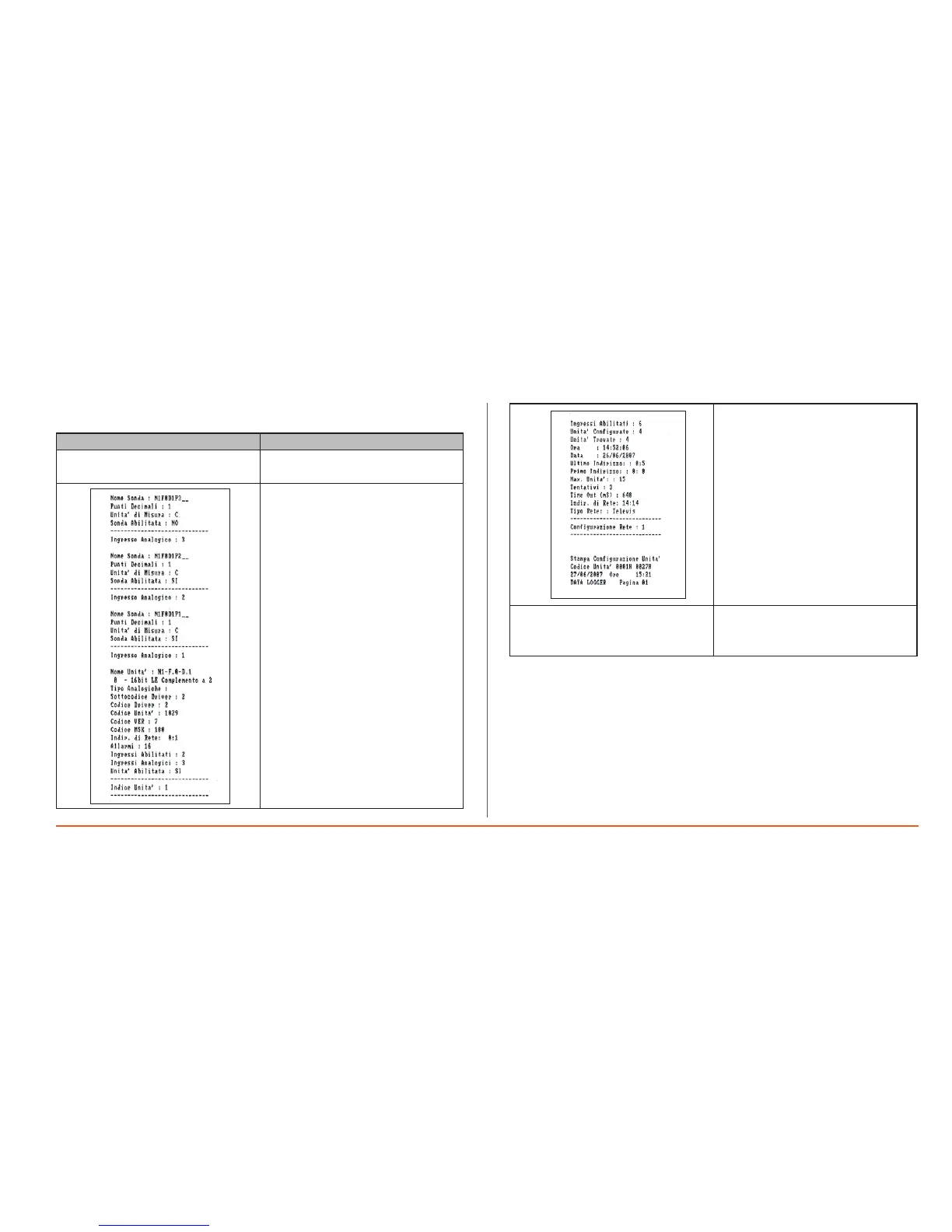

6.5.4 Example of Print Network 1 Configuration
Example of print Description
Print header
(same as Onboard Resource)
PrintConfigurationisorganised
hierarchicallytomakeiteasierto
understand:
•Network1Configuration(Type,
NetworkAddress,UnitsFound/
Configured,InputsEnabled,etc.)
-Unit1Index(unitenabledYES/
NO,AnalogueInputs/Enabled),
Alarms,NetworkAddresses,
MSK/VERcodes,etc.)
•AnalogueInput1(Probe
EnabledYES/NO/UM
decimalpoints,etc.)
•AnalogueInput2
•AnalogueInput3
-UnitIndex2
•Analogueinput1
•AnalogueInput2
Etc.
End of print
Attheendthefollowingmessageappears
End of print
6.5.5 Legibility on thermal paper
N.B.: when the paper length reaches 210mm (the length of an A4 sheet), the
printerinsertsapagebreaksotheprintcanbephotocopiedtoasheetofA4and
filed.Werecommendyouphotocopyalldataprintedifyouwanttoretainacopy
foryourrecords;dataprintedonthermalpaperwillgraduallybecomeillegible.
