Platform Install/Operation EEC-0049 V1.1
Platform Operation

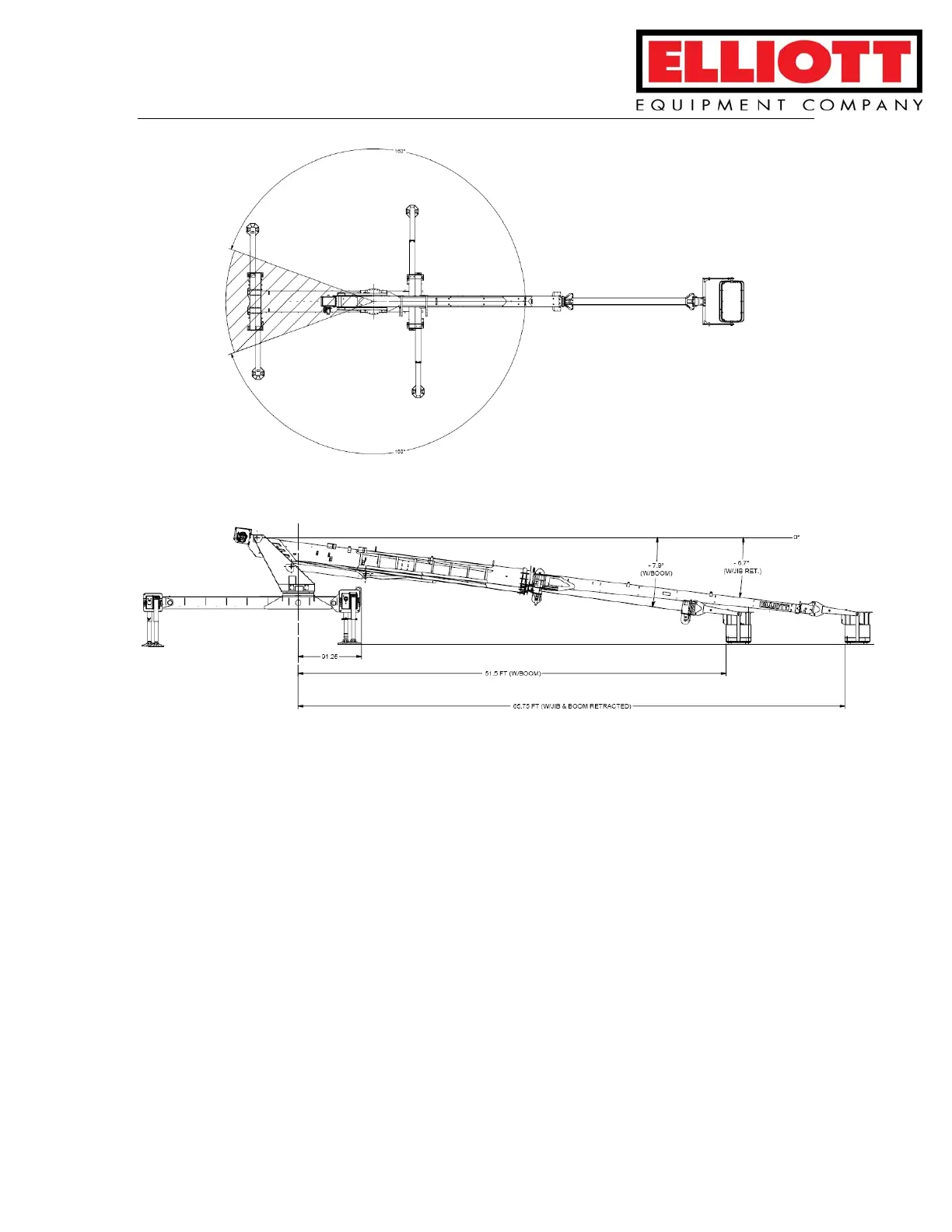

Figure 2: Platform location on ground
Figure 3: Platform ground location
RIGGING PLATFORM ASSEMBLY TO THE BOOM HEAD
A. Set the platform at a 51.5 ft radius from the truck center of rotation as shown
in Figure 3.
B. Raise the platform arm to its maximum angle; refer to the platform operation
label.
C. Lower the boom to negative 7.9 degrees on LMI display
D. Set the adaptor on top of boom head lower plate, insert and secure vertical
pins
