4
DM-R2170-0002A
www.omnexcontrols.com
call toll free: 1-800-663-8806
The ORIGA T2300 / R2170 / D180 / D160 is a portable, long range, programmable radio remote control sys-
tem. Designed as a compact and easy-to-use product, this member of the ORIGA family puts complete con-
trol of your crane where it’s needed most, with the operator. It’s robust, easy to install and has complete self-
diagnostics. This system can be a simple cable replacement or add intelligence to make it a total control
package. It’s a radio, a PLC and a valve driver all in one.
The ORIGA T2300 / R2170 / D180 / D160 system uses Frequency Hopping Spread Spectrum (FHSS) tech-
nology. FHSS devices concentrate their full power into a very narrow signal that randomly hops from fre-
quency to frequency within a designated band. This transmission pattern, along with CRC-16 error-checking
techniques, enables signals to overcome interference that commonly affects licensed radios.
The R2170 receiver is designed to be powered from a 12VDC or 24VDC system. The R2170 is a radio re-
ceiver that takes commands from an OMNEX wireless transmitter and translates the commands into CANbus
or 485 protocol messages. The R2170 receiver may also be configured as a CANbus bridge.
The D180 Expansion Unit has up to fourteen current-control, PWM, or voltage outputs, or a combination of
these types.
The D160 Expansion Unit has up to nineteen digital I/O channels, four of which may be configured as propor-
tional PWM or voltage output signals.
The T2300 transmitter comes with up to sixteen proportional and sixteen digital controls. The T2300 can ac-
commodate up to eight single axis paddles, eight three-position switches and a re-settable E-Stop. A unique
ID code is used by each T2300 to ensure that no two systems will conflict on a job site.
STOP
Power/Calibration
switch
E-Stop
Switches 2 - 8
E-Stop LED
Link LED
Battery/
Pendant LED
Paddles 1 - 8
Pendant connector

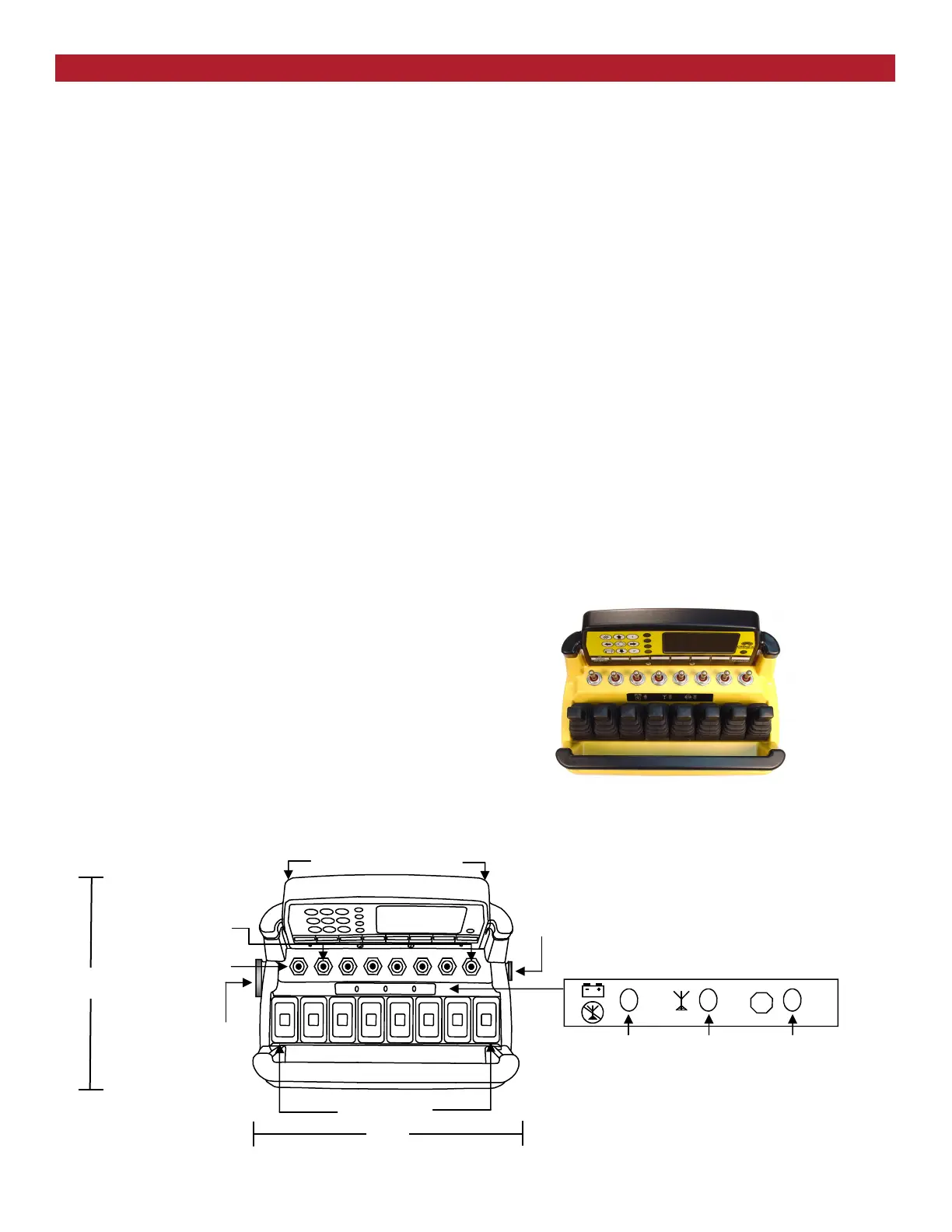

T2300 Dimensions and Controls
9.5”
6.0”
Features
• FCC, ISC, CE approved
• License free
• 900 foot range @ 2.4 GHz
• Compact / weatherproof / ergonomic
• Simple “wire-and-use” installation
• Resilient to impact and shock
• Available with paddles and/or joysticks for propor-
tional control
• Available with an optional pendant cable
• Factory configurable for all custom applications.
T2300 Transmitter
System Overview
LCD Screen and Controls
