Elliott Digger Derrick - Diagnostics-D160 Expansion Module

18
DM-R2170-0002A
www.omnexcontrols.com
call toll free: 1-800-663-8806
Light Legend
Solid
Slow
Flash
Fast
Flash
Red
Light
Green
Light
Alternating Red
& Green Light
Yellow
Light

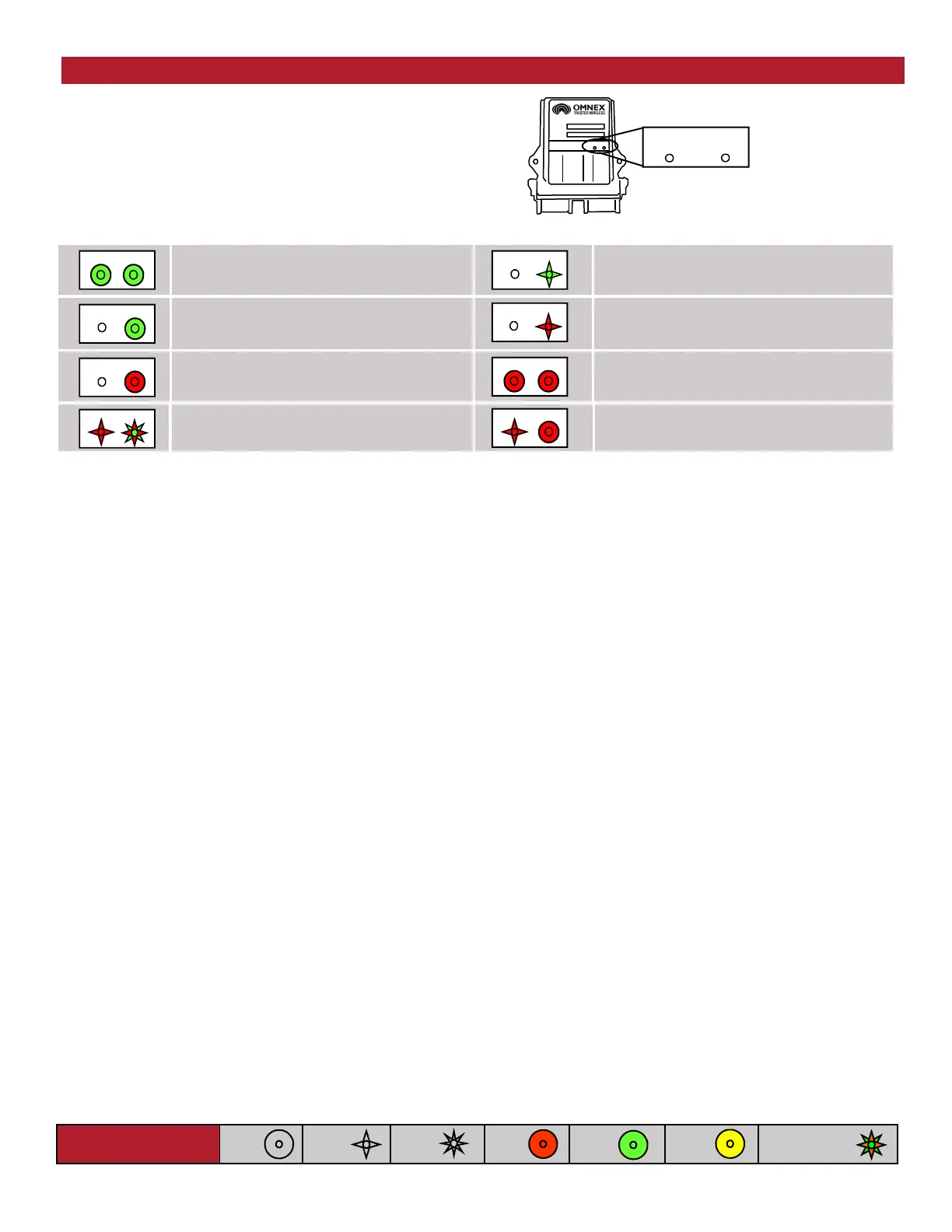

Status Indicator
Indicator lights for the D160 Expansion Module
Diagnostics - D160 Expansion Module
FA STA
STATUS
FUNCTION/
FAULT
Module is operating properly with a function
on
Low battery condition detected (refer to
R160 diagnostic page for possible solution)
Module is operating properly with a function
off
Fuse blown (refer to R160 diagnostic page
for possible solution)
Module has an unrecoverable fault,
return for service
There is a short to ground/over current
(refer to R160 diagnostic page for possible
solution)
The module is powered incorrectly (refer to
R160 diagnostic page for possible solution)
There is a short to supply (refer to R160
diagnostic page for possible solution)
FAULT
STATUS
FAULT
STATUS
FAULT
STATUS
FAULT
STATUS
FAULT
STATUS
FAULT
STATUS
FAULT
STATUS
FAULT
STATUS
