Digger Derrick Op. Controls Sitting EEC-0172 V1.0
Operating Controls-Digger
Derrick
OPERATING CONTROLS (Seated)
Boom Controls
Power Take-Off (PTO)
The PTO switch is located in the truck carrier cab. Refer to truck manuals for
operating instructions. The PTO switch must be engaged to provide power to crane
functions. Refer to truck manuals for operating instructions.
CAUTION: Driving truck with the PTO switch engaged may damage hydraulic pump.

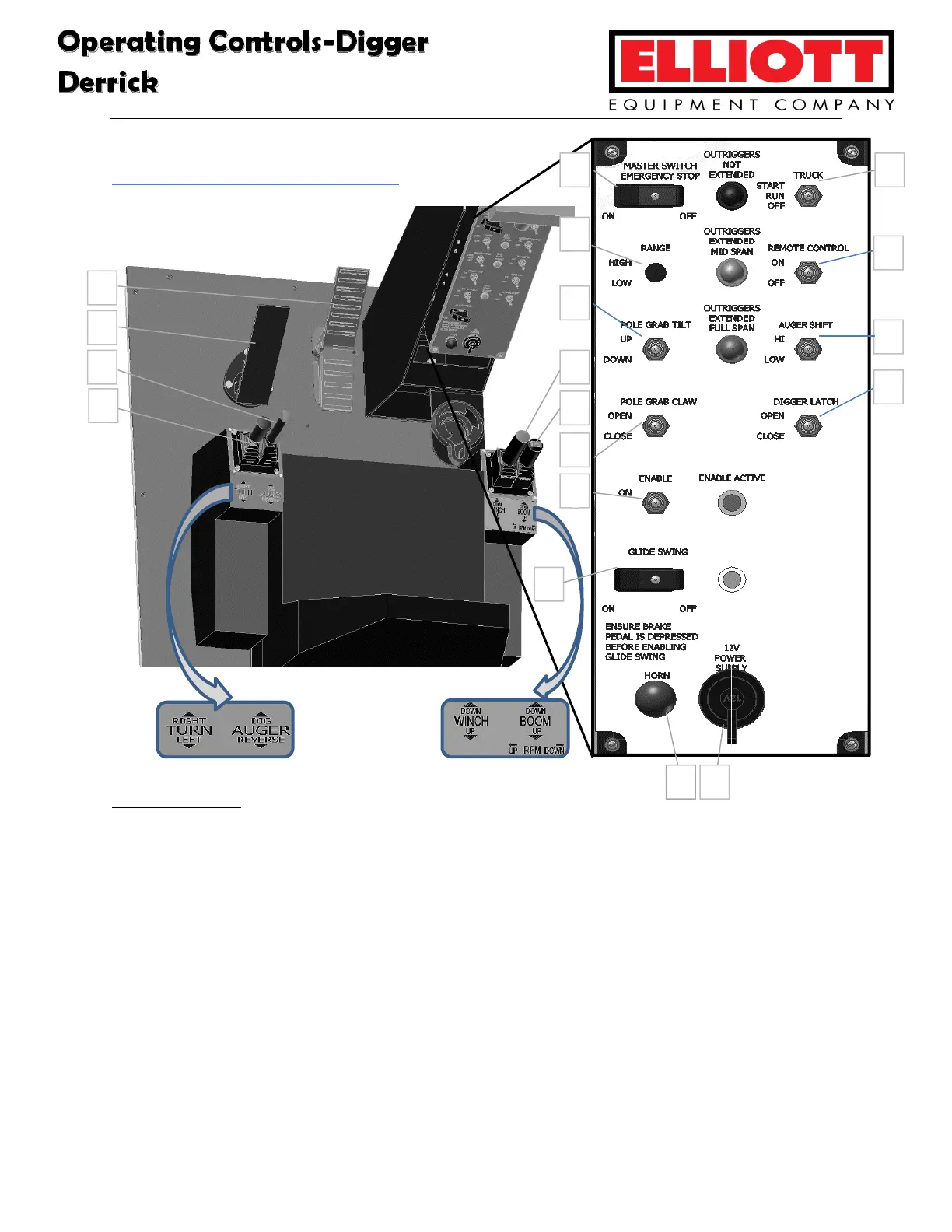

A. Swing Control Joystick
Push forward-“RIGHT” position-Turret swings right - Clockwise
Pull back-“LEFT” position – Turret swings left – Counterclockwise
A
B
C
D
E
F
G
H
J
I
K
L
M
N
P
Q R
O
To Next Page
