23
DM-R2170-0002A
www.omnexcontrols.com
call toll free: 1-800-663-8806
Part OMNEX Part Number Description
Batteries B0012 4 x “C” alkaline
Fuse F0055 36V Bi-directional, Bussman ATM-7.5
Shoulder Strap FMEC-2709-01 T300 Tear-away shoulder strap
Output Cable R170 Output Cable, Generic
Pendant Cable
ACAB-2455-01 Cable, 10m
ACAB-2455-02 Cable, 8m
ACAB-2710-01 Cable, 4-12ft
Connector Kit AKIT-2337-01 Includes Deutsch socket connectors, wedges, pins and sealing plugs
Bipolar Diode Kit AKIT-2492-01 Motorola P6KE36CA
ACAB– 2727-01

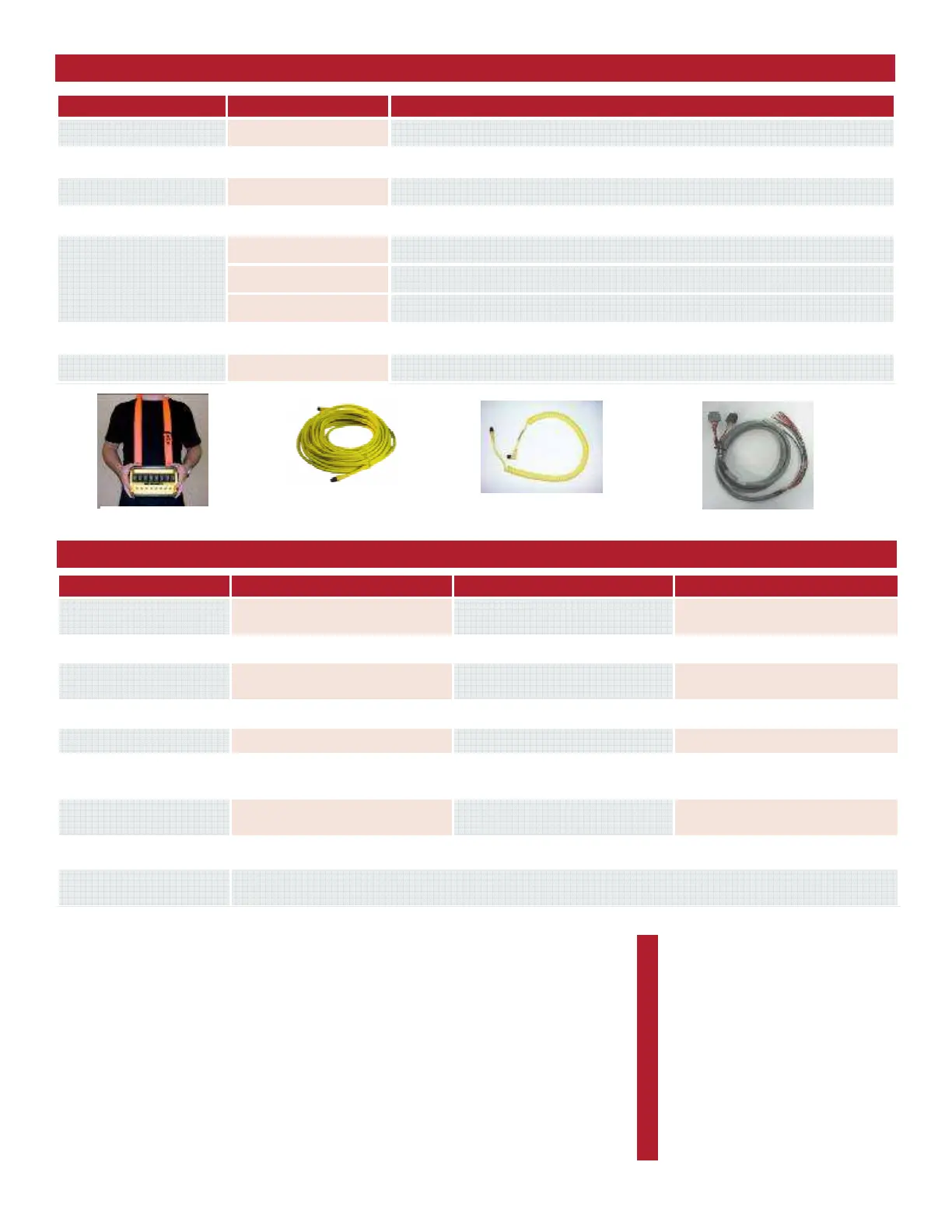

Parts & Accessories
Pendant Cable
R170 Output Cable
Pendant Coil
Shoulder Strap
D160/D180 Module R2170 Receiver T2300 Transmitter
Size
5.1” x 4.7” x 1.4”
(130mm x 119mm x 36mm)
5.1” x 4.7” x 1.4”
(130mm x 119mm x 36mm)
9.5" x 6.0" x 5.0"
(240mm x 152mm x 127mm)
Weight 0.65lbs (0.295kg) 0.65lbs (0.295kg) 3.5 lbs (incl. batteries) (1.2kg)
Construction
High impact plastic, weather-
proof
High impact plastic, weather-
proof
High impact, low temperature
plastic, weatherproof
Input Power
+9V to 30VDC +9V to 30VDC 4C alkaline batteries
Battery Life N/A N/A 500 hours (continuous use)
Operating
Temperature Range
-40F to 158F (-40C to 70C) -40F to 158F (-40C to 70C) -40F to 140F (-40C to 60C)
Outputs
3A (max) each (sourcing),
10A (max) each (combined)
N/A N/A
Antenna N/A External Internal
Approvals
USA- FCC part 15.247 Canada- ISC RSS 210 Issue 6, Sept. Europe- EN 440
Australia- C-Tick
Specifications
FCC Rules and Compliance
This device complies with Part 15
of the FCC Rules. Operation is
subject to the following two condi-
tions: (1) This device may not
cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause unde-
sired operation.
FCC Part 15.247
ISC RSS 210 Issue 6, Sept.
2005
Warranty
OMNEX Control Systems ULC warrants to the original purchaser that the OM-
NEX products are free from defects in materials and workmanship under normal
use and service for a period of ONE YEAR, parts (EXCLUDING: SWITCHES,
CRYSTALS, OR PARTS SUBJECT TO UNAUTHORIZED REPAIR OR MODIFI-
CATION) and labor from the date of delivery as evidenced by a copy of the
receipt. OMNEX's entire liability and your exclusive remedy shall be, at OM-
NEX's option, either the (a) repair or (b) replacement of the OMNEX product
which is returned within the warranty period to OMNEX freight collect by the
OMNEX APPROVED carrier with a copy of the purchase receipt and with the
return authorization of OMNEX. If failure has resulted from accident, abuse or
misapplication, OMNEX shall have no responsibility to repair or replace the
product under warranty. In no event shall OMNEX be responsible for incidental
or consequential damage caused by defects in its products, whether such dam-
age occurs or is discovered before or after replacement or repair and whether or
not such damage is caused by the negligence of OMNEX Control Systems ULC.
OMNEX Control Systems ULC
74-1833 Coast Meridian Road
Port Coquitlam, BC, Canada
V3C 6G5
Tel: 604-944-9247
Fax: 604-944-9267
Toll Free: 1-800-663-8806
www.omnexcontrols.com
