5.3 Installation positions
The variable displacement axial piston pump V60N can be installed in any installation position.
Observe the truck manufacturer's specifications if installing the pump directly on a truck power take-off.
A support is required for tandem pumps or two hydraulic pumps mounted in series. The following points must be observed:

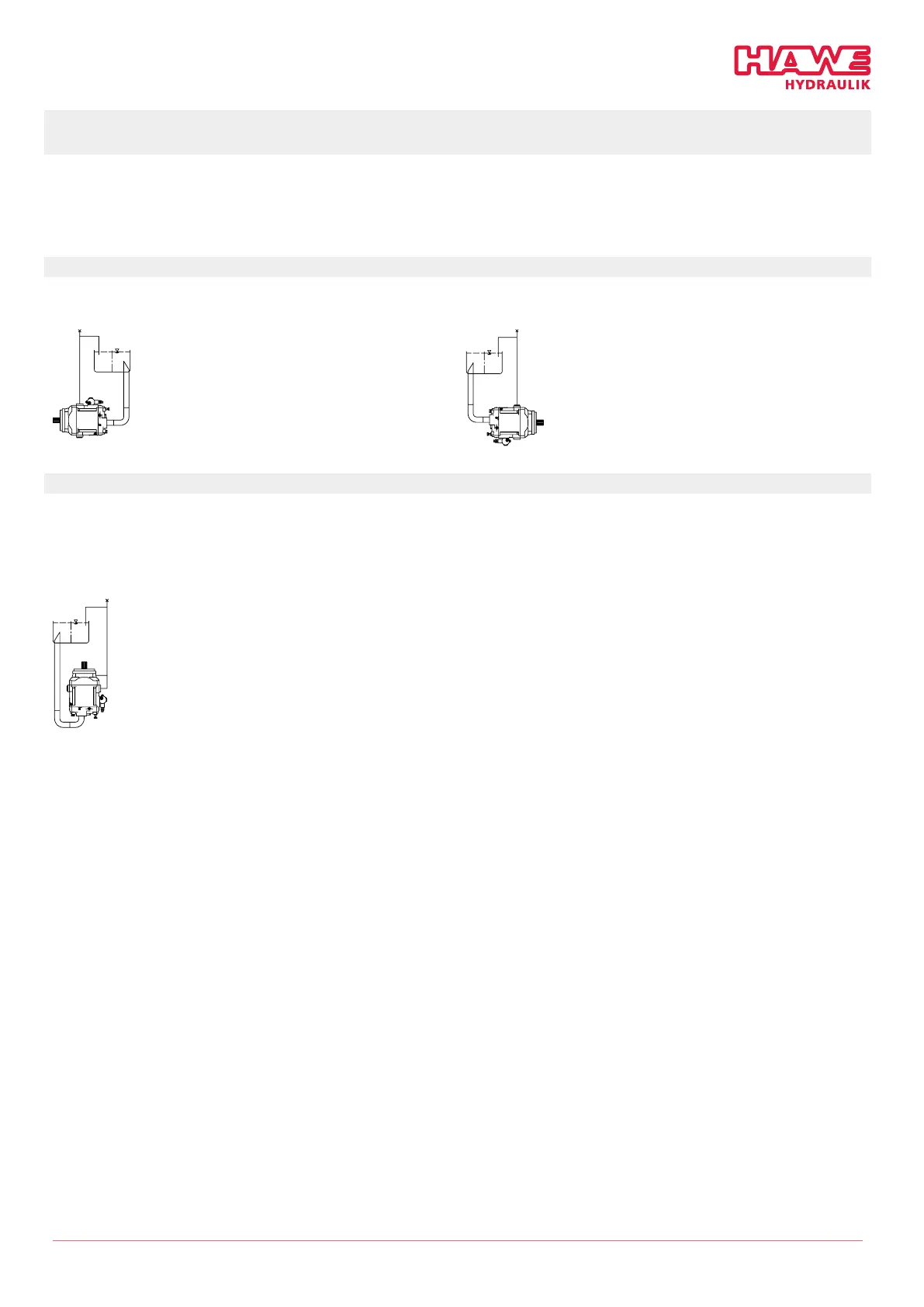

Horizontal installation: (pump below the min. fill level)
For horizontal installation, use the uppermost drain port.
Vertical installation: (pump below the min. fill level)
Mount the pump so that the pump mounting flange is facing upwards. Only pumps with mounting flanges of type SAE-B2, SAE-B and
SAE-C are approved for vertical installation. For vertical installation, use the uppermost drain port. Also connect the G 1/4" bleeding
port on the pump flange. Take appropriate measures to ensure continuous bleeding of this line (line routing/bleeding).
For installation with the pump flange facing downwards, please contact HAWE Hydraulik.
