40 10-2014-2.1 - D 7960 N - V60N www.hawe.de | 2015

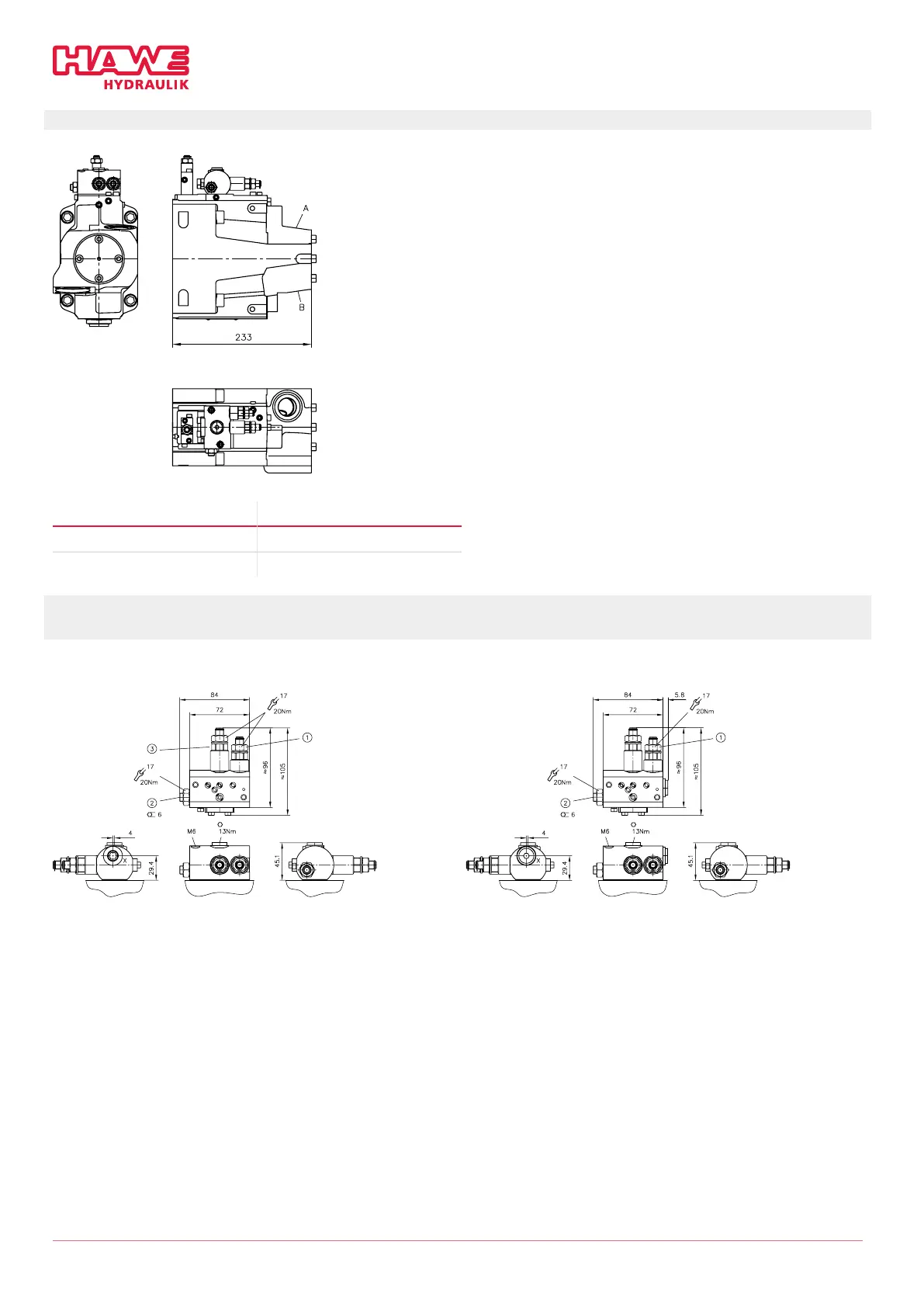

Housing version -3 (radial ports)
Rotation direction clockwise Rotation direction anti-clockwise
A = pressure port A = suction port
B = suction port B = pressure port
4.2 Controllers and intermediate plates
Coding LSNR, LSNRT, NXR Coding NR
1
Pressure limitation
2
Dynamic throttle
3
Differential pressure Sp (stand-by pressure) (only codings LSNR and
LSNRT)
1
Pressure limitation
2
Dynamic throttle
Port X (ISO 228/1): G 1/4
LS signal port, order reference for adapter for UNF thread 79.93 245
Adjustment range for < and ? restricted by retaining ring
