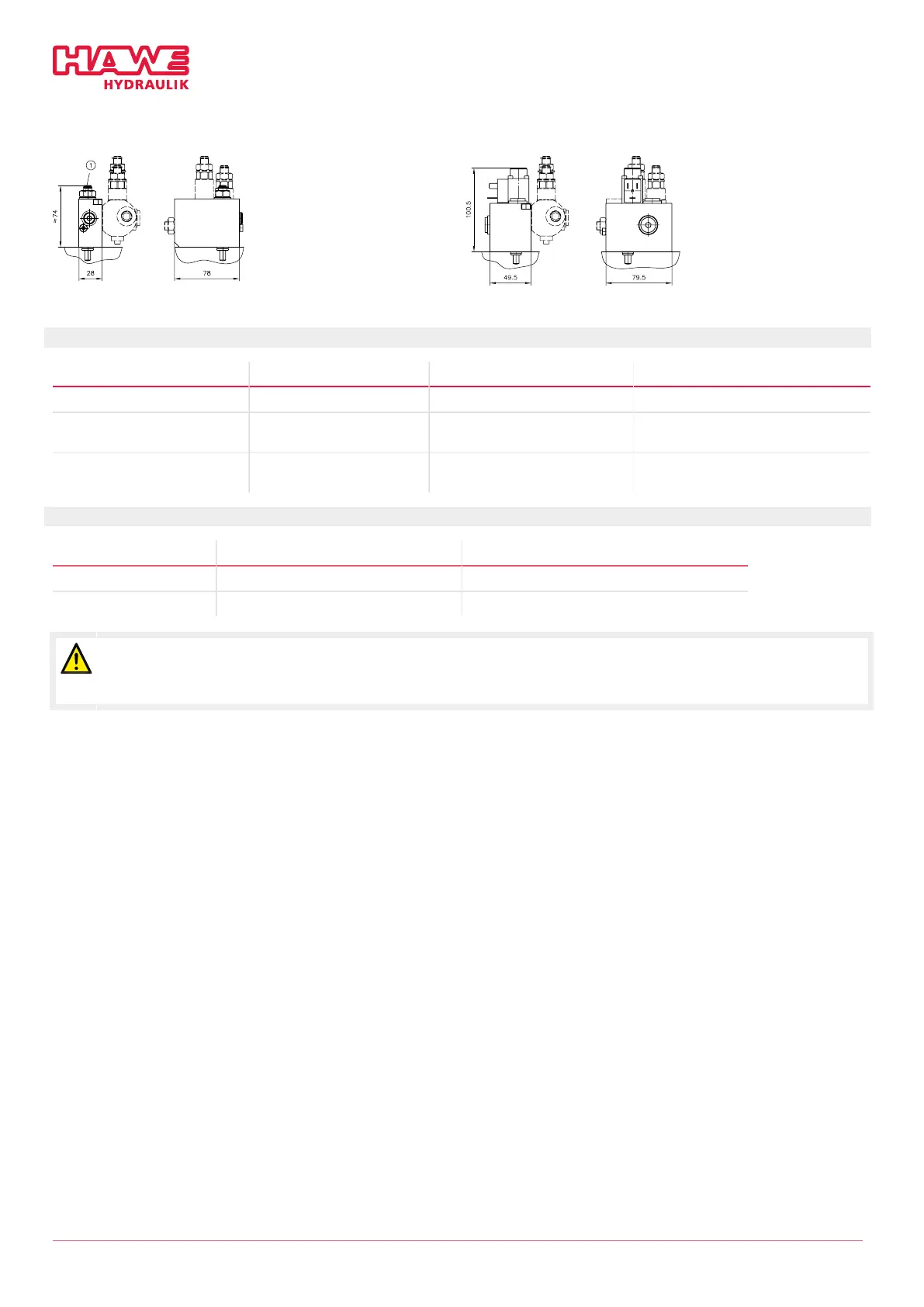

42 10-2014-2.1 - D 7960 N - V60N www.hawe.de | 2015
Coding /ZL
Intermediate plates version
Coding /ZV, /ZV1
1
Torque setting
Pressure adjustment
Pressure range (bar)
Δp (bar) /revolution
Default pressure setting (bar)
Pressure limitation 20 ... 400 approx. 50 300
Differential pressure Δp
(only type LSNR)
20 ... 55 approx. 10 27
Differential pressure Δp
(only type QNR)
20 ... 55 approx. 10 20
Torque setting
ΔM (Nm) /revolution
Default torque setting (Nm)
Power controller /ZL Approx. 190 200
Power controller /L Approx. 190 700
Caution
Risk of injury on overloading components due to incorrect pressure settings!
■
Always monitor the pressure gauge when setting or changing the pressure.
