Outrigger Controls E160 EEC-0037 V1.1

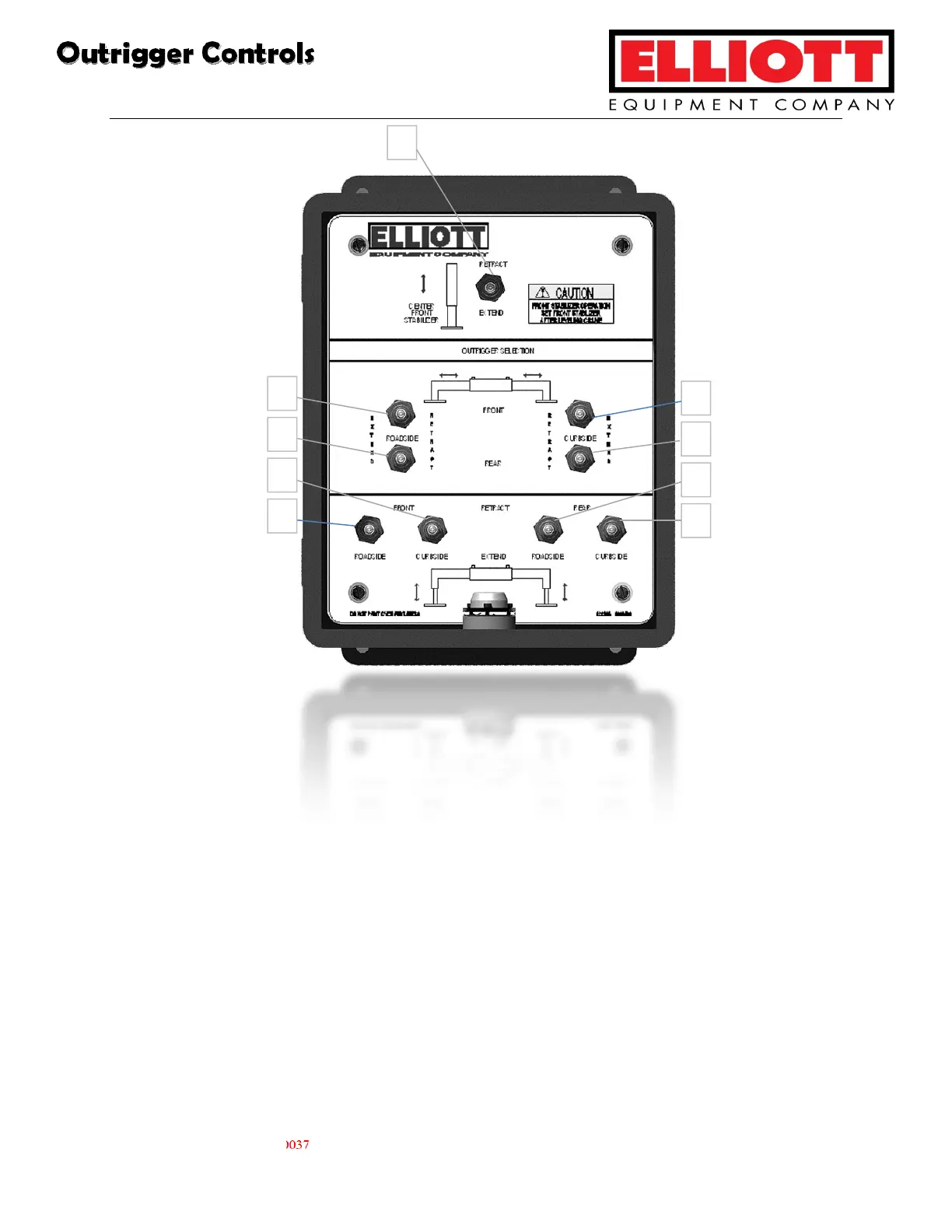

Outrigger Controls
Note: When deploying outriggers, always set the beams to full- or mid-span prior to
lowering the outrigger jacks.
A. Right Front Outrigger Jack Switch-Activate switch “UP” or ”DOWN” to
raise/lower right front outrigger jack
B. Left Front Outrigger Jack Switch- Activate switch “UP” or ”DOWN” to
raise/lower left front outrigger jack
C. Right Rear Outrigger Beam Switch- Activate switch “LEFT” or ”RIGHT” to
retract/extend right rear outrigger beam
D. Right Front Outrigger Beam Switch- Activate switch “LEFT” or ”RIGHT” to
retract/extend right front outrigger beam
E. Center Front Stabilizer Switch- Activate switch “UP” or ”DOWN” to raise/lower
center front stabilizer. This stabilizer should always be lowered last and raised
first
F. Left Front Outrigger Beam Switch- Activate switch “LEFT” or ”RIGHT” to
retract/extend left front outrigger beam
D
C
B
A
F
G
H
I
E
