Digger Safety/Operation EEC-0109 V1.2
Digger Safety and
Operation
the hole and allow the flighting to clean itself before continuing the digging
process
OPERATION
System
The digger system consists of:
A two-speed, digger motor
Digger drive gearbox that drives the digger flighting
Stow bracket and lock mechanism with wind-up rope for storing he digger on the
boom
Digger mount assembly and boom transfer mechanism
Digger drive hydraulic circuit with proximity sensors that detect when the digger
drive is stowed
The digger’s controls will be operated from rotation seated controls located on

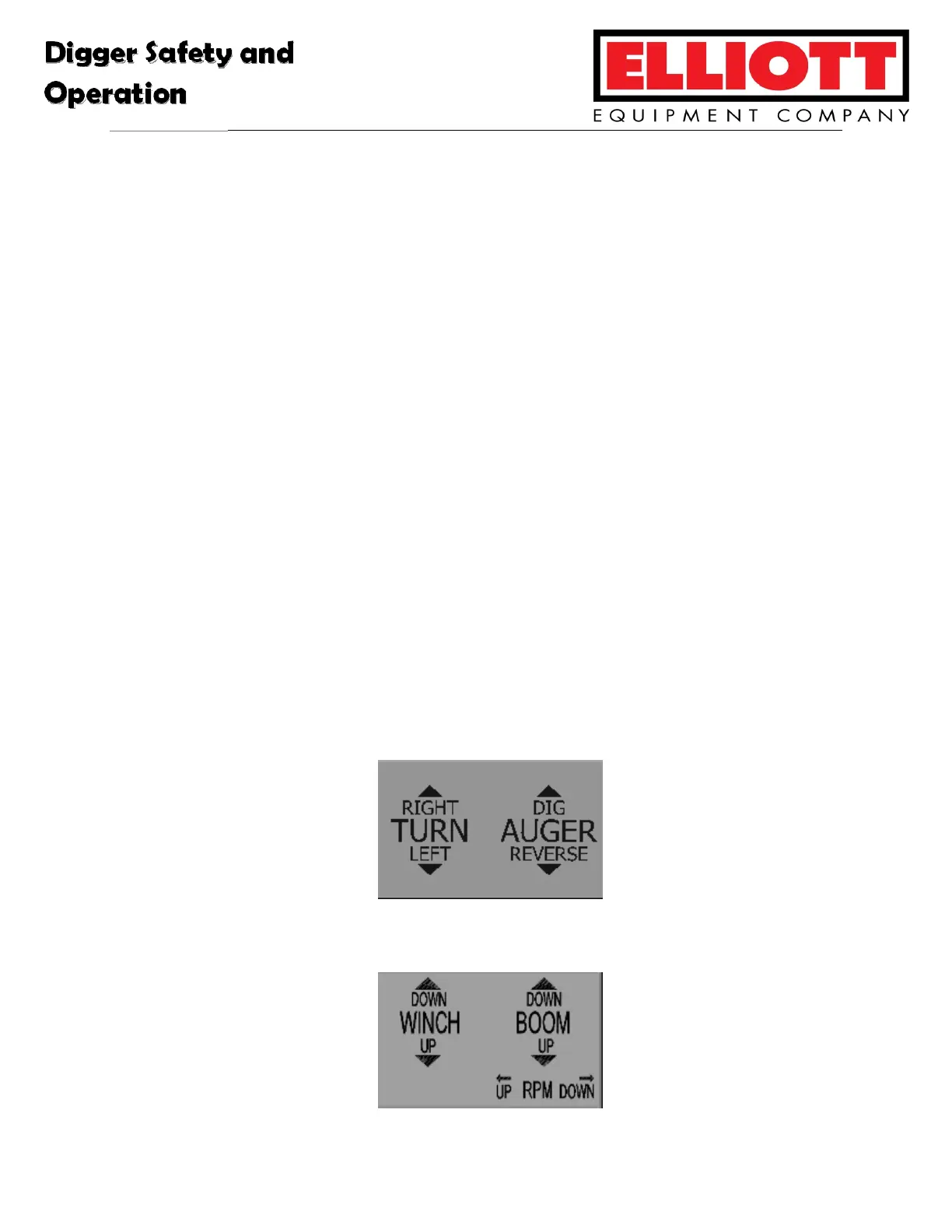

the turret. The following operator control labels are at the controls.
Operator Control Label (Left Control)
Operator Control Label (Right Control)
