Optional Remote Control EEC-0039 V1.1
Remote Control (Optional)
I. Engine Speed Switch
This momentary toggle switch is used to activate the change engine speed between
“HIGH” Idle and “LOW” Idle.

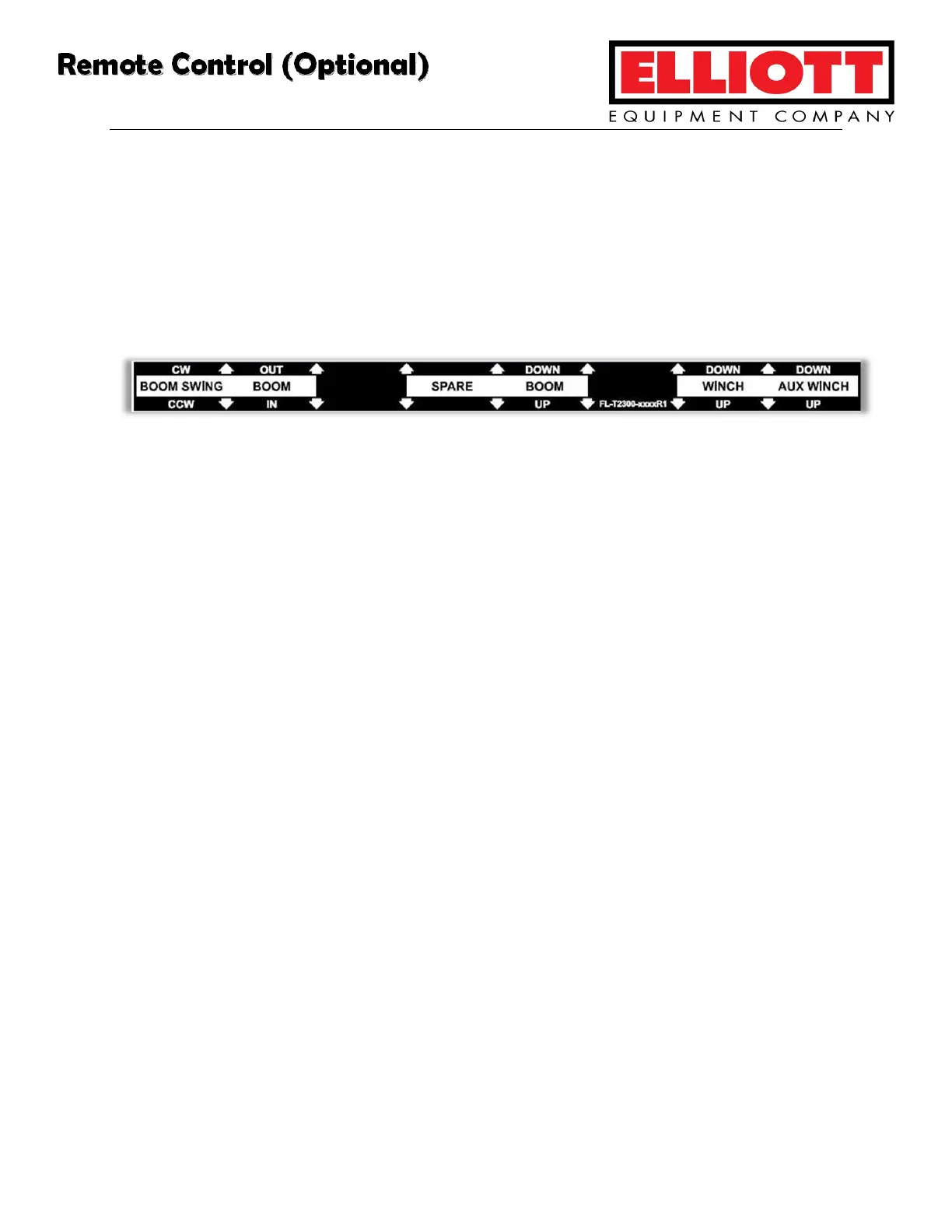

Joystick Labels
J. Boom Swing Joystick
This joystick operates the boom rotation system.
1. Push forward-“CW” position to swing boom clockwise (right).
2. Pull back-“CCW” position to swing boom counter clockwise (left).
K. Boom In/Out Joystick
This joystick operates the boom telescoping system.
1. Push forward -“OUT” position to extend boom.
2. Pull back - “IN” position to retract boom.
L. Spare Joystick
M. Boom Up/Down Joystick
This joystick operates the boom lift cylinder.
1. Push forward -“DOWN” position to lower the boom.
2. Pull back - “IN” position to raise the boom.
N. Winch Joystick
This joystick operates the main winch.
1. Push forward -“DOWN” position to pay out winch line or lower load.
2. Pull back - “UP” position to reel in winch line or raise load.
