3.4 Bars suitable for connection
3.4.1 Charging bars suitable for connection
The following charging bars may be connected to the high voltage genera-
tor POWER CHARGER PC_ _:
System variants PCSC, PCTL, PCRT und PCRM:
• R130A3 / R130A6
• R120 voltage limitation, note Operating Instructions R120
• R23ATR / R23ATR11
• EXR130A3 / EXR130A3L: only for generators of the following types:
PC_ _/ _ _ _ _ _ _ _E, PC_ _/ _ _ _ _ _ _ _D
voltage limitation, see table page 10
System variant PCMT:
• R170A3 voltage limitation, see table page 10
1 Operating switch ON/OFF 7 Service interface
2 System input 90 - 264 V AC 8 Interface 2: Field bus
3 System input 24 V DC 9 High voltage output:
4 Ground terminal Connection of the charging bar.
5 Analog interface 10 High voltage cable
6 Interface 1: Field bus 11 Charging bar

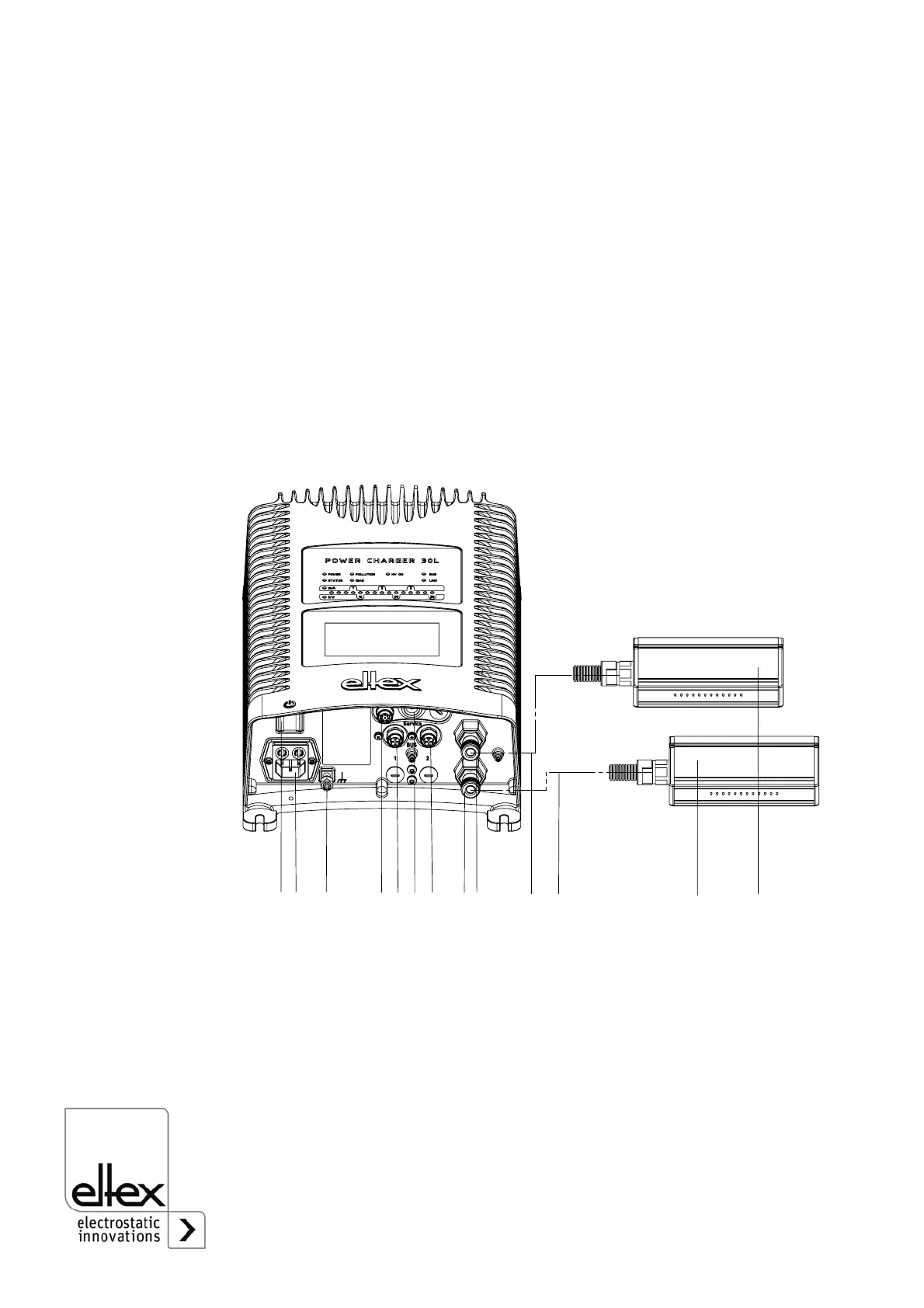

Fig. 7:
Installing the
generator and the
charging bars
Z-116035by_3













