3. Installation
3.1 Assembly of the high voltage generator
The unit is designed for wall mounting. Attach the unit using the assembly/
mounting brackets supplied with the unit. When mounting the unit make
sure that the operating elements and the connector terminals remain
accessible and that control of the unit is not impaired.
The site of installation must be dry and free of dust, if possible. Air circula-
tion must not be obstructed.

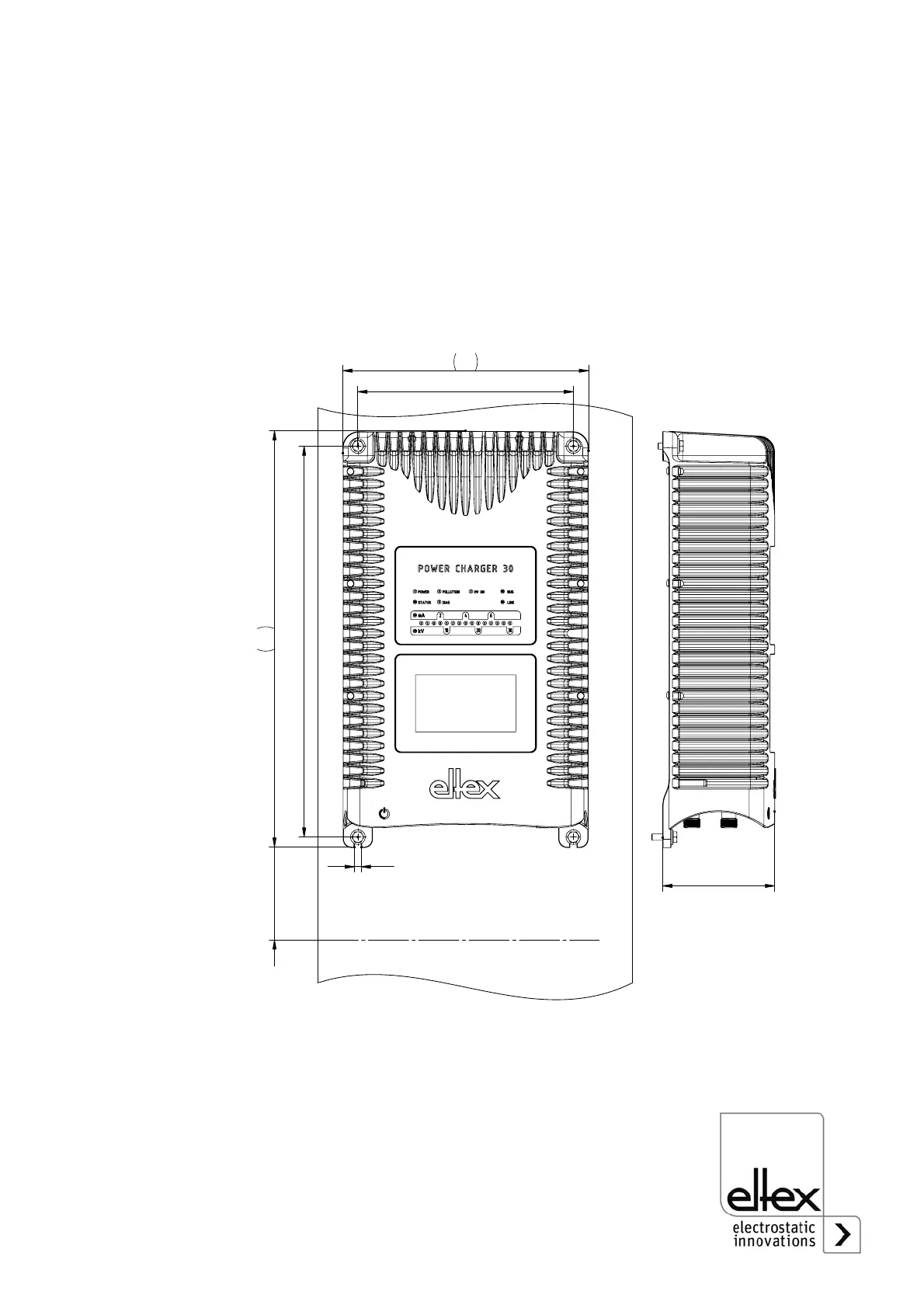

Fig. 5:
Installation of the
high voltage
generator,
vertical
Z-116036dy_2
"
