22 BA-en-3041-2008_PC
3.4.2 Discharging bars suitable for connection
The following charging bars may be connected to the high voltage genera-
tor POWER CHARGER PC_ _:
• Variant "A" (not for Performance Level applications)
R50
EXR5C
• Variant "C"
R60
R60L
• Variant "P"
RG52C
3.5 Connecting the charging bar to the high voltage generator
Warning!
Electric shock hazard!
Work may be carried out only if:
• the supply voltage to the generator has been disconnected
• the machine is at a standstill because the bars pick up charges if the
material web is running.
Method:
Connect the bars via the prefabricated high voltage cable. Push the high
voltage cables up to the stop into the socket connection. Finally, secure
the screwing. Unused high voltage outputs must be closed with the sea-
ling cap.
9 / 9.1 High voltage outputs 10 High voltage cable
9.1 High voltage output shown with sealing cap
Warning!
In applications involving moving bars (e.g. film draw strips), the high vol-
tage cable must be attached such that there is no cable movement near
the connection zone of the power supply unit.

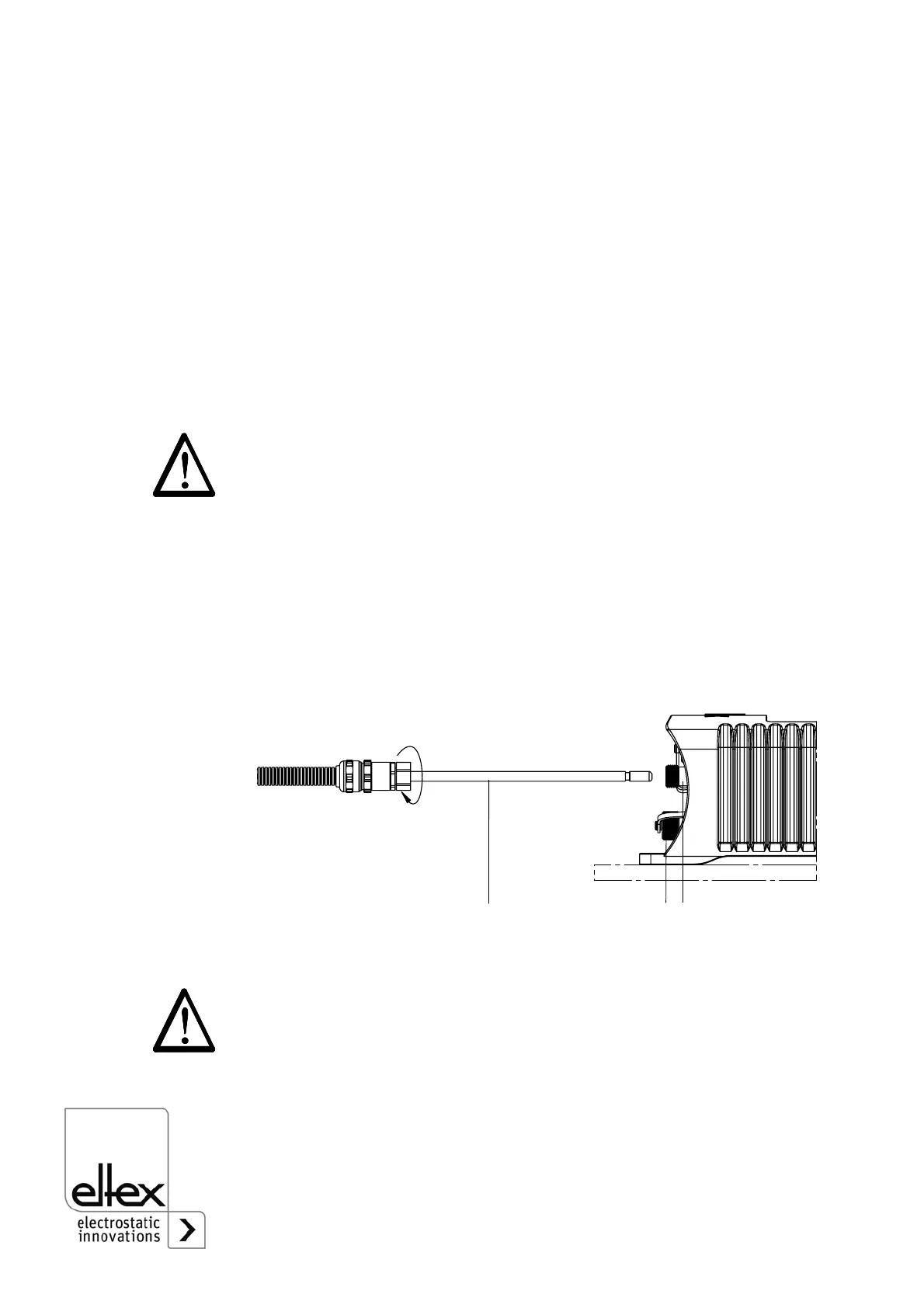

Fig. 10:
Connection of the
high voltage cable
Z-116035by_4
