ELTEX POWER CHARGER PC - Operation; Startup and Function Monitoring

34 BA-en-3041-2008_PC
4. Operation
In all generator variants, the operating status of the device is indicated by
LEDs.
4.1 Startup
Once all the connections and the installation have been correctly made,
the system is operational and the supply voltage can be switched on.

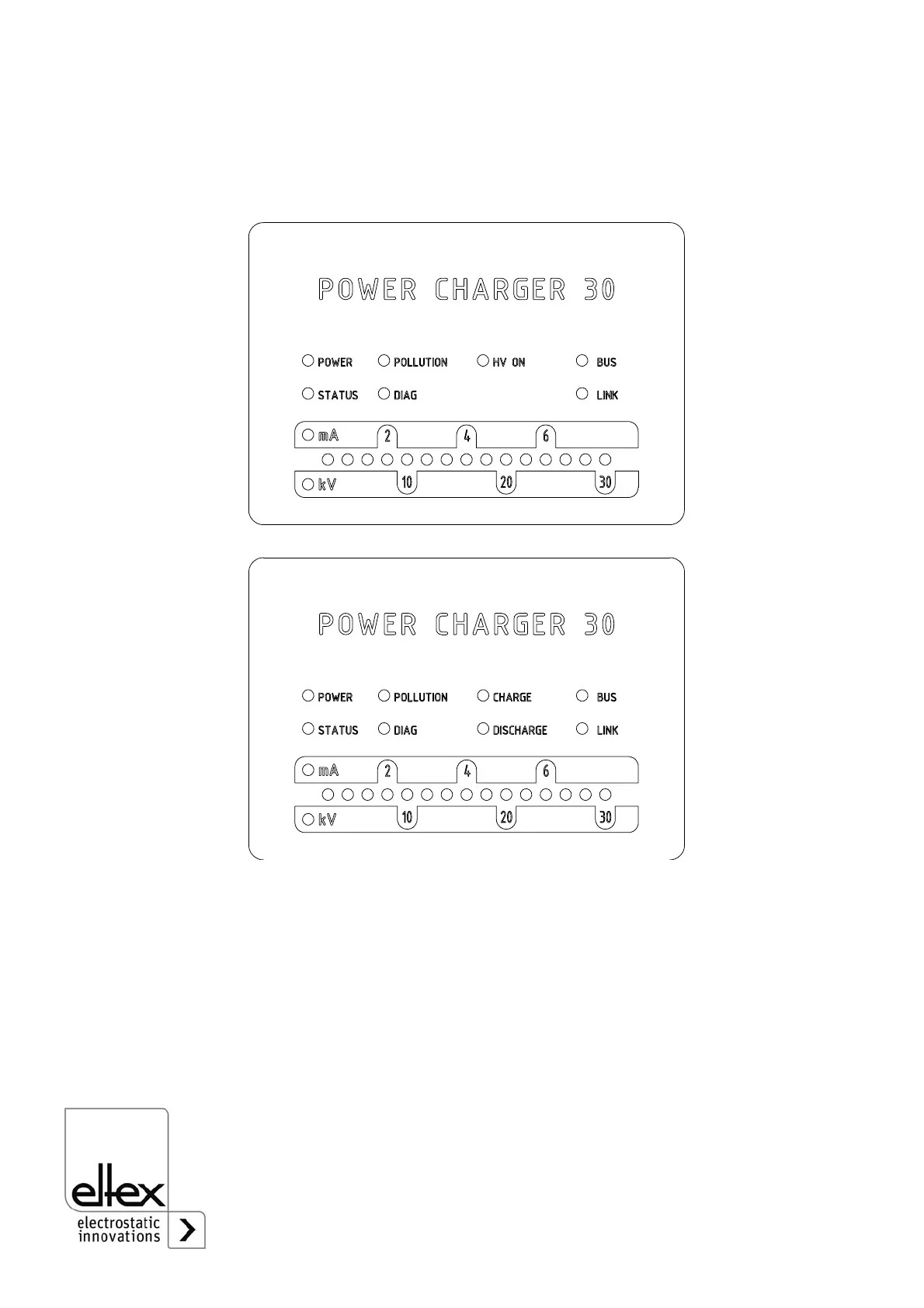

Fig. 18:
Operating status
indicated by
illuminated LED,
shown for variant
PC_ _/X and
PC_ _/P
Z-116036dy_20
Fig. 19:
Operating status
indicated by
illuminated LED,
shown for variant
PC_ _/A and
PC_ _/C (with
active discharge)
Z-116036dy_3
