eMachines D732 - Disassembly Overview

62 Chapter 3
Disassembly Overview
1. See “Removing the Lower Cover” on page 60.

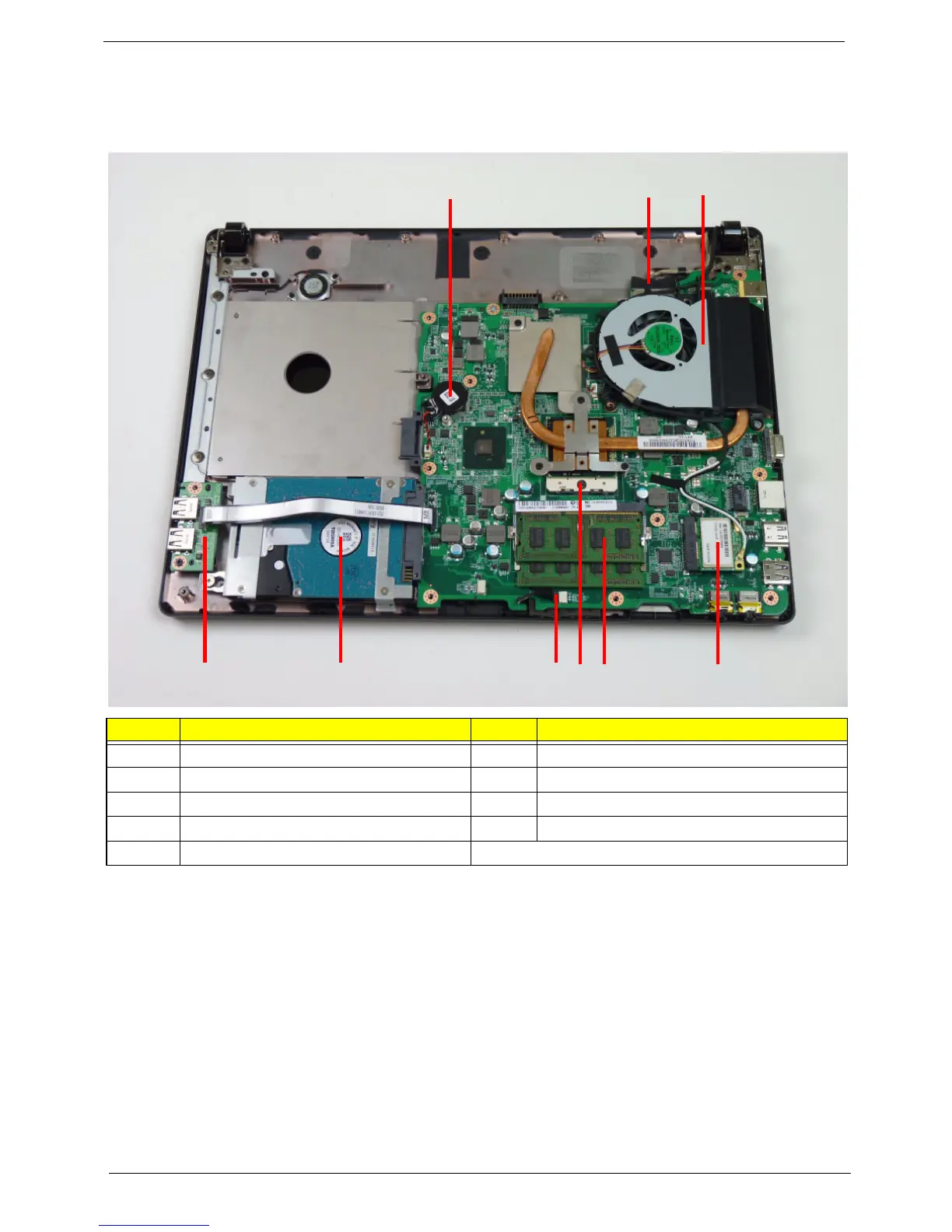

2. This section is an overview of the major components of the main unit.
Item Description Item Description
1 RTC battery 6 CPU
2 LVDS cable 7 Bluetooth cable
3 Thermal module 8 HDD
4 WLAN module 9 USB module
5 DIMM module(s)
7 6 5
4
89
1 2 3
